SRTZ 2500 - RedMax Short Reach Hedge Trimmer (SN: 300605 & Above) (2003-06) 028 - DRIVE UNIT/CUTTING UNIT Parts Diagram

Short Reach Hedge Trimmer

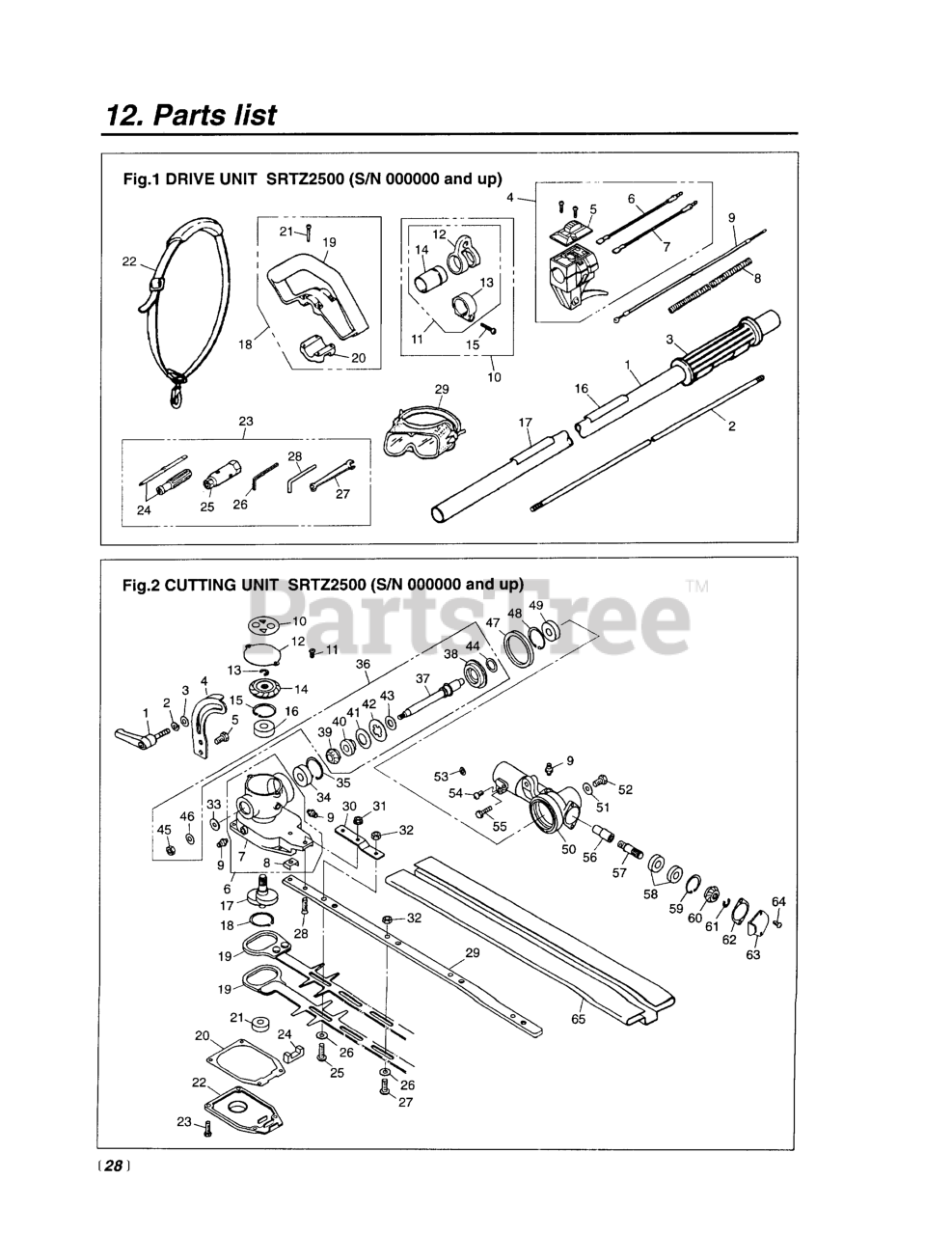

028 - DRIVE UNIT/CUTTING UNIT Parts Diagram

  • Title

1-1

RedMax T307512100

PIPE COMPLETE
(Superseded to 521811501)

$72.99

$

Usually ships in 3-10 days

0

1-2

RedMax T307512210

SHAFT
(Superseded to 521811601)

$40.99

$

Usually ships in 3-10 days

0

1-3

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$8.93

$

Usually ships in 3-10 days

0

1-4

RedMax T306512201

LEVER COMP (RPLS. T3065-12200)
(Superseded to 521529901)

$

$

Not available

1-5

RedMax 61101441002

COVER (USE 848-8RA-0340)

$

$

Not available

1-6

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$7.99

$

In Stock, only 1 left!

0

1-7

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$8.99

$

Usually ships in 3-10 days

0

1-8

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

1-9

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

1-10

RedMax 642017300

HANGER ASSEMBLY
(Superseded to 521466301)

$

$

Not available

1-11

RedMax 642017400

HANGER COMPLETE
(Superseded to 521466401)

$14.99

$

Usually ships in 3-10 days

0

1-12

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

1-13

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

1-14

RedMax 642017410

SLEEVE
(Superseded to 515626001)

$2.49

$

Usually ships in 3-10 days

0

1-15

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$3.99

$

Usually ships in 3-10 days

0

1-16

RedMax T307512511

NAMEPLATE

$

$

Not available

1-17

RedMax T307512550

LABEL (CAUTION)

$1.85

$

Usually ships in 3-10 days

0

1-18

RedMax 642014100

HANDLE ASSEMBLY
(Superseded to 521465701)

$

$

Not available

1-19

RedMax 642014311

HANDLE
(Superseded to 515625501)

$

$

Not available

1-20

RedMax 642014320

CLAMP

$

$

Not available

1-21

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

1-22

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

Usually ships in 3-10 days

0

1-23

RedMax T300291000

TOOL SET

$15.97

$

Usually ships in 3-10 days

0

1-24

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

1-25

RedMax T300291310

SOCKET
(Superseded to 521804801)

$

$

Not available

1-26

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

1-27

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$7.49

$

In Stock, Qty 10

0

1-28

RedMax 354091110

BAR
(Superseded to 521176101)

$4.99

$

Usually ships in 3-10 days

0

1-29

RedMax T300291190

GOGGLE
(Superseded to 510989401)

$

$

Not available

2-1

RedMax 659813110

6598-13110-10

$

$

Not available

2-2

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

2-3

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

Usually ships in 3-10 days

0

2-4

RedMax 678213141

PLATE (RPLS-13140)
(Superseded to 521501501)

$

$

Not available

2-5

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.99

$

Usually ships in 3-10 days

0

2-6

RedMax 678213200

CASING (RPLS -13210)
(Superseded to 521501601)

$148.99

$

In Stock, only 1 left!

0

2-7

CASING A

$

$

Not available

2-8

RedMax 678213220

PLATE
(Superseded to 515697101)

$9.99

$

Usually ships in 3-10 days

0

2-9

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

2-10

RedMax T307813250

LABEL
(Superseded to 521811901)

$

$

Not available

2-11

RedMax 026310408

SCREW, M4 X 8
(Superseded to 516108701)

$

$

Not available

2-12

RedMax 659813320

COVER

$2.88

$

Usually ships in 3-10 days

0

2-13

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, Qty 6

0

2-14

RedMax 678213340

GEAR, BEVEL
(Superseded to 515697301)

$53.99

$

In Stock, only 2 left!

0

2-15

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

2-16

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

2-17

RedMax 678213370

CRANKSHAFT
(Superseded to 515697401)

$125.99

$

In Stock, only 1 left!

0

2-18

RedMax 0406402815

RING, SNAP, M28 X 1.5
(Superseded to 516124801)

$3.99

$

In Stock, Qty 6

0

2-19

RedMax T307813410

BLADE, SRT, 24
(Superseded to 521812001)

$159.99

$

In Stock, only 2 left!

0

2-20

RedMax 678213470

GASKET
(Superseded to 515698301)

$8.99

$

In Stock, Qty 10

0

2-21

RedMax 678213430

BEARING
(Superseded to 516130201)

$18.99

$

In Stock, only 1 left!

0

2-22

RedMax 678213441

COVER
(Superseded to 515698001)

$34.99

$

Usually ships in 3-10 days

0

2-23

RedMax 678313450

BOLT (RPLS 6782-13450)
(Superseded to 515700201)

$4.99

$

Usually ships in 3-10 days

0

2-24

RedMax 678213460

FELT
(Superseded to 521502901)

$7.49

$

In Stock, Qty 8

0

2-25

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$7.49

$

In Stock, Qty 11

0

2-26

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$4.99

$

In Stock, Qty 5

0

2-27

RedMax 659813510

SCREW
(Superseded to 515685201)

$6.49

$

In Stock, Qty 7

0

2-28

RedMax 659813530

SCREW, M5 X 20
(Superseded to 515685401)

$6.49

$

In Stock, Qty 8

0

2-29

RedMax T307813540

PLATE, GUIDE
(Superseded to 521812101)

$36.99

$

In Stock, Qty 14

0

2-30

RedMax 678213550

PLATE (RPLS 6780- )
(Superseded to 515698501)

$8.99

$

In Stock, Qty 8

0

2-31

RedMax 678214470

NUT, M5
(Superseded to 505182601)

$4.99

$

Usually ships in 3-10 days

0

2-32

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, Qty 12

0

2-33

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

Usually ships in 3-10 days

0

2-34

RedMax 659813430

BEARING
(Superseded to 515684901)

$17.99

$

Usually ships in 3-10 days

0

2-35

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

2-36

RedMax T400813600

T4008-06010
(Superseded to 521830201)

$169.99

$

In Stock, only 1 left!

0

2-37

SHAFT

$

$

Not available

2-38

GEAR (B)

$

$

Not available

2-39

RedMax T400813630

GEAR (C)
(Superseded to 521830401)

$37.99

$

In Stock, only 1 left!

0

2-40

BOSS

$

$

Not available

2-41

RedMax T400813650

WASHER, SPRING
(Superseded to 521830501)

$6.99

$

Usually ships in 3-10 days

0

2-42

RedMax T400813660

PLATE
(Superseded to 521830601)

$7.49

$

Usually ships in 3-10 days

0

2-43

RedMax T400813670

WASHER
(Superseded to 521830701)

$4.99

$

Usually ships in 3-10 days

0

2-44

RedMax T400813680

WASHER
(Superseded to 521830801)

$

$

Not available

2-45

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.99

$

In Stock, Qty 5

0

2-46

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

2-47

RedMax 659813620

O-RING
(Superseded to 515685801)

$6.49

$

Usually ships in 3-10 days

0

2-48

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

2-49

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

2-50

RedMax 678013710

CASE- B
(Superseded to 521536201)

$

$

Not available

2-51

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

Usually ships in 3-10 days

0

2-52

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.99

$

Usually ships in 3-10 days

0

2-53

RedMax 678213720

WASHER
(Superseded to 515698801)

$2.49

$

In Stock, only 4 left!

0

2-54

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 3 left!

0

2-55

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.99

$

Usually ships in 3-10 days

0

2-56

RedMax 678213810

JOINT (REPLACES T3078-13810)
(Superseded to 515698901)

$27.99

$

Usually ships in 3-10 days

0

2-57

RedMax 659813820

SHAFT, GEAR
(Superseded to 515686101)

$74.99

$

Usually ships in 3-10 days

0

2-58

RedMax 678213830

BEARING
(Superseded to 515699001)

$34.99

$

Usually ships in 3-10 days

0

2-59

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

2-60

RedMax 678213850

GEAR, BEVEL
(Superseded to 515699101)

$37.99

$

In Stock, only 1 left!

0

2-61

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, Qty 6

0

2-62

RedMax 659813860

PACKING
(Superseded to 515686401)

$12.99

$

Usually ships in 3-10 days

0

2-63

RedMax 659813871

COVER

$3.21

$

Usually ships in 3-10 days

0

2-64

RedMax 026310410

SCREW, M4 X 10
(Superseded to 510475001)

$4.99

$

In Stock, Qty 6

0

2-65

RedMax T307813910

COVER, BLADE
(Superseded to 521812201)

$14.99

$

In Stock, only 1 left!

0
