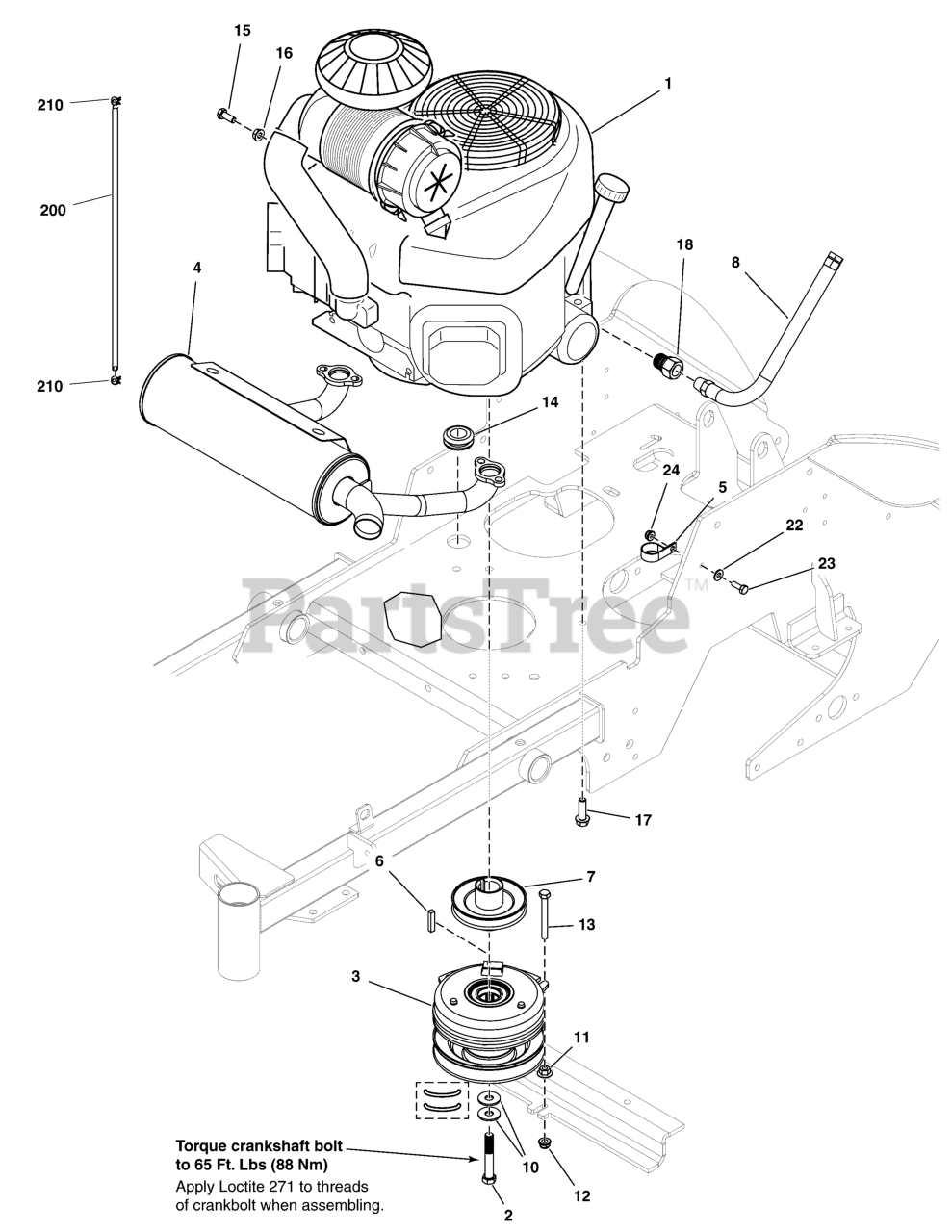

SS 100 (5901800) - Snapper Pro SS100 Series 36" Stand-On Mower, 19hp Kawasaki Engine & PTO Group Parts Diagram

SS100 Series 36" Stand-On Mower, 19hp Kawasaki

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, 19HP, KAWASAKI, FX600V

$

$

Not available

2

Snapper Pro 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm))

$5.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104954

CLUTCH, WARNER, 125 FTLBS - 1.13"
(Superseded to 5104954FS)

$403.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5105197

MUFFLER 15-19HP KAWI
(Superseded to 5105197FS)

$331.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5104883

PULLEY, CRANKSHAFT, 1.1255 ID X 4.00 OD
(Superseded to 5104883FS)

$35.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not an illustrated part.)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

12

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025494

BOLT, M8-1.25 X 16MM GD8.8
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 40 ft-lbs (54 Nm))

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

24

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

200

Snapper Pro 5050831X15P5

HOSE, 1/4" FUEL, 15.50"

$

$

Currently unavailable

210

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0
