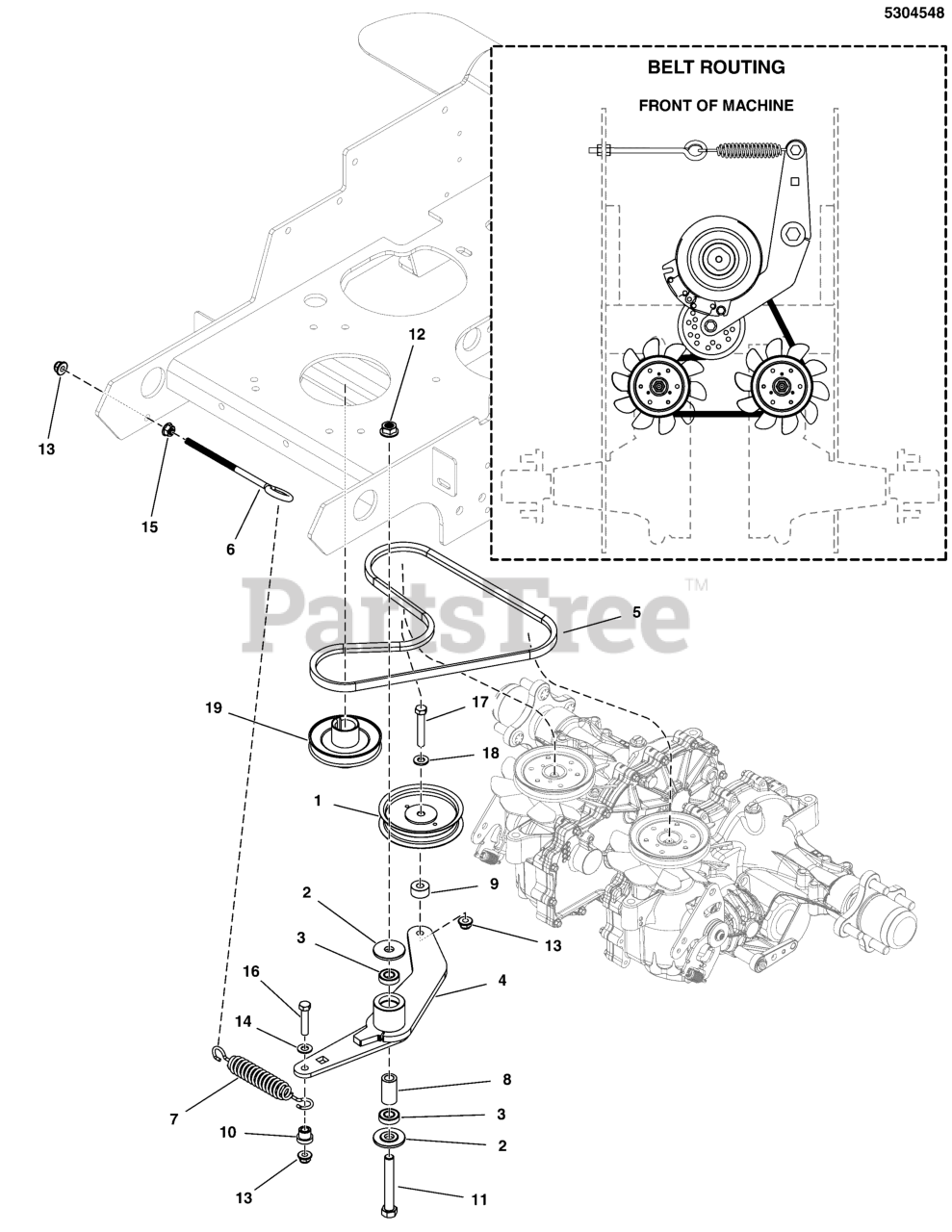

SS 100 (5901800) - Snapper Pro SS100 Series 36" Stand-On Mower, 19hp Kawasaki Transaxle Drive Group Parts Diagram

SS100 Series 36" Stand-On Mower, 19hp Kawasaki

Transaxle Drive Group Parts Diagram

  • Title

1

Snapper Pro 1725408

PULLEY-IDLER 04.00 OD 0.378ID 1.06 W BRG
(Superseded to 1725408SM)

$50.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$8.49

$

In Stock, only 3 left!

0

3

Snapper Pro 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, only 3 left!

0

4

Snapper Pro 5416233AA

WELD, IDLER ARM, PUMP DRIVE - BLK

$

$

Currently unavailable

5

Snapper Pro 5104889

BELT, A-SEC, 50.5"EL, RAW EDGE, COG
(Superseded to 5104889FS)

$36.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$6.49

$

In Stock, only 3 left!

0

7

Snapper Pro 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$36.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$8.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5023257

BUSHING, .38 X .88 X .73
(Superseded to 5023257YP)

$12.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, Qty 5

0

12

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 8

0

13

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 19

0

17

Snapper Pro 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$4.49

$

In Stock, Qty 8

0

19

PULLEY, CRANKSHAFT (SEE ENGINE & PTO GROUP)

$

$

Not available
