SS 100 (5901801) - Snapper Pro SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton Deck Lift Group Parts Diagram

SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton

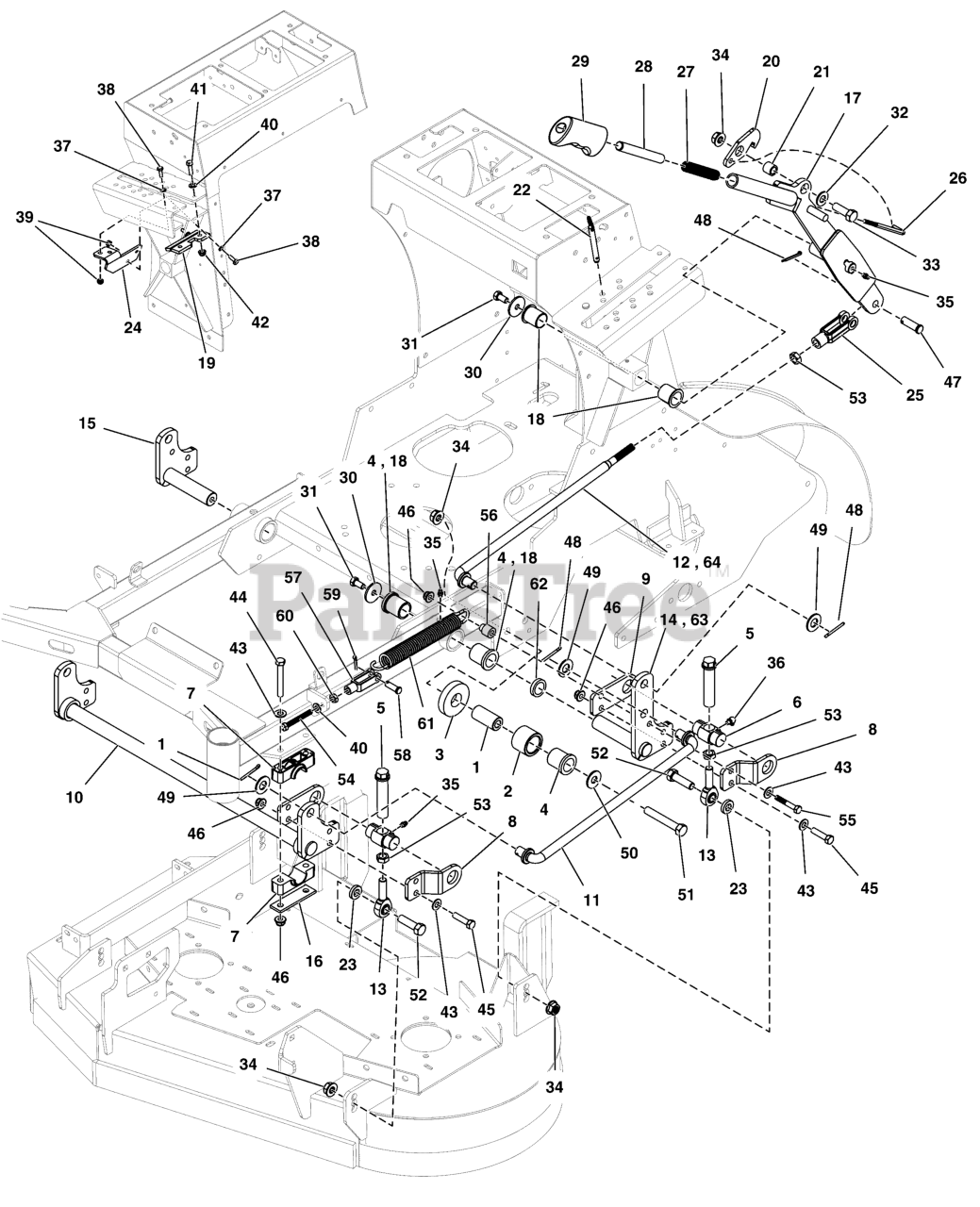

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5100732

SPACER, .52 X 1.00 X 2.09 - SS
(Superseded to 5100732FS)

$28.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5100731

ROLLER, DECK HEIGHT
(Superseded to 5100731FS)

$26.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5061010

WASHER, FRICTION
(Superseded to 5061010FS)

$27.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

Note: Qty: 2 - Models w/ 48" Mower Decks

$9.99

$

In Stock, Qty 15

0

5

Snapper Pro 5109915FS

ADJUSTER, HEIGHT

$7.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5104238

PIVOT, DECK LIFT TRUNION, GREASABLE
(Superseded to 84003302)

$36.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5413899A

BRACKET, OUTER TRUNION MNT - BLK
(Superseded to 84003301)

$17.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5413900A

BRACKET, INNER TRUNION MNT - BLK
(Superseded to 84003300)

$9.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5414255A

WELD, DECK LIFT SHAFT, SRSZ1 - BLK

$118.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104672

ROD, DECK LIFT TIMING, SRSZ1
(Superseded to 5104672FS)

$43.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5104673

ROD, MAIN DECK LIFT, SRSZ1
(Superseded to 5104673FS)

Note: (Models w/ 36" Mower Decks)

$40.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5104267

BALL JOINT, 1/2-20, RH, MALE, METAL RACE
(Superseded to 5104267FS)

$29.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5414258A

WELD, REAR LIFT PIVOT, LH - BLK

Note: (Models w/ 36" Mower Decks)

$65.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5415289A

WELD, REAR LIFT PIVOT, RH - BLK

$59.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5413616A

WELD, DECK LIFT, STAND ON - BLK
(Superseded to 5413616AAFS)

$151.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

Note: Qty: 6 - Models with 48" Mower Decks

$6.49

$

In Stock, Qty 5

0

19

Snapper Pro 5414171A

PLATE, LATCH GUIDE - BLK

$11.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5414040A

PLATE, LATCH, PUSH BUTTON LIFT - BLK
(Superseded to 5414040AAFS)

$6.99

$

In Stock, only 4 left!

0

21

Snapper Pro 5048049

SPACER, .50 X .75 X .66, CZ
(Superseded to 84002461)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5104610

PIN, HITCH, 3/8" DIA X 2.5" EL, CZ
(Superseded to 5104610FS)

$9.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5105392

WASHER, .515 X 1.00 X .25", CZ
(Superseded to 5105392FS)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5414118AA

PLATE, BRACKET, DECK LIFT SUPPORT - BLK
(Superseded to 5414118AAFS)

$13.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

In Stock, only 3 left!

0

26

Snapper Pro 5105322

ROD, DECK LIFT LATCH
(Superseded to 5105322FS)

$8.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 1723321

SPRING-COMP 0.715ODX 03.85 LG
(Superseded to 1723321SM)

$6.99

$

In Stock, Qty 18

0

28

Snapper Pro 5105323

BUTTON, PUSH, DECK LIFT, THREADED
(Superseded to 5105323FS)

$13.99

$

In Stock, only 1 left!

0

29

Snapper Pro 1722291

GRIP,LIFT LEVER
(Superseded to 1722291SM)

$11.99

$

In Stock, only 1 left!

0

30

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

33

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

35

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

36

Snapper Pro 5025447

GREASE FITTING, 1/4-28 STRAIGHT, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

39

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

40

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

41

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 1 left!

0

45

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

47

Snapper Pro 5025328X12

PIN, CLEVIS, 1/2 X 1-1/2, PLATED
(Superseded to 5025328X12SM)

$4.99

$

Usually ships in 2-12 days

0

48

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 4 left!

0

51

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

52

Snapper Pro 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

Usually ships in 2-12 days

0

53

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, only 1 left!

0

54

Snapper Pro 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

55

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 2 left!

0

56

Snapper Pro 1706644

SPACER,3/8X3/4X15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 4 left!

0

57

Snapper Pro 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

58

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

59

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

60

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 1675232

SPRING-EXTN 1.12 ODX 09.06 LG .177 ECOAT
(Superseded to 1675232SM)

$20.99

$

In Stock, only 1 left!

0

62

Snapper Pro 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

63

Snapper Pro 5415286A

WELD, REAR LIFT PIVOT, LH - BLK

Note: (Models w/ 48" Mower Decks)

$79.99

$

Usually ships in 2-12 days

0

64

Snapper Pro 5105002

ROD, MAIN DECK LIFT, 14.00
(Superseded to 5105002FS)

Note: (Models w/ 48" Mower Decks)

$42.99

$

Usually ships in 2-12 days

0
