SS 100 (5901801) - Snapper Pro SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton Engine & PTO Group Parts Diagram

SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton

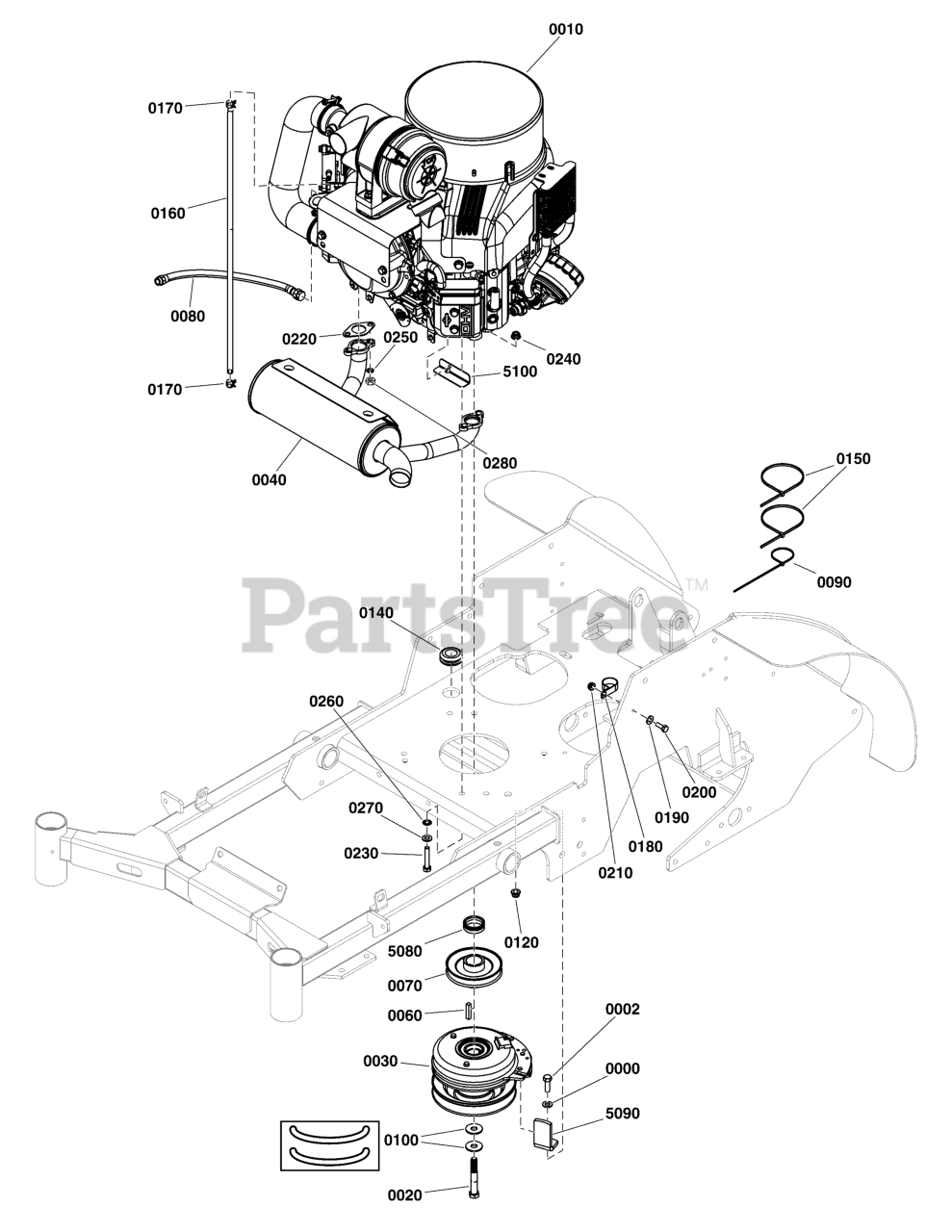

Engine & PTO Group Parts Diagram

  • Title

0002

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, only 4 left!

0

0010

Snapper Pro 38677-3037-G1

ENGINE

Note: (Refer to Note: *)

$

$

Currently unavailable

0020

Snapper Pro 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm))

$5.49

$

In Stock, only 2 left!

0

0030

Snapper Pro 5104954

CLUTCH, WARNER, 125 FTLBS - 1.13"
(Superseded to 5104954FS)

$427.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5105196

MUFFLER 23HP VANGUARD SRSZ1 (SHORT)
(Superseded to 5105196FS)

$358.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 6

0

0070

Snapper Pro 5105067

PULLEY,CRANKSHAFT,1.1255IDX4.00OD,BRIGGS
(Superseded to 5105067FS)

$54.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

$28.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 3 left!

0

0120

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0160

Snapper Pro 5050831X15P5

HOSE, 1/4" FUEL, 15.50"

$

$

Currently unavailable

0170

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

0190

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0210

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0220

Snapper Pro 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0230

Snapper Pro 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (Torque engine mounting bolt to 17 ft-lbs (23 Nm))

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

0250

Snapper Pro 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper Pro 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0280

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

5080

Snapper Pro 5105074

SPACER, 1.50 X 1.125 X .50, CZ
(Superseded to 5105074FS)

$34.99

$

Usually ships in 2-12 days

0

5090

Snapper Pro 5416468A

PLATE, CLUTCH ANCHOR, Z1 - BLK

$4.99

$

Usually ships in 2-12 days

0

5100

Snapper Pro 5416700

PLATE, SS HEAT SHIELD, Z1-BRIGGS
(Superseded to 5416700FS)

$7.99

$

Usually ships in 2-12 days

0
