SS 1222EE (1696471-00) - Snapper 22" Snow Thrower, 11.5hp Chute Rotation Group - Electric Parts Diagram
22" Snow Thrower, 11.5hp

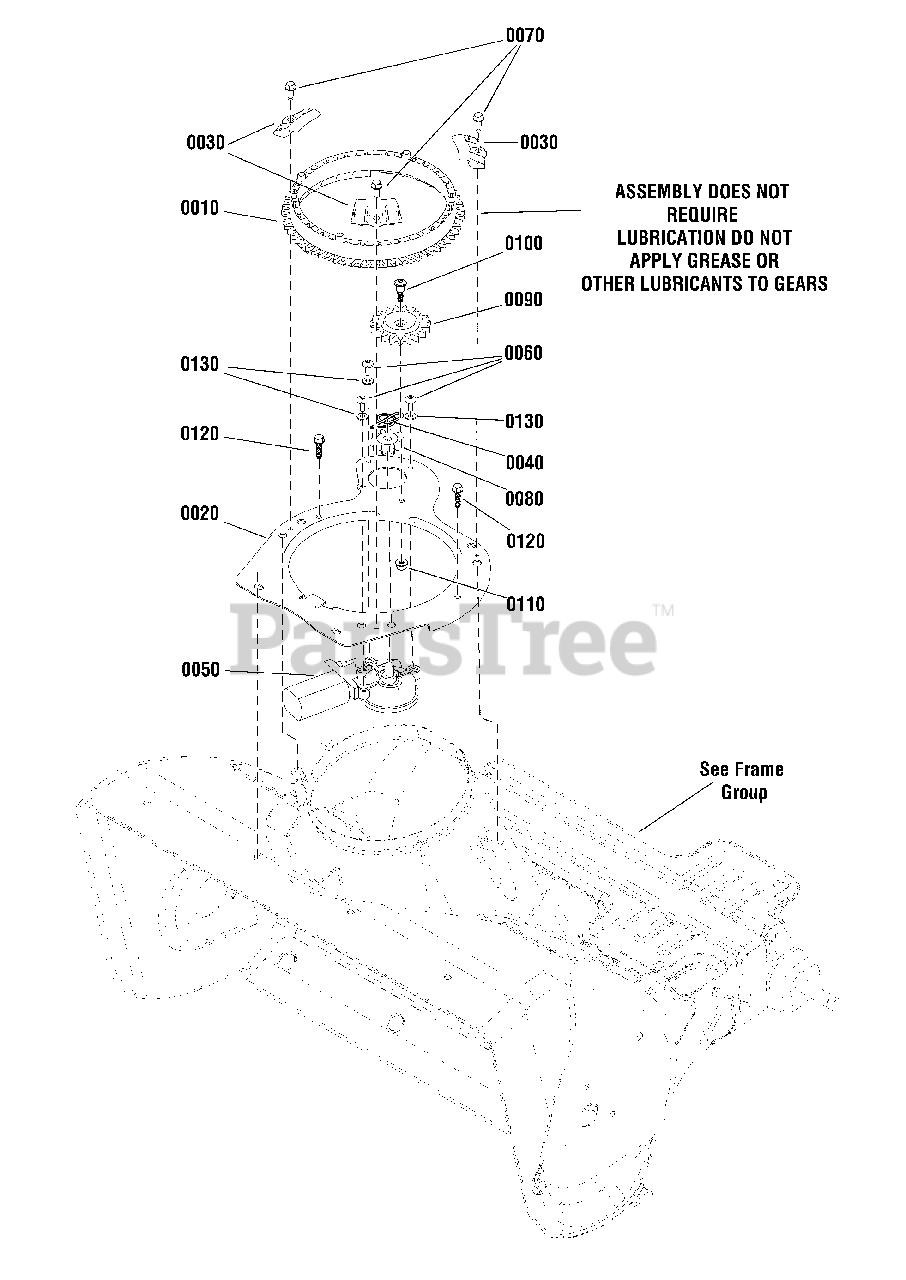

Chute Rotation Group - Electric Parts Diagram
Snapper 706509
GEAR
$38.99
$
In Stock, only 1 left!
Snapper 706510
PLATE, Chute Mounting
$56.99
$
Usually ships in 2-12 days
0030
RETAINER, Chute
$
$
Not available
Snapper 7091594SM
PIN, Cotter, 1/2
$2.99
$
In Stock, only 2 left!
$86.99
$
In Stock, Qty 20+
Snapper 1739621YP
SCREW, Torx Button Head, M5 x .8 x 14
$4.49
$
In Stock, Qty 6
Snapper 703054
SCREW, Hex Washer Head, 1/4-20 x 5/8
$4.49
$
Usually ships in 2-12 days
Snapper 706512
GEAR, 10T
$9.49
$
In Stock, only 3 left!
Snapper 706513
GEAR, 19T
$14.99
$
Usually ships in 2-12 days
Snapper 706514
SCREW, Shoulder, Button Torx Washer Head, 1/4-20 x 1
$7.49
$
In Stock, only 1 left!
Snapper 703463
NUT, Nylock Flanged, 1/4-20
$4.49
$
In Stock, only 3 left!
Snapper 706516
SCREW, Hi-Low, 1/4-15 x 1
$3.49
$
In Stock, only 2 left!
Snapper 7091552SM
WASHER, Flat, 7/32
$3.99
$
In Stock, only 2 left!
