SS 200 (5901861) - Snapper Pro SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton

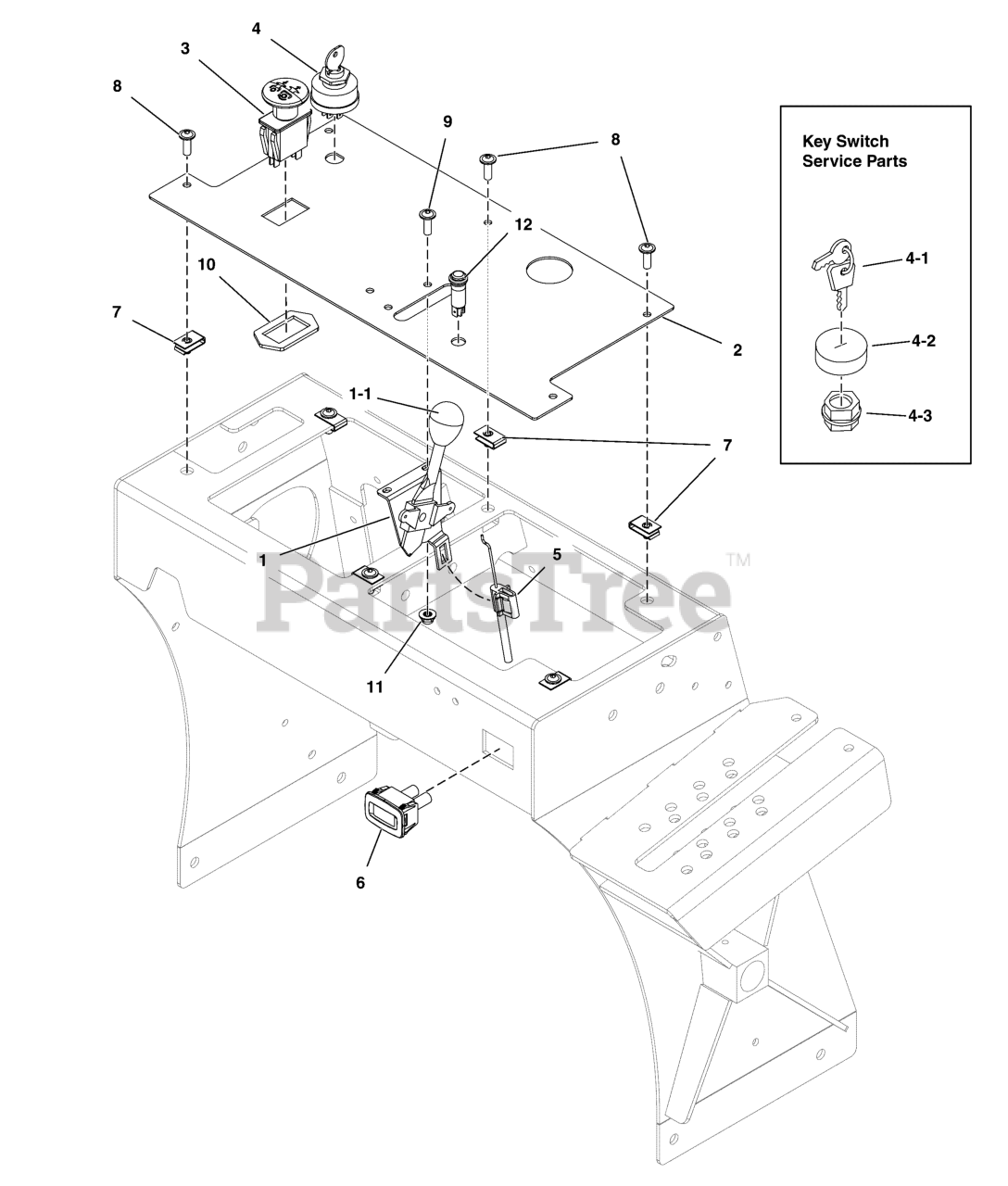

Instrument Control Panel Group Parts Diagram

  • Title

1

Snapper Pro 5101995

LEVER, HEAVY DUTY, THROTTLE CONTROL
(Superseded to 5101995YP)

$45.99

$

In Stock, only 2 left!

0

1-1

Snapper Pro 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (SV)

$11.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5601128

DASH PANEL W/DECALS, SRSZ2EFI (5417475A)

$127.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$32.99

$

In Stock, Qty 13

0

4

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$34.99

$

In Stock, Qty 20+

0

4-1

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

4-2

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.99

$

In Stock, Qty 5

0

4-3

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, Qty 12

0

5

Snapper Pro 5101074

CABLE, THROTTLE, 40"
(Superseded to 5101074SM)

$35.99

$

In Stock, only 2 left!

0

6

Snapper Pro 84008510

HOURMETER

$35.99

$

In Stock, Qty 18

0

7

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

In Stock, only 3 left!

0

9

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

10

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, Qty 12

0

11

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$30.99

$

Usually ships in 2-12 days

0
