SS 22 EL (1697350-00) - Briggs & Stratton Legend Force 22" Snow Thrower, 9.5 Gross TP (2020) Engine Groups Parts Diagram

Legend Force 22" Snow Thrower, 9.5 Gross TP

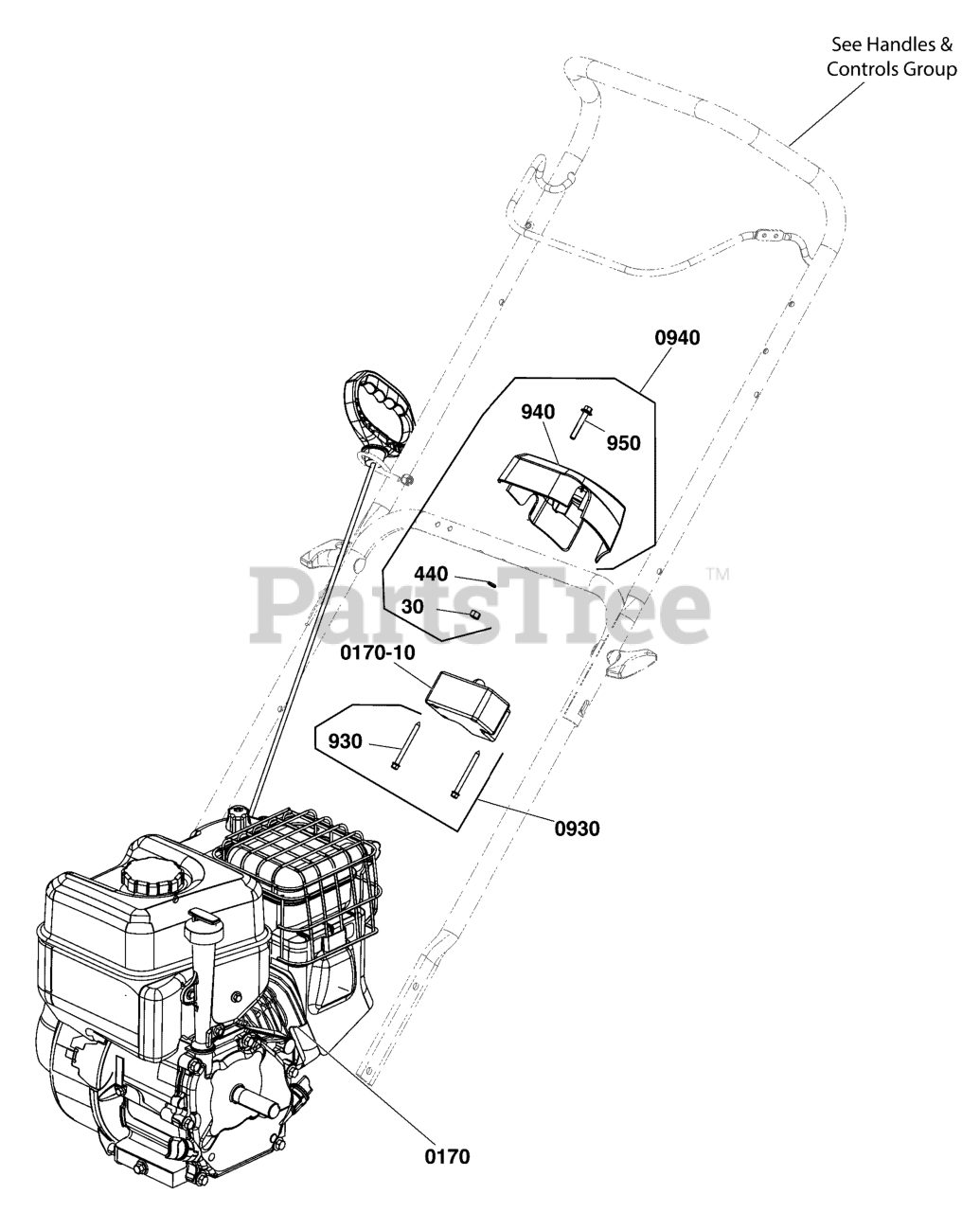

Engine Groups Parts Diagram

  • Title

0170

Murray 13A137-0001-F1

*ENGINE, 9.5TP Briggs & Stratton

Note: (Engine Model: 13A137-0001-F1) (Refer to Note: *)

$

$

Currently unavailable

0170-10

Murray 591702

**MOTOR, Starter

Note: (Refer to Note: **)

$277.99

$

Usually ships in 2-12 days

0

0940

Murray 709863

KIT, STARTER HOUSING

Note: (Incl. Ref. Nos. 30, 440, 940, 950) (For electric start only.)

$20.99

$

Usually ships in 2-12 days

0

30

NUT, M6, Lock

$

$

Not available

440

WASHER, 6x12x.7, Flat

$

$

Not available

940

Murray 1754873YP

HOUSING, Starter, 110V

$40.99

$

Usually ships in 2-12 days

0

950

SCREW, M6x40, Hex Flange Head

$

$

Not available

0930

Murray 709864

KIT, HARDWARE, STARTER

Note: (Incl. Ref. No. 930) (For electric start only.)

$5.49

$

Usually ships in 2-12 days

0

930

Murray 703066

SCREW, 8-16 x 2, Pan Head Phillips, Plast.

$4.49

$

Usually ships in 2-12 days

0
