SS 24 - Weed Eater Hedge Trimmer, Electric HEDGE TRIMMER Parts Diagram

Hedge Trimmer, Electric

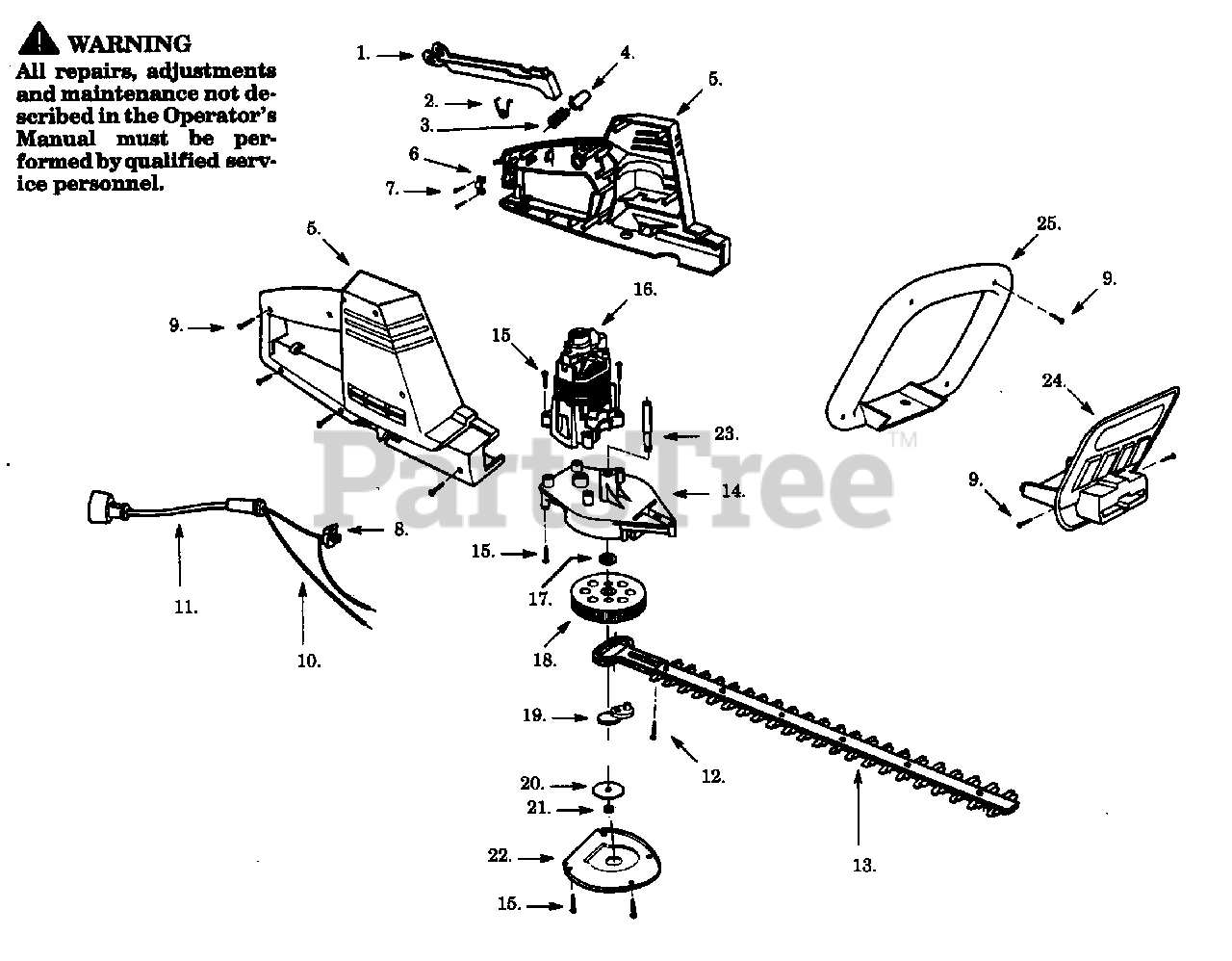

HEDGE TRIMMER Parts Diagram

  • Title

1

Poulan 530401927

Trigger Switch

$

$

Not available

2

Poulan 530401222

Spring Clip

$

$

Not available

3

Poulan 530401054

Spring-Trigger Lock

$

$

Not available

4

Poulan 530401380

Button-Trigger Lock

$

$

Not available

5

Poulan 530400861

Housing Set (R&L)

$

$

Not available

6

Poulan 530025666

Cordset Clamp

$

$

Not available

7

Poulan 534826801

Screw

$

$

Not available

8

Poulan 530401503

Switch (On/Off)

$

$

Not available

9

Poulan 530340179

Screw

$1.49

$

In Stock, Qty 8

0

10

Poulan 530402069

Harness Ass'y. (Incl. 8 & 11)

$

$

Not available

11

Poulan 530402070

Cordset

$

$

Not available

12

Poulan 530016086

Screw

$

$

Not available

13

Poulan 530400922

Blade Ass'y., 20"

$

$

Not available

13

Poulan 530400879

Blade Ass'y., 24"

$

$

Not available

14

Poulan 530400877

Gear Box Ass'y.

$

$

Not available

15

Poulan 530015875

Screw

$3.49

$

In Stock, only 3 left!

0

16

Poulan 530400866

Motor Ass'y.

$

$

Not available

17

Poulan 530401228

Washer

$

$

Not available

18

Poulan 530400859

Gear

$

$

Not available

19

Poulan 530400980

Drive Cam

$

$

Not available

20

Poulan 530400876

Washer

$

$

Not available

21

Poulan 530401229

Locknut

$

$

Not available

22

Poulan 530400860

Plate Cover

$

$

Not available

23

Poulan 530400872

Shaft

$

$

Not available

24

Poulan 530400929

Shield

$

$

Not available

25

Poulan 530400958

Handle Ass'y. (Incl. 9)
(Superseded to 530053578)

$

$

Not available

Poulan 530083757

Operator Manual

$

$

Not available

Poulan 530400981

Carton Contents Bag

$

$

Not available

Poulan 530402295

Warning Decal

$

$

Not available

Poulan 530402363

Shield Warning

$

$

Not available
