SS 725 R (41AJSS-A054) - TrimmerPlus String Trimmer Attachment Boom And Trimmer Parts Parts Diagram

String Trimmer Attachment

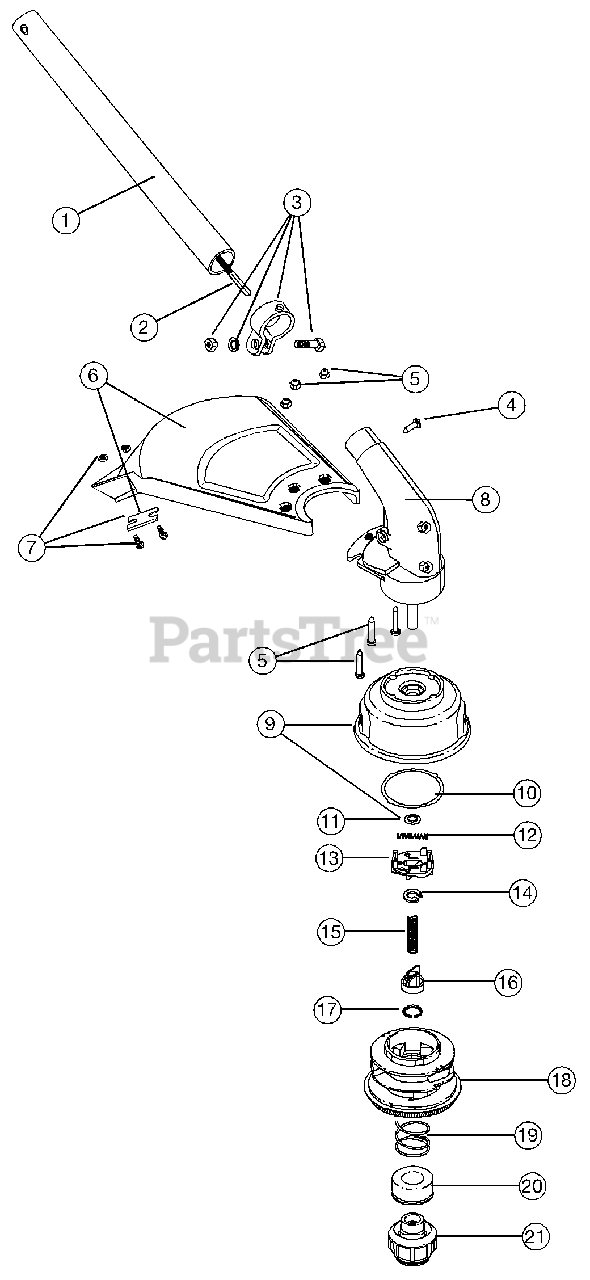

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

2

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

3

MTD 791-153597

Lower Clamp Assembly

Note: (includes 4)

$15.99

$

Usually ships in 3-6 days

0

4

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

5

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

6

MTD 791-180548

Shield and Blade Assembly

Note: (includes 7)

$

$

Not available

7

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

8

MTD 753-04090

Gearbox Assembly

Note: (includes 3,9 -21)

$

$

Not available

9

MTD 791-181771

Outer Spool & Eyelet Assembly

$

$

Not available

10

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

11

MTD 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

12

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

13

MTD 753-04257

Slider

$6.99

$

In Stock, Qty 8

0

14

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

15

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

16

MTD 791-181462

Plunger

$

$

Not available

17

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

18

MTD 791-181772

Inner Reel

$16.99

$

In Stock, only 1 left!

0

19

MTD 791-181465

Large Spring

$

$

Currently unavailable

20

MTD 791-181467

Foam Seal

$

$

Not available

21

MTD 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 19 & 20)

$15.99

$

Usually ships in 3-6 days

0

MTD 791-181472

Replacement Line, .080 Diameter
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$30.99

$

In Stock, Qty 7

0

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$30.99

$

In Stock, Qty 7

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Item not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-612605

Hanger Accessory
(Superseded to 731-08926)

Note: Optional Accessory; Item not shown

$2.49

$

In Stock, Qty 16

0
