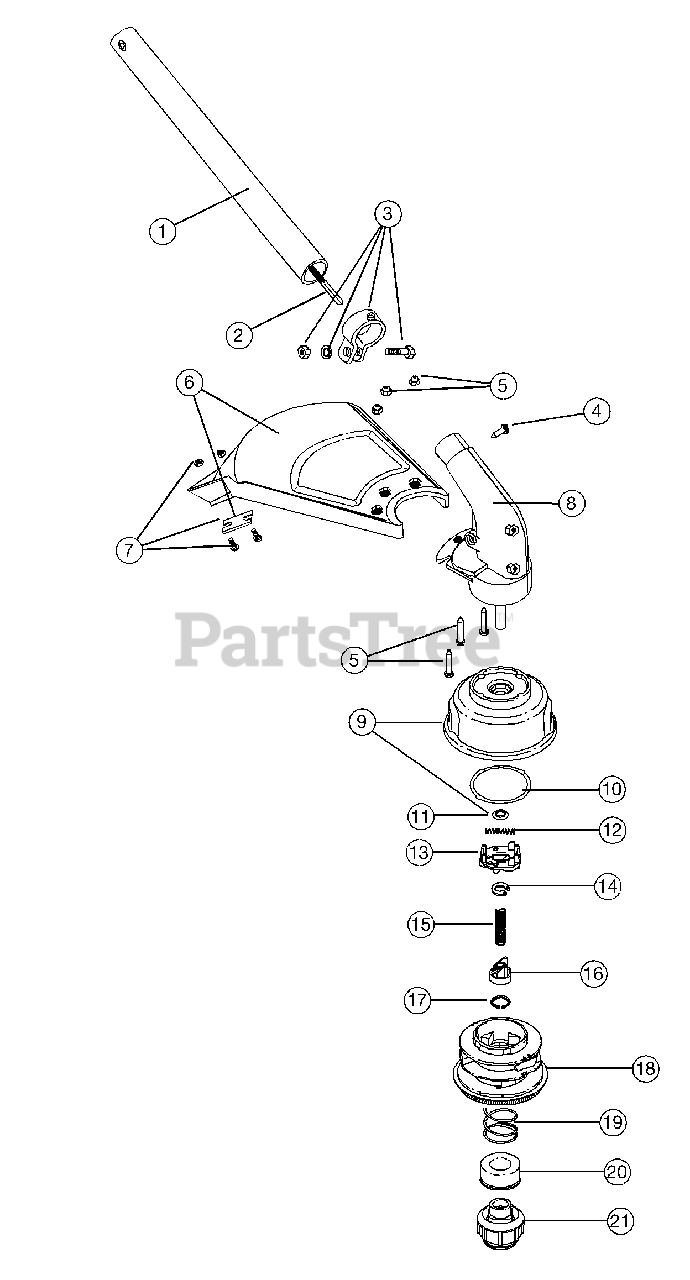

SS 725 R (41AJSS-B034) - Ryobi Trimmer Plus String Trimmer Attachment Boom And Trimmer Parts Parts Diagram

Trimmer Plus String Trimmer Attachment

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

2

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

3

MTD 791-153597

Lower Clamp Assembly

Note: (includes 4)

$

$

Not available

4

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

5

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

6

MTD 791-180548

Shield and Blade Assembly

Note: (includes 7)

$

$

Not available

7

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

8

MTD 753-04090

Gearbox Assembly

Note: (includes 9 & 10)

$

$

Not available

9

MTD 791-181771

Outer Spool & Eyelet Assembly

$

$

Not available

10

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

11

MTD 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

12

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 17

0

13

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 7

0

14

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 17

0

15

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

16

MTD 791-181462

Plunger

$

$

Not available

17

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

18

MTD 791-181772

Inner Reel

$18.99

$

In Stock, only 1 left!

0

19

791-181465b

Large Spring

$

$

Not available

20

MTD 791-181467

Foam Seal

$

$

Not available

21

791-181468b

Bump Head Knob Assembly

Note: (includes 19 & 20)

$

$

Not available

MTD 791-181472

Replacement Line, .080 Diameter
(Superseded to 791-181460B)

Note: Optional Accessory; Not Shown

$32.99

$

In Stock, Qty 6

0

MTD 753-00053

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$

$

Currently unavailable

791-682075b

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-612605

Hanger Accessory
(Superseded to 731-08926)

Note: Optional Accessory; Not Shown

$2.99

$

In Stock, Qty 14

0

MTD 791-181470

Complete Cutting Head Assembly

Note: (includes 4, 8-21); Optional Accessory; Not Shown

$

$

Not available
