SS 7522 R (1696514-01) - Simplicity 22" Snow Thrower, 7.5hp Wheel & Body Covering Group Parts Diagram

22" Snow Thrower, 7.5hp

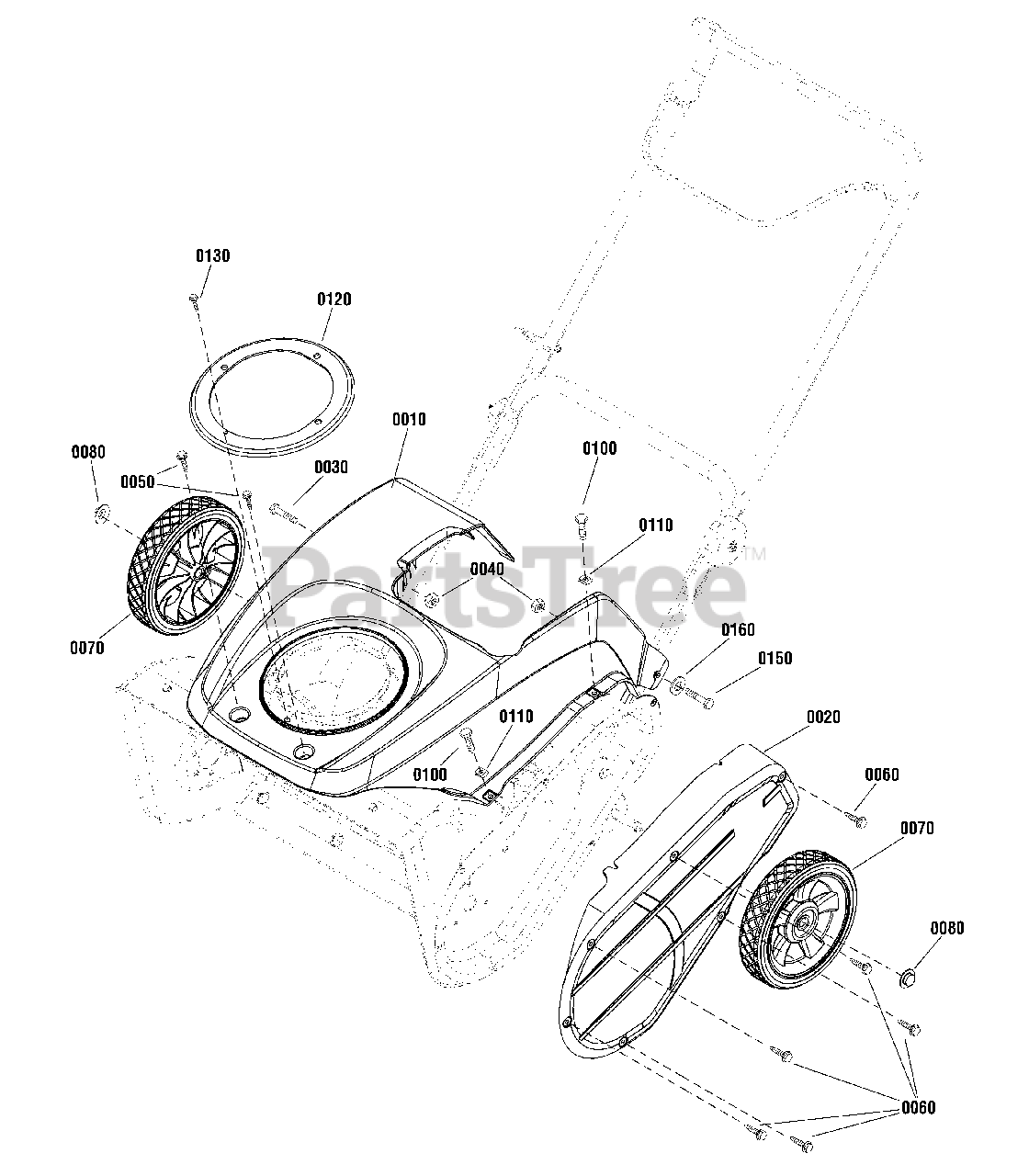

Wheel & Body Covering Group Parts Diagram

  • Title

0010

Simplicity 1752321YP

COVER, Top, Orange

$85.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1739599YP

COVER, Drive Case, Black

$63.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1750777YP

CAPSCREW, Hex Washer Head, 1/4 x 20 x 2

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 703232

NUT, Nylock, 1/4

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 7091081SM

SCREW, Self Tapping, 1/4-15 x 3/4

$4.49

$

In Stock, Qty 18

0

0060

Simplicity 704130

SCREW, Hex Washer Head, Trilob,1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 311237YP

WHEEL, 2 x 8, Plastic 1/2, SILVER

$20.99

$

In Stock, only 1 left!

0

0080

Simplicity 703179

NUT, Push

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1750638

CAPSCREW, Hex Washer Head, 10-24 x 3/4
(Superseded to 1750638YP)

$4.49

$

Usually ships in 2-12 days

0

0110

Simplicity 885118YP

NUT, U-Style Speed, #10

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1739752YP

MOISTURE COVER, Chute

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 723361

SCREW, Hex Washer Head, #10-HL x 5/8
(Superseded to 316042MA)

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 12

0
