SS 922EX (1695882) - Snapper 22" Snow Thrower with Remote, 9hp (2010) Panel Group Parts Diagram

22" Snow Thrower with Remote, 9hp

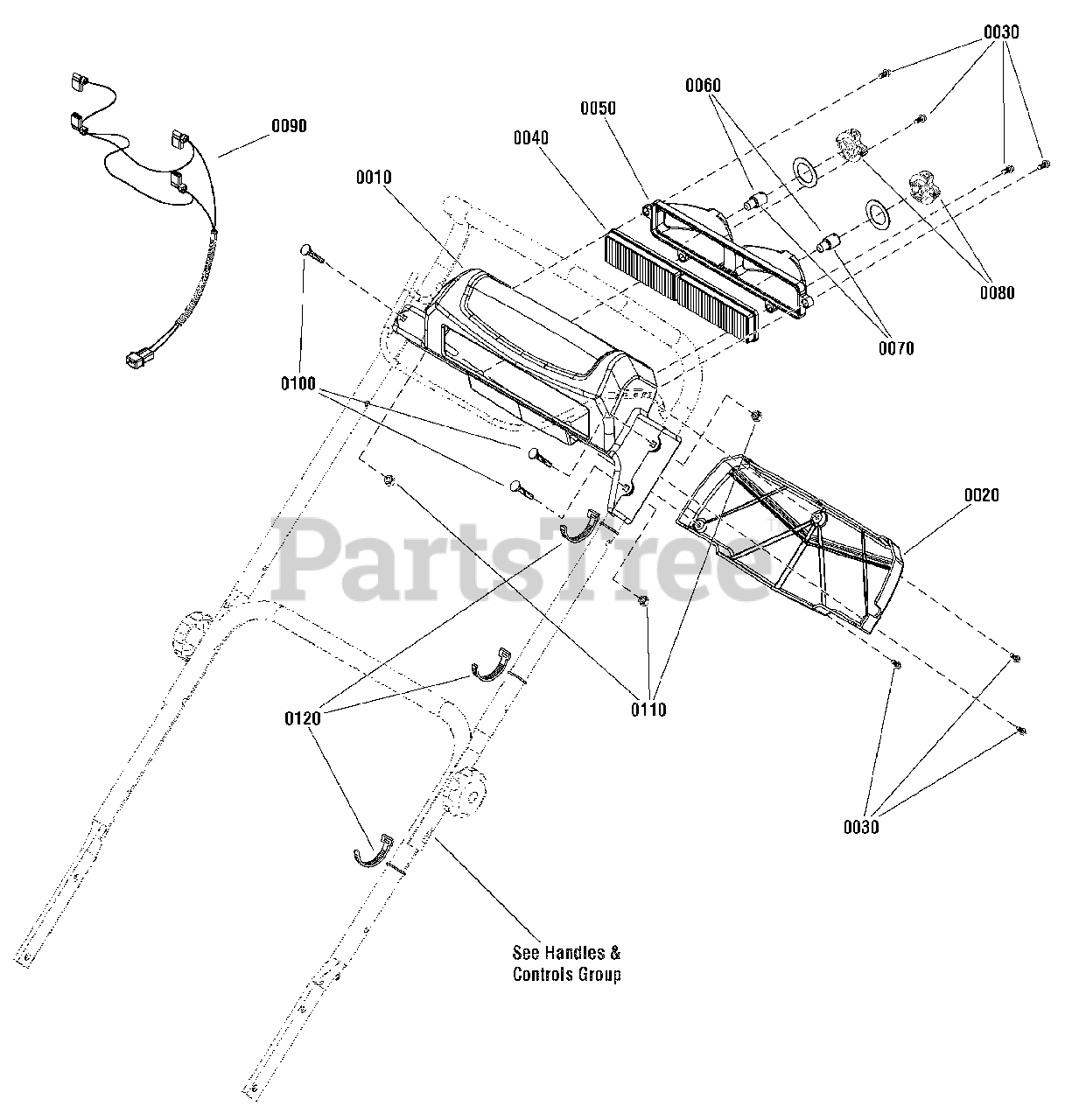

Panel Group Parts Diagram

  • Title

0010

Snapper 1750728

* PANEL, Light
(Superseded to 1750728YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$36.99

$

Usually ships in 2-12 days

0

0020

Snapper 1750875

* COVER, Light Panel
(Superseded to 1750875YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$14.99

$

Usually ships in 2-12 days

0

0030

Snapper 7091105

* CAPSCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 7091105YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$5.49

$

Usually ships in 2-12 days

0

0040

Snapper 1736177

* LENS, Twin Light
(Superseded to 1736176YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$68.99

$

Usually ships in 2-12 days

0

0050

Snapper 1736178

* DEFLECTOR, Twin Light
(Superseded to 1736176YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$68.99

$

Usually ships in 2-12 days

0

0060

Snapper 1739689

* LAMP, Halogen. 12V 20W
(Superseded to 1739689YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$

$

Not available

0070

Snapper 1736179

* GASKET, Single, Twin Light
(Superseded to 1736180YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$10.99

$

Usually ships in 2-12 days

0

0080

Snapper 1736180

* SOCKET/GASKET ASSEMBLY, Single, Twin Light (incl. 1736179)
(Superseded to 1736180YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$10.99

$

Usually ships in 2-12 days

0

0090

Snapper 1738286

* WIRING HARNESS, HeadlLights
(Superseded to 1738286YP)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$27.99

$

Usually ships in 2-12 days

0

0100

Snapper 1960633

* BOLT, Carriage, 1/4-20 x 1-1/2, GR 5
(Superseded to 704214)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 7091603

* NUT, Nylock, 1/4
(Superseded to 703232)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 720393

* CABLE TIE
(Superseded to 032618MA)

Note: (Applies to Mdl. SS922EX Pt. #1695882 only)

$3.99

$

Usually ships in 2-12 days

0
