SSS270CSB00000 - Exmark Spreader Sprayer (SN: 316000000 - 399999999) (2016) Spreader Assembly Parts Diagram

Spreader Sprayer

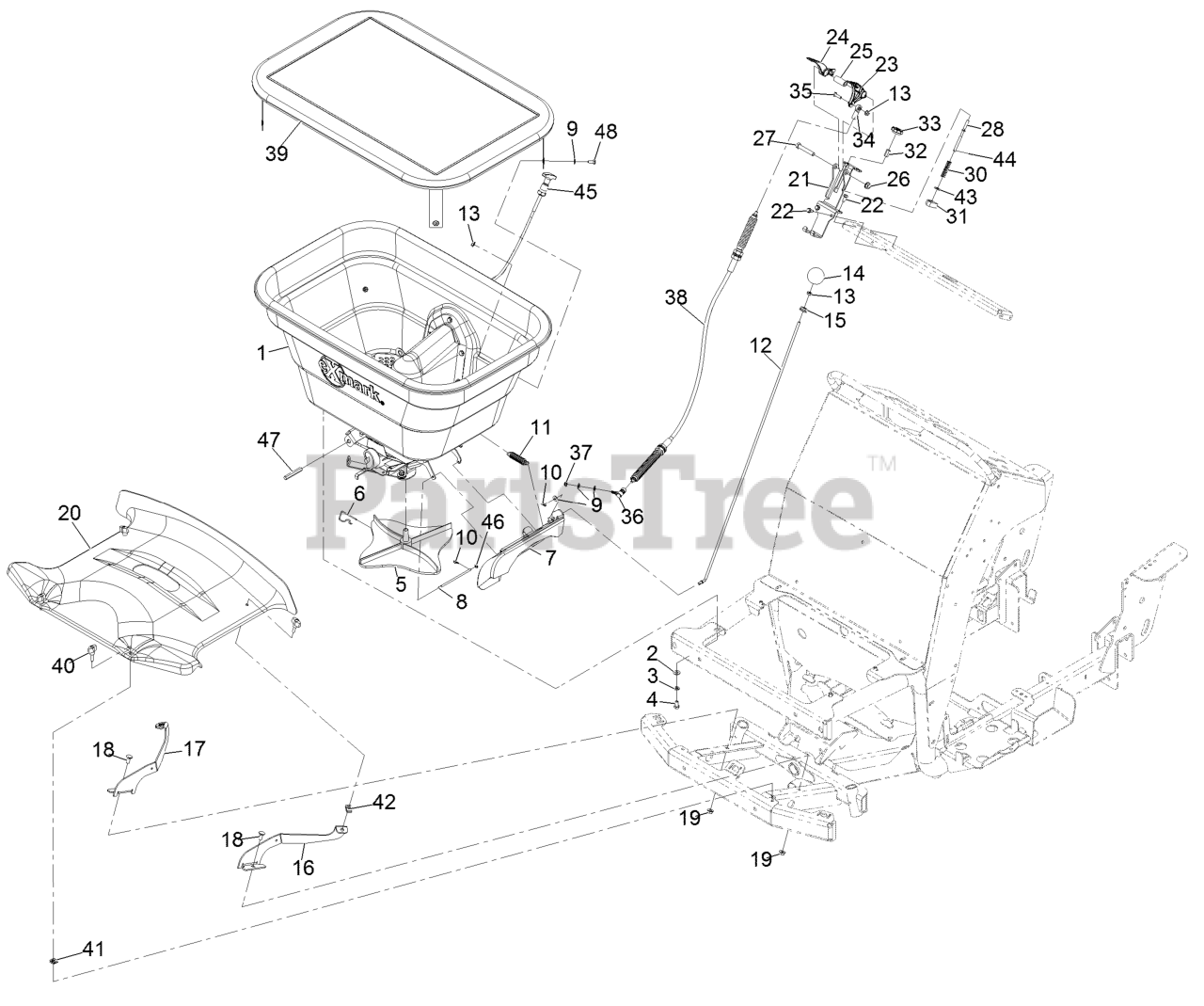

Spreader Assembly Parts Diagram

  • Title

1

Spreader Hopper ASM

Note: Not serviced separately

$

$

Not available

2

Exmark 107-0279

WASHER

$1.99

$

In Stock, only 1 left!

0

3

Exmark 107-0280

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2506

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 126-0858

SPINNER-SPREADER

$69.99

$

In Stock, Qty 14

0

6

Exmark 126-1246

CLIP-SPINNER
(Superseded to 142-3541)

$10.99

$

In Stock, only 2 left!

0

7

Side Deflector ASM

Note: Not serviced separately

$

$

Not available

8

Exmark 126-1629

PIN-DEFLECTOR

$21.99

$

In Stock, only 4 left!

0

9

Exmark 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

10

Exmark 126-1631

PIN-COTTER, HAIR

$2.99

$

In Stock, only 2 left!

0

11

Exmark 126-2127

SPRING-EXTENSION

$7.99

$

In Stock, only 4 left!

0

12

Exmark 126-2190

ROD-CONTROL, DEFLECTOR

$40.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2231

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 10

0

14

Exmark 121-1877

KNOB-RATE, FLOW

$9.49

$

Usually ships in 3-6 days

0

15

Exmark 1-633630

GROMMET

$5.49

$

In Stock, Qty 20+

0

16

Exmark 126-2145

BRACKET-COVER, FRONT (LH)

$49.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2146

BRACKET-COVER, FRONT (RH)

$49.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 126-2232

135-2881
(Superseded to 135-2881)

$1.99

$

In Stock, only 3 left!

0

20

Exmark 126-2063

COVER-FRONT, SPREADER/SPR

$193.99

$

Usually ships in 3-6 days

0

21

Exmark 126-3133

MOUNT-HANDLE

$39.99

$

Usually ships in 3-6 days

0

22

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

23

Exmark 126-3947

LEVER-SPREAD, WIDE

$9.99

$

Usually ships in 3-6 days

0

24

Exmark 126-3948

LEVER-SPREAD, NARROW

$9.99

$

Usually ships in 3-6 days

0

25

Exmark 126-3984

SPACER

$13.99

$

Usually ships in 3-6 days

0

26

Exmark 126-2233

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 10

0

27

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-3929

LINK-ADJUST, NARROW

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 125-0547

SPRING-COMPRESSION, BAIL

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 126-3147

STOP-SPREAD, NARROW

$29.99

$

Usually ships in 3-6 days

0

32

Exmark 126-4891

NUT-COUPLER

$10.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3905

KNOB

$11.99

$

Usually ships in 3-6 days

0

34

Exmark 2411-41

ROD END-BALL JOINT

$41.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, Qty 5

0

36

Exmark 126-2005

BALL-JOINT

$27.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2725

NUT-HEX, NI

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 126-1783

CABLE

$193.99

$

Usually ships in 3-6 days

0

39

Exmark 126-2815

COVER-HOPPER

$101.99

$

In Stock, only 1 left!

0

40

Exmark 126-5846

KNOB-T

$14.99

$

In Stock, Qty 6

0

41

Exmark 126-3740

NUT-RETAINER, U STYLE

$5.49

$

In Stock, only 1 left!

0

42

Exmark 126-3739

NUT-RETAINER

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

44

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

45

Exmark 126-4150

CABLE-CONTROL, TURN LOCK

$100.99

$

Usually ships in 3-6 days

0

46

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

47

Exmark 126-4655

POST-HEX, DIFFUSER GUIDE

$21.99

$

Usually ships in 3-6 days

0

48

Exmark 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
