SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Ground Drive Assembly Parts Diagram

Spreader Sprayer

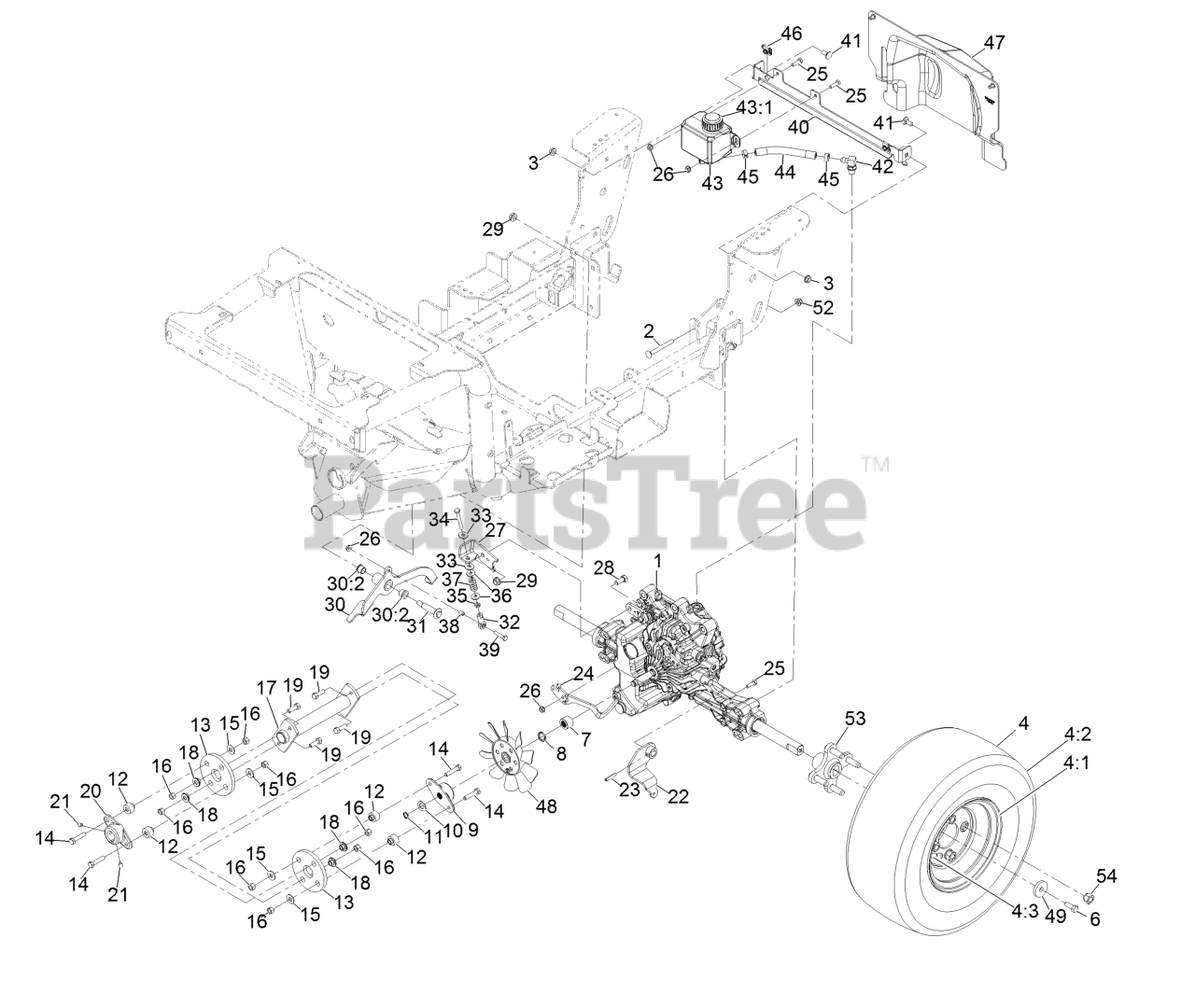

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-2814

Transaxle

$2099.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-26

Screw-CARR

$4.49

$

Usually ships in 3-6 days

0

3

Exmark 135-2881

Nut-Hex Flg

$1.99

$

In Stock, only 3 left!

0

4

Exmark 135-1210

Wheel And Tire

$198.99

$

Usually ships in 3-6 days

0

4:1

Exmark 119-8907

ASM(18X7.5-8) White Tire-4 Ply

$186.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-1211

Wheel, 8 X 5.375

$85.99

$

Usually ships in 3-6 days

0

4:3

Exmark 232-27

Stem-Valve

$

$

Not available

6

Exmark 135-1711

Screw-HH

$3.49

$

In Stock, only 4 left!

0

7

Exmark 126-2983

Spacer-Shaft, Input

$35.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-317

Washer-Spring

$1.99

$

In Stock, only 1 left!

0

9

Exmark 116-9787

Hub-Shaft, Transaxle

$79.99

$

In Stock, only 1 left!

0

10

Exmark 605256

Spacer

$2.99

$

In Stock, Qty 9

0

11

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

12

Exmark 27-6590

Spacer-Coupling, Rubber

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 115-4523

Coupling-Rubber

$53.99

$

In Stock, Qty 19

0

14

Exmark 3210-8

Screw-HH 5/16-24 X 1 1/2

$4.49

$

In Stock, only 3 left!

0

15

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32152-5

Nut-Hex 5/16-24

$3.49

$

In Stock, only 2 left!

0

17

Exmark 126-3838-03

Shaft-Drive

$55.99

$

Usually ships in 3-6 days

0

18

Exmark 125-9249

Spacer-Coupler, Rubber

$2.99

$

In Stock, only 3 left!

0

19

Exmark 3210-5

Screw-HH

$3.99

$

In Stock, Qty 6

0

20

Exmark 116-9788

Hub-Shaft, Engine

$90.99

$

Usually ships in 3-6 days

0

21

Exmark 3246-18

Setscrew-5/16-18 X 3/8

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 126-6243-03

Arm-Motion

$55.99

$

Usually ships in 3-6 days

0

23

Exmark 126-4295

Pin-Spiral

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-2811-03

Arm-Release

$21.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0498

Screw-HH 1/4-20 X 7/8 SS

$1.49

$

In Stock, Qty 5

0

26

Exmark 135-2880

Nut-Hex Flg

$1.49

$

In Stock, only 1 left!

0

27

Exmark 126-3937-03

Arm-Brake

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 126-0520

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 135-2882

Nut-Hex Flg

$2.99

$

In Stock, Qty 10

0

30

Exmark 126-0433

Brake Lever ASM

$86.99

$

Usually ships in 3-6 days

0

30:2

Exmark 116-4279

Bearing-Flange

$5.49

$

In Stock, Qty 20+

0

31

Exmark 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 6

0

32

Exmark 2411-41

Rod End-Ball Joint

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 7

0

34

Exmark 126-4009

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 3220-1

Nut-Jam 1/4-28

$1.49

$

In Stock, Qty 5

0

36

Exmark 3256-78

Washer

$1.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, Qty 7

0

38

Exmark 612503

Spacer

$5.49

$

Usually ships in 3-6 days

0

39

Exmark 321-8

Screw-HH 1/4-20 X 1 1/4

$3.99

$

In Stock, Qty 20+

0

40

Exmark 126-4423-03

Bracket-Mount, Tank

$30.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0695

Screw-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 126-2927

Fitting-90 DEG

$25.99

$

Usually ships in 3-6 days

0

43

Exmark 126-2578

Tank ASM

$93.99

$

Usually ships in 3-6 days

0

43:1

Exmark 126-2579

Cap-Tank

$12.99

$

Usually ships in 3-6 days

0

44

Exmark 126-2842

Hose-Expansion

$5.49

$

Usually ships in 3-6 days

0

45

Exmark 126-3749

Clamp

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 119-1730

Receptacle-Clip, Mini

$2.49

$

Usually ships in 3-6 days

0

47

Exmark 126-1462

Transaxle Cover ASM

$197.99

$

Usually ships in 3-6 days

0

48

Exmark 126-2980

Fan-7 Inch

$20.99

$

Usually ships in 3-6 days

0

49

Exmark 1-543610

Washer

$6.49

$

Usually ships in 3-6 days

0

52

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

53

Exmark 126-9884

ASM-Wheel Hub

$56.99

$

Usually ships in 3-6 days

0

54

Exmark 242-50

Nut-Lug 1/2-20

$1.99

$

In Stock, Qty 20+

0
