SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Spray System Assembly Parts Diagram

Spreader Sprayer

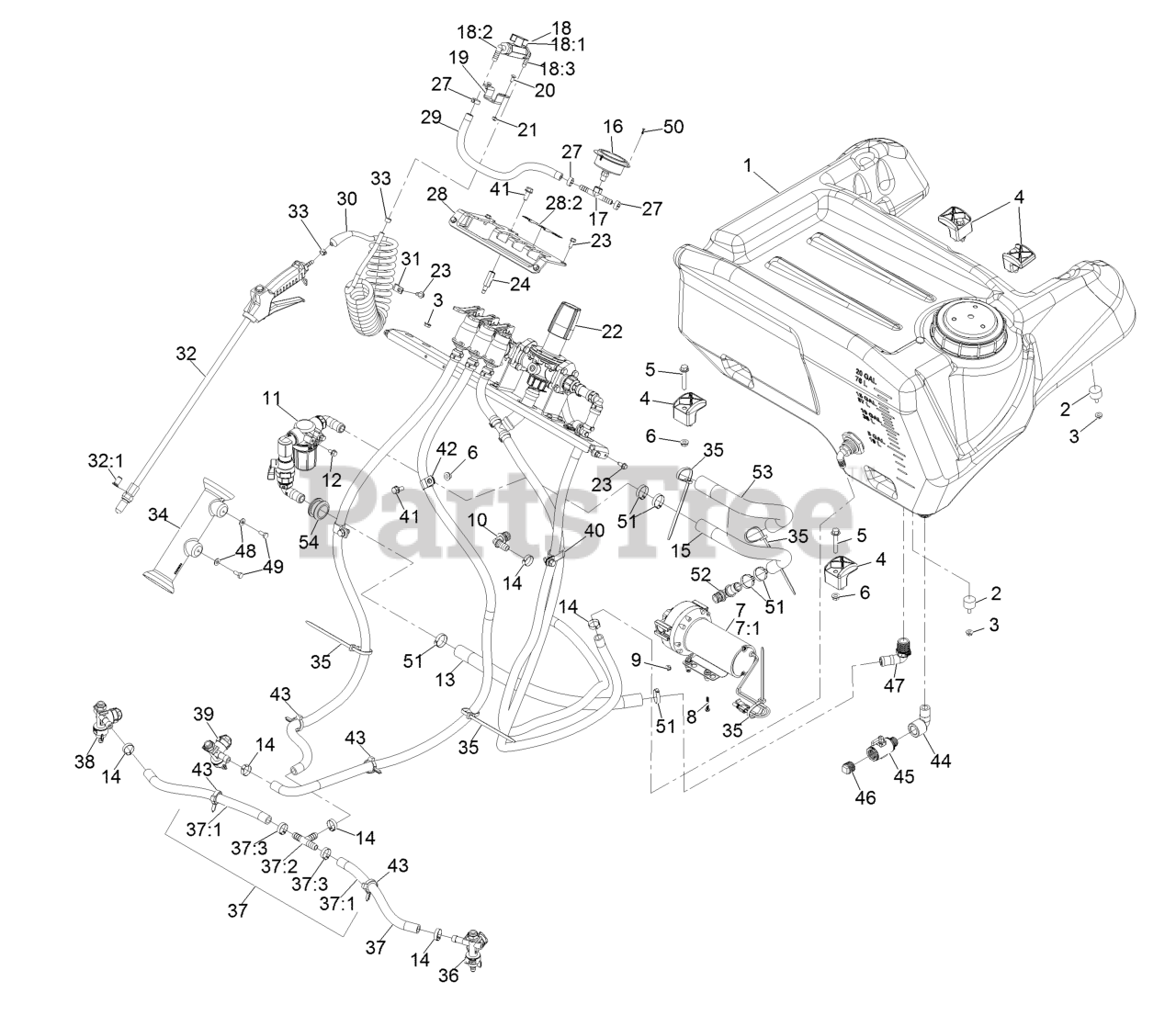

Spray System Assembly Parts Diagram

  • Title

1

Exmark 126-0286

Tank-Sprayer

$674.99

$

Usually ships in 3-6 days

0

2

Exmark 1-523420

Bumper

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2880

Nut-Hex Flg

$1.49

$

In Stock, only 1 left!

0

4

Exmark 107-4543

Clamp

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2711

Screw-HHF

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 135-2881

Nut-Hex Flg

$1.99

$

In Stock, only 3 left!

0

7

Exmark 135-2559

Pump-Diaphragm, 3.8 GPM
(Superseded to 142-2301)

$495.99

$

In Stock, only 2 left!

0

7:1

Exmark 135-2477

Kit-Diaphram Pump

$120.99

$

Usually ships in 3-6 days

0

8

Exmark 692501

Screw-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 126-2645

Nut-HF

$1.99

$

Usually ships in 3-6 days

0

10

Exmark 126-0961

Fitting-Elbow, Barbed

$9.99

$

In Stock, only 4 left!

0

11

Exmark 126-4358

Strainer ASM

$143.99

$

In Stock, only 1 left!

0

12

Exmark 126-2713

Screw-HHF

$5.49

$

In Stock, Qty 20+

0

13

Exmark 126-4422

Hose-Water

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 126-4778

Clamp

$2.99

$

In Stock, only 4 left!

0

15

Exmark 126-4637

Hose-Water

$34.99

$

Usually ships in 3-6 days

0

16

Exmark 126-4110

Gauge-Pressure

$174.99

$

In Stock, Qty 5

0

17

Exmark 126-2348

Fitting-Tee

$17.99

$

Usually ships in 3-6 days

0

18

Wand Control ASM

$

$

Not available

18:1

Exmark 126-0242

Valve-Ball

$46.99

$

In Stock, only 2 left!

0

18:2

Exmark 126-4992

Fitting-Elbow-90
(Superseded to 135-8341)

$1.49

$

In Stock, only 4 left!

0

18:3

Exmark 126-4993

Fitting-Elbow-90

$5.49

$

In Stock, Qty 20+

0

19

Exmark 126-0239-03

Bracket-Valve

$18.99

$

In Stock, only 1 left!

0

20

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 18

0

21

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

22

Control Valve Manifold ASM

$

$

Not available

23

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 12

0

24

Exmark 126-4914

Spacer-Mount, Manifold

$29.99

$

Usually ships in 3-6 days

0

27

Exmark 126-3749

Clamp

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 126-4180

Cover-Controls

$114.99

$

Usually ships in 3-6 days

0

28:2

Exmark 126-4161

Decal-Control, Lever

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 126-5847

Hose-Water, 3/8 Pvc Red

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 126-1493

Hose-Coiled

$79.99

$

In Stock, Qty 13

0

31

Exmark 2412-89

Clamp-R

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 126-8000

Spray Wand ASM

$129.99

$

In Stock, only 3 left!

0

32:1

Exmark 126-3943

Strainer-Nozzle, 50M 5PSI Check

$21.99

$

In Stock, Qty 20+

0

33

Exmark 126-2707

Clamp

$1.49

$

In Stock, Qty 20+

0

34

Exmark 126-3987

Holder-Wand

$69.99

$

Usually ships in 3-6 days

0

35

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

36

Exmark 126-3667

Left Nozzle Sub ASM

$79.99

$

In Stock, only 1 left!

0

37

Exmark 126-2252

Hose ASM

$25.99

$

Usually ships in 3-6 days

0

37:1

Exmark 126-2264

Hose-Water

$8.99

$

In Stock, only 1 left!

0

37:2

Exmark 126-0968

Fitting-Tee

$5.49

$

Usually ships in 3-6 days

0

37:3

Exmark 126-4778

Clamp

$2.99

$

In Stock, only 4 left!

0

38

Exmark 126-3669

Right Nozzle Sub ASM

$79.99

$

In Stock, only 3 left!

0

39

Exmark 126-3668

Center Nozzle Sub ASM

$79.99

$

In Stock, only 1 left!

0

40

Exmark 120-1959

Clamp

$3.49

$

Usually ships in 3-6 days

0

41

Exmark 126-2712

Screw-HHF 5/16-18 X 3/4 SS

$5.49

$

In Stock, Qty 11

0

42

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

44

Exmark 108-3573

Elbow-90 DEG

$15.99

$

Usually ships in 3-6 days

0

45

Exmark 126-1494

Microvalve

$46.99

$

Usually ships in 3-6 days

0

46

Exmark 363-3125

Plug

$2.99

$

Usually ships in 3-6 days

0

47

Exmark 119-0490

Elbow-Hosebarb

$4.99

$

In Stock, only 2 left!

0

48

Exmark 360-0140

Washer-Flat

$0.99

$

In Stock, Qty 10

0

49

Exmark 126-1290

Screw-HH 1/4-20 X 5/8 SS

$1.49

$

Usually ships in 3-6 days

0

50

Exmark 363-8552

Screw-TAP

$0.99

$

Usually ships in 3-6 days

0

51

Exmark 126-4779

Clamp

$2.99

$

Usually ships in 3-6 days

0

52

Exmark 126-4420

Fitting-Elbow

$15.99

$

In Stock, Qty 11

0

53

Exmark 126-5065

Sleeve-Corrugated, Split

$14.99

$

Usually ships in 3-6 days

0

54

Exmark 126-7410

Grommet

$6.99

$

Usually ships in 3-6 days

0
