SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Steering Assembly Parts Diagram

Spreader Sprayer

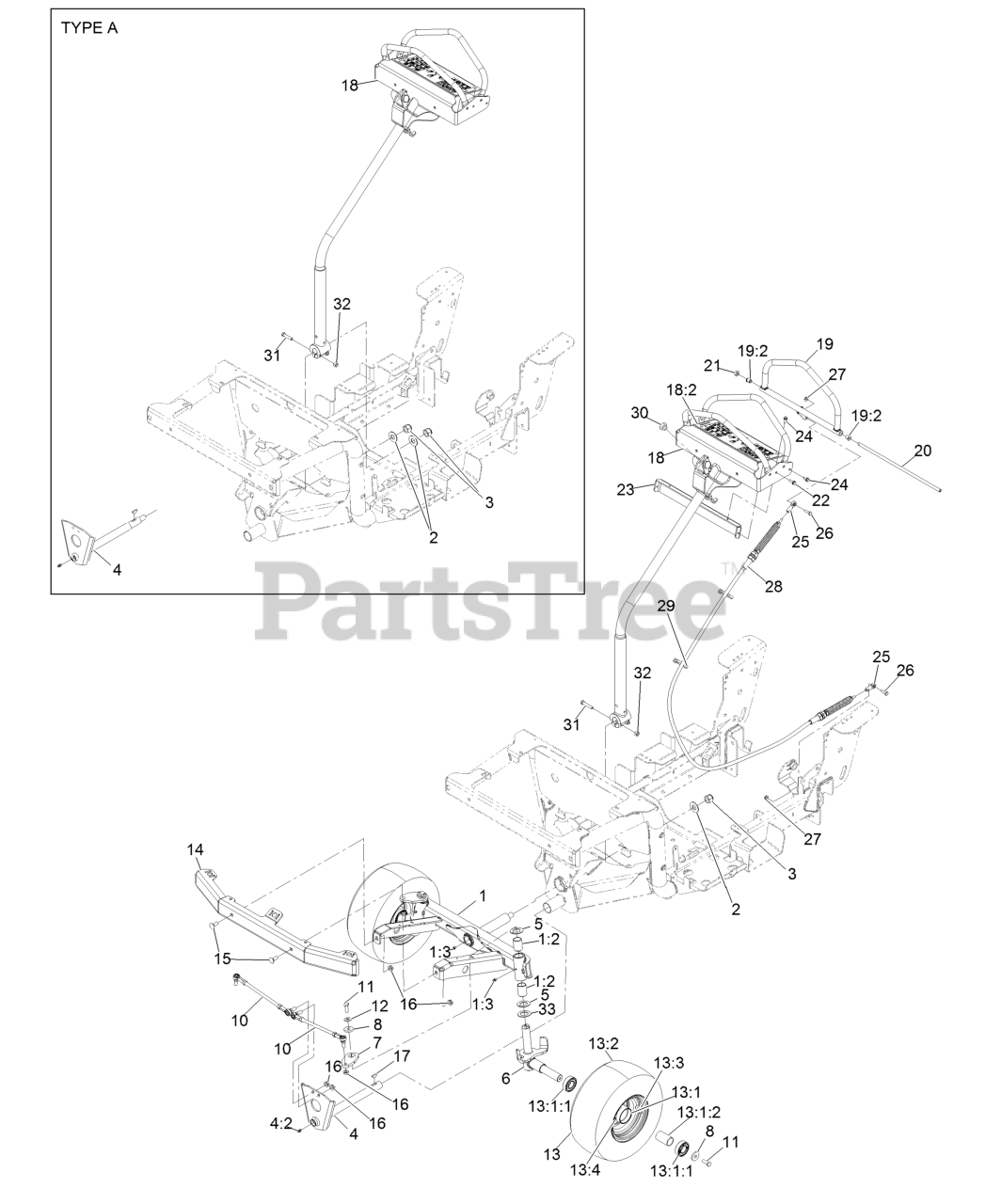

Steering Assembly Parts Diagram

  • Title

1

Exmark 126-7045

Front Axle ASM

$973.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-7048

Bearing-Sleeve

$12.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-1375

Zerk-Grease

$5.49

$

In Stock, Qty 10

0

2

Exmark 126-0656

Washer-Flat

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 126-0656

Washer-Flat (Type A)

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 126-3841

Nut-Hex Nyloc 5/8-11 SS

$5.49

$

In Stock, only 1 left!

0

3

Exmark 126-3841

Nut-Hex Nyloc 5/8-11 SS (Type A)

$5.49

$

In Stock, only 1 left!

0

4

Exmark 135-3156

Steering Shaft ASM

$222.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6048

Steering Shaft ASM (Type A)

$240.99

$

In Stock, only 1 left!

0

4:2

Exmark 126-1375

Zerk-Grease

$5.49

$

In Stock, Qty 10

0

5

Exmark 126-7044

Washer-Thrust

$7.99

$

In Stock, Qty 5

0

6

Exmark 126-6733

Front Axle ASM

$311.99

$

Usually ships in 3-6 days

0

7

Exmark 126-7069

Arm-Steering

$44.99

$

Usually ships in 3-6 days

0

8

Exmark 126-3875

Washer

$5.49

$

In Stock, only 2 left!

0

10

Exmark 126-7185

Steering Linkage ASM

$183.99

$

In Stock, only 3 left!

0

11

Exmark 135-1711

Screw-HH

$3.49

$

In Stock, only 4 left!

0

12

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

13

Exmark 126-7220

Wheel And Tire ASM

$155.99

$

In Stock, only 3 left!

0

13:1

Exmark 126-7258

Wheel ASM

$125.99

$

Usually ships in 3-6 days

0

13:1:1

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

13:1:2

Exmark 126-7260

Spacer

$6.49

$

Usually ships in 3-6 days

0

13:2

Exmark 126-1509

Tire

$85.99

$

In Stock, only 2 left!

0

13:3

Exmark 232-27

Stem-Valve

$

$

Not available

13:4

Exmark 302-62

Fitting-Grease

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 116-9789

Bumper-Front

$285.99

$

Usually ships in 3-6 days

0

15

Exmark 126-0980

Screw-Carriage 3/8-16 X 1 SS

$1.99

$

In Stock, Qty 5

0

16

Exmark 135-2882

Nut-Hex Flg

$2.99

$

In Stock, Qty 10

0

17

Exmark 3257-7

Key-Woodruff

$9.49

$

In Stock, only 1 left!

0

18

Exmark 135-3155

Motion Handle ASM

$802.99

$

Usually ships in 3-6 days

0

18

Exmark 126-1614

Motion Handle ASM (Type A)

$802.99

$

Usually ships in 3-6 days

0

18:2

Exmark 135-2844

Decal-Warning

$21.99

$

Usually ships in 3-6 days

0

19

Exmark 126-1598

Motion Handle ASM

$129.99

$

Usually ships in 3-6 days

0

19:2

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 19

0

20

Exmark 126-0496

Shaft-Pivot, Speed Control

$47.99

$

Usually ships in 3-6 days

0

21

Exmark 116-4198

Spacer-Shaft, Drive Lever

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 117-8304

Screw-Hex Flange 1/4-20 X 3/4

$3.49

$

In Stock, only 1 left!

0

23

Exmark 126-1604-03

Panel-Rear, Steering

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 12

0

25

Exmark 2411-41

Rod End-Ball Joint

$41.99

$

Usually ships in 3-6 days

0

26

Exmark 126-0498

Screw-HH 1/4-20 X 7/8 SS

$1.49

$

In Stock, Qty 5

0

27

Exmark 135-2880

Nut-Hex Flg

$1.49

$

In Stock, only 1 left!

0

28

Exmark 126-2169

Cable-Motion

$205.99

$

Usually ships in 3-6 days

0

29

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

30

Exmark 104-1412

Bumper-Rubber

$18.99

$

In Stock, only 3 left!

0

31

Exmark 3210-9

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 32152-5

Nut-Hex 5/16-24

$3.49

$

In Stock, only 2 left!

0

33

Exmark 126-7050

Spacer-Relief

$5.49

$

In Stock, Qty 5

0
