SSS395CKC00000 - Exmark Spreader Sprayer (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

Spreader Sprayer

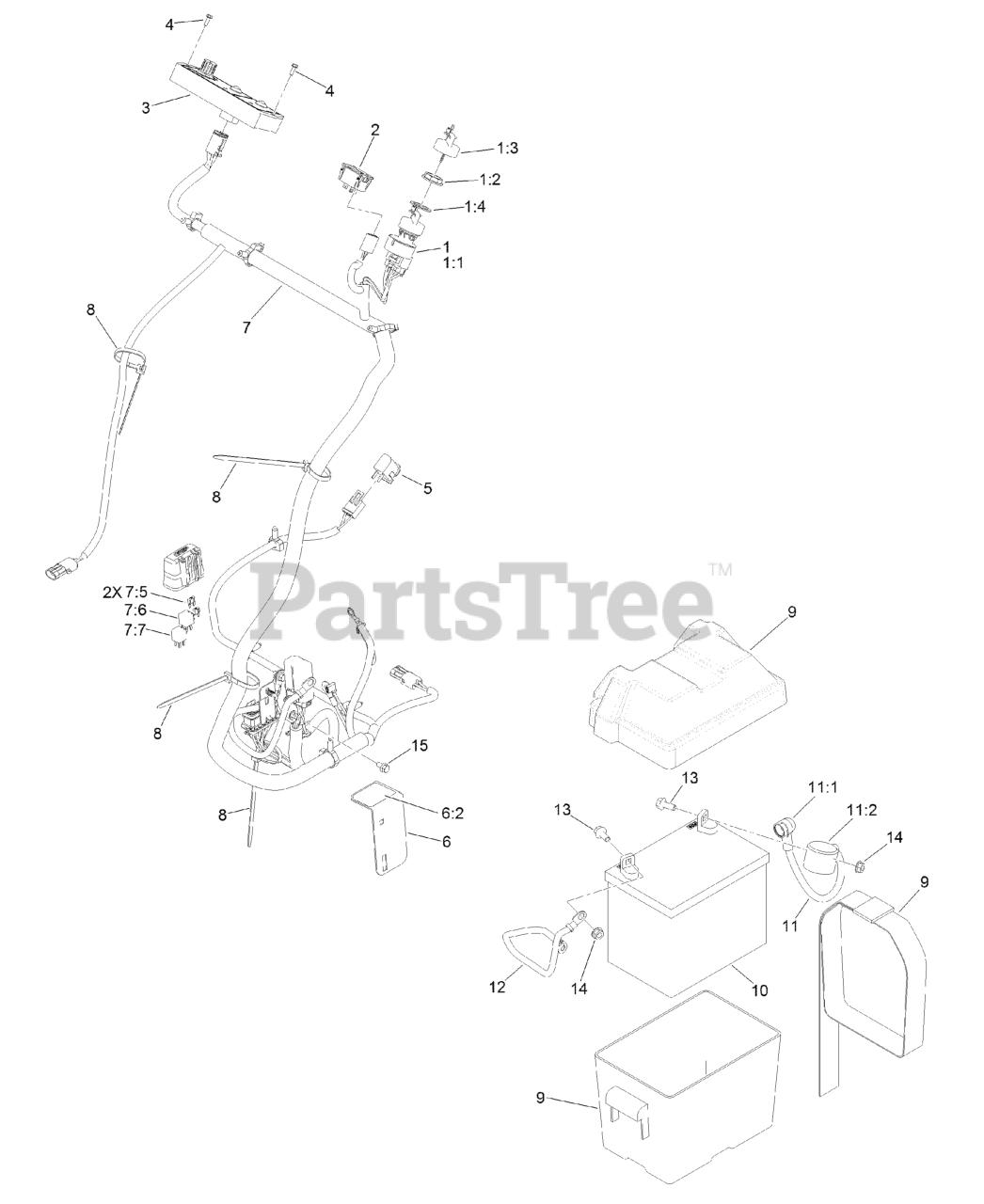

Electrical Assembly Parts Diagram

  • Title

1

Exmark 126-6285

IGNITION SWITCH ASM

$52.99

$

In Stock, Qty 10

0

1:2

Exmark 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 4 left!

0

1:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

Usually ships in 3-6 days

0

1:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 2 left!

0

2

Exmark 126-3931

METER-HOUR

$64.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6622

CONTROLLER-DC

$844.99

$

Usually ships in 3-6 days

0

4

Exmark 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

6

Exmark 135-4714

Fuse Bracket ASM

$41.99

$

Usually ships in 3-6 days

0

6:2

Exmark 135-6949

Decal-Pdm

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 135-4709

Harness-Wiring

$435.99

$

Usually ships in 3-6 days

0

7:5

Exmark 121-8868

FUSE-MINI BLADE, 20 AMP

$5.99

$

Usually ships in 3-6 days

0

7:6

Exmark 126-3991

RELAY-MICRO

$39.99

$

In Stock, only 3 left!

0

7:6

Exmark 126-3991

RELAY-MICRO

$39.99

$

In Stock, only 3 left!

0

7:7

Exmark 135-5221

Relay-Coil, NC, Mp280

$85.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

9

Exmark 126-1424

BATTERY BOX

$46.99

$

Usually ships in 3-6 days

0

10

Battery

Note: Not serviced separately

$

$

Not available

11

Exmark 135-4669

Positive Battery Cable ASM

$13.99

$

Usually ships in 3-6 days

0

11:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

11:2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

12

Exmark 114-9715

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 11

0

14

Exmark 135-2881

NUT-HF

$1.99

$

In Stock, only 3 left!

0

15

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

0
