SST 25 (952711796) - Weed Eater Featherlite String Trimmer (2009-03) Handle & Controls Parts Diagram

Featherlite String Trimmer

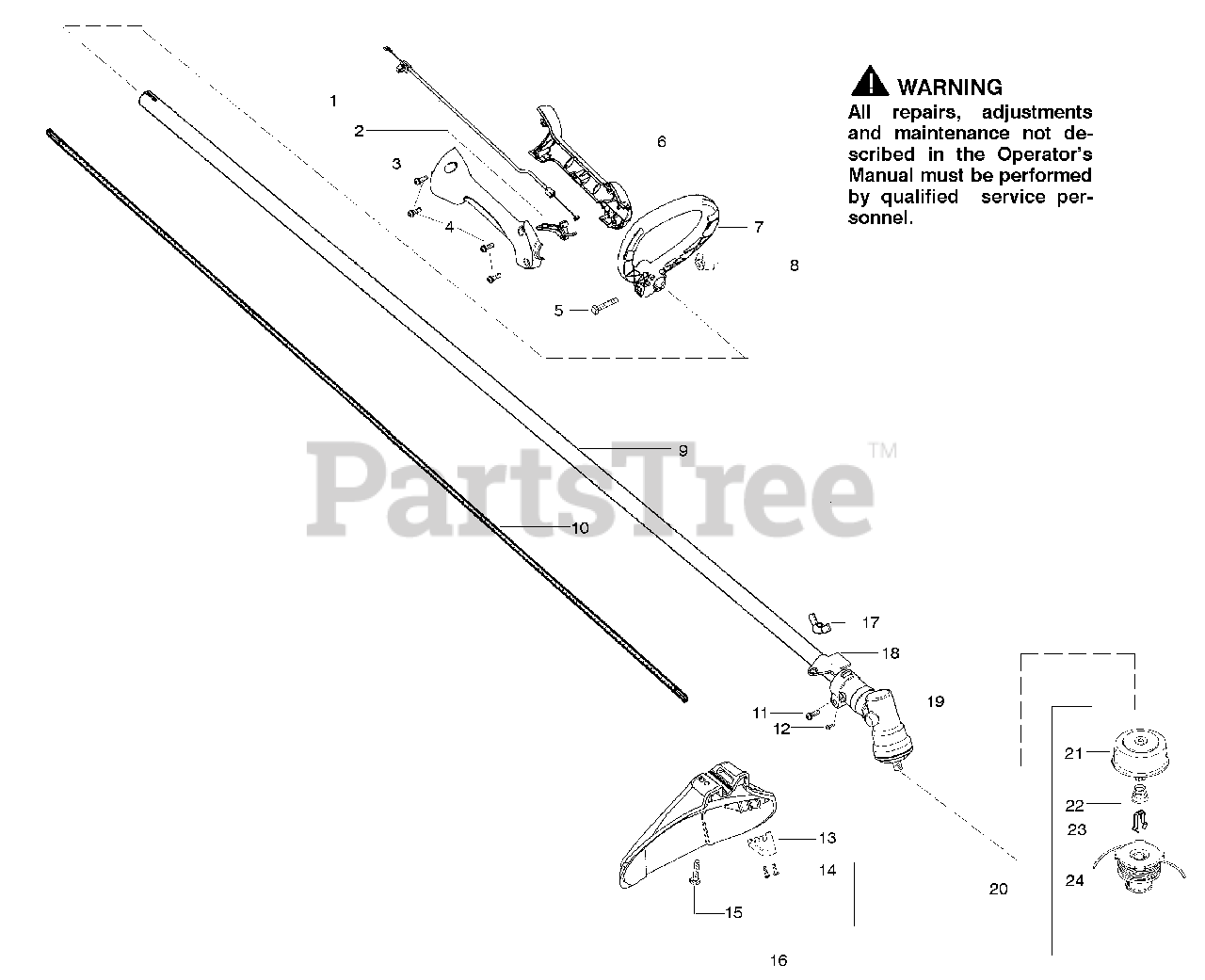

Handle & Controls Parts Diagram

  • Title

1

Electrolux/AYP 530057991

Assy-Throttle Cable

$13.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530058000

Trigger

$

$

Not available

3

Electrolux/AYP 530057582

Throttle Hsg. (Right)

$11.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015880

Screw-Throttle Hsg.

$3.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 530015821

Bolt-Handle/Shield

$

$

Not available

6

Electrolux/AYP 530057581

Throttle Hsg. (Left)

$

$

Not available

7

Electrolux/AYP 530057587

Handle-Assist
(Superseded to 530071747)

$

$

Not available

8

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

9

Electrolux/AYP 530071661

Assy-Drive Shaft Hsg.

$27.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530096075

Shaft- Flex

$

$

Not available

11

Electrolux/AYP 530016014

Screw

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 530016224

Screw- Alignment

$3.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 530052285

Line Limiter

$

$

Not available

14

Electrolux/AYP 530015966

Screw-Line Limiter
(Superseded to 530015957)

$3.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 530015820

Bolt

$2.49

$

In Stock, Qty 10

0

16

Electrolux/AYP 530071771

Kit-Shield Assy

Note: (Incl. 13-15,17)

$21.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

18

Electrolux/AYP 530096067

Bracket-Shield

$

$

Not available

19

Electrolux/AYP 530096068

Assy-Gearbox

$

$

Not available

20

Electrolux/AYP 952711550

Accy-TNG VI Cutting Head

Note: (Incl. 21-24)

$

$

Not available

21

Electrolux/AYP 530095772

Assy-Hub

$

$

Not available

22

Electrolux/AYP 530053241

Spring-Compression

$

$

Not available

23

Electrolux/AYP 530401957

Clip-Retainer-Head

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 952711551

Accy- Spool w/Line

$

$

Not available

24

Electrolux/AYP 545186832

Operator Manual

Note: Not Shown

$

$

Not available

24

Electrolux/AYP 530057720

Decal-Start Inst.

Note: Not Shown

$

$

Not available

24

Electrolux/AYP 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
