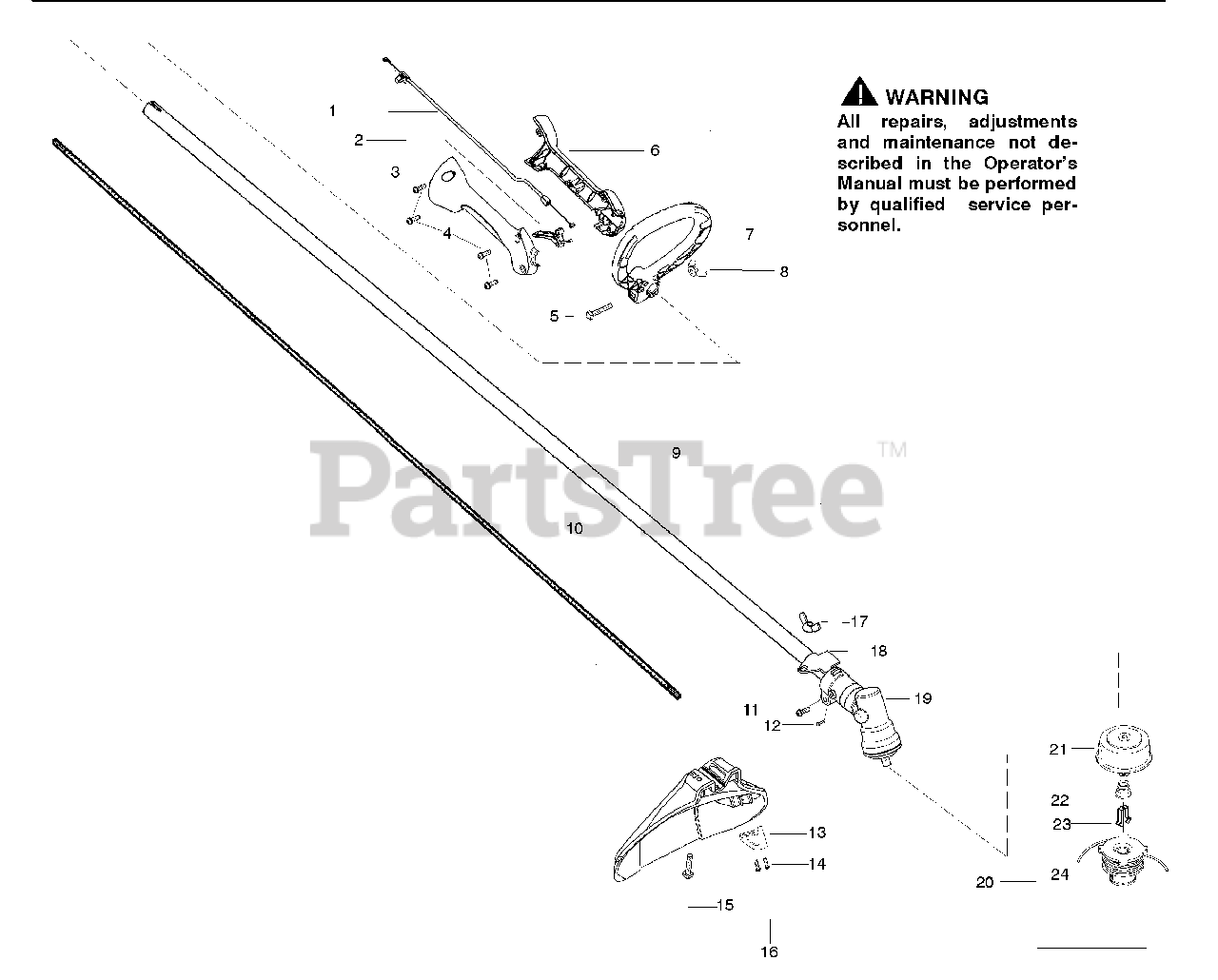

SST 25 - Weed Eater Featherlite String Trimmer Handle & Shaft Assembly Parts Diagram

Featherlite String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530057991

Assy-Throttle Cable

$13.99

$

In Stock, only 3 left!

0

2

Poulan 530058000

Trigger

$6.49

$

In Stock, Qty 20+

0

3

Poulan 530057582

Throttle Hsg.

Note: (Right)

$11.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

Bolt-Handle/Shield

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530057581

Throttle Hsg.

Note: (Left)

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 530057587

Handle-Assist
(Superseded to 530071747)

$

$

Not available

8

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 530071661

Assy-Drive Shaft Hsg.

$40.99

$

Usually ships in 3-10 days

0

10

Poulan 530096075

Shaft-Flex

$

$

Not available

11

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530016224

Screw-Alignment

$4.99

$

In Stock, Qty 5

0

13

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071771

Kit-Shield Assy

Note: (Incl. 13-15,17)

$26.99

$

In Stock, only 2 left!

0

17

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

18

Poulan 530096067

Bracket-Shield

$

$

Not available

19

Poulan 530096068

Assy-Gearbox

$53.99

$

In Stock, only 1 left!

0

20

Poulan 952711550

Accy-TNG VI Cutting Head

Note: (Incl. 21-24)

$

$

Not available

21

Poulan 530095772

Assy-Hub

$

$

Not available

22

Poulan 530053241

Spring-Compression

$

$

Not available

23

Poulan 530401957

Clip-Retainer-Head

$4.99

$

In Stock, Qty 6

0

24

Poulan 952711551

Accy- Spool w/Line

$

$

Not available

Poulan 545186832

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530057720

Decal- Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
