SST5 (80521) - Snapper Front-Tine Tiller, 5hp Tiller Assembly Parts Diagram

Front-Tine Tiller, 5hp

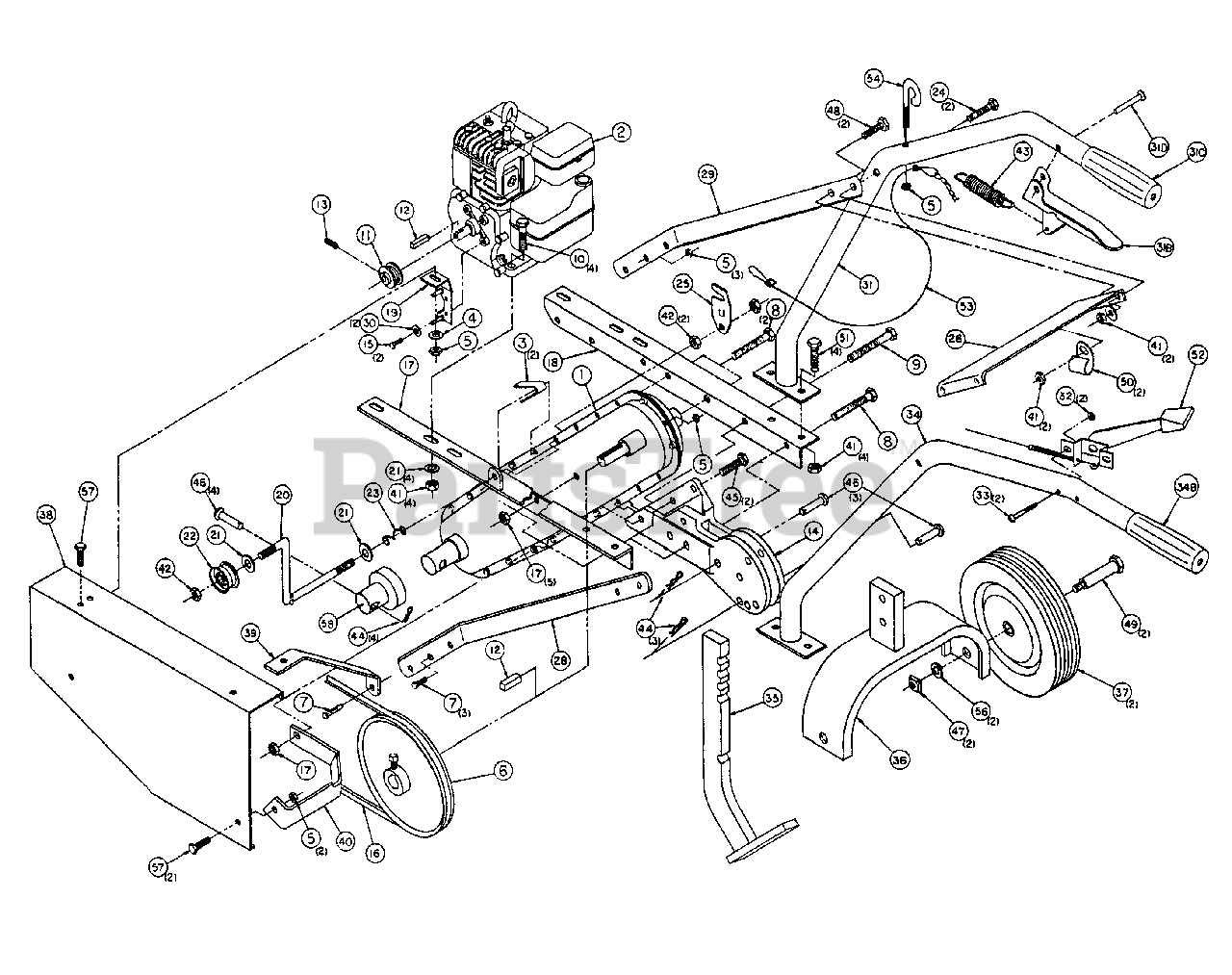

Tiller Assembly Parts Diagram

  • Title
1

Snapper 7091933

Transmission Assembly
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

2

* ENGINE

$

$

Not available

3

Snapper 7090165

"U" Shaped Spacer

$

$

Currently unavailable

4

Snapper 0900232

1/4" Flat Washer

$

$

Currently unavailable

5

Snapper 0900470

1/4-20 Nylok Locknut

$

$

Currently unavailable

6

Snapper 0300109

Pulley - Transmission

$

$

Currently unavailable

7

Snapper 0900060

1/4-20 x 1" HHCS

$

$

Currently unavailable

8

Snapper 0900419

5/16-18 x 2-3/4" HHCS

$

$

Currently unavailable

9

Snapper 0900093

5/16-18 x 3" HHCS

$

$

Currently unavailable

10

Snapper 0900091

5/16-18 x 1-3/4" HHCS

$

$

Currently unavailable

11

Snapper 7061368

Pulley - Engine
(Superseded to 7061368YP)

$93.99

$

Usually ships in 2-12 days

0

12

Snapper 1000018

3/16 x 3/16 x 1" Shaft Key

$

$

Currently unavailable

13

Snapper 0800053

5/16-18 x 5/16" Set Screw

$

$

Currently unavailable

14

Snapper 7092502

Hitch - Rear

$

$

Currently unavailable

15

Snapper 0900408

5/16-24 x 3/4" HHCS

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Snapper 7092205

L.H. Engine Mount

$

$

Currently unavailable

18

Snapper 7092208

R.H. Engine Mount

$

$

Currently unavailable

19

Snapper 7092647

Belt Release Bracket

$

$

Currently unavailable

20

Snapper 7092870

Idler Arm

$

$

Currently unavailable

21

Snapper 0900233

5/16 Flat Washer

$

$

Currently unavailable

22

Snapper 0300111

Idler Pulley

$

$

Currently unavailable

23

Snapper 7091237

Idler Arm Compression Spring

$

$

Currently unavailable

24

Snapper 0900091

5/16-18 x 1-3/4" HHCS

$

$

Currently unavailable

25

Snapper 7060137

Adjustment Link

$

$

Currently unavailable

26

Snapper 7063406RD

Cross Brace

$

$

Currently unavailable

28

Snapper 7093136

Tie Bar L.H.

$

$

Currently unavailable

29

Snapper 7093137

Tie Bar R.H.

$

$

Currently unavailable

30

Snapper 0900394

5/16" Split Lock Washer

$

$

Currently unavailable

31

Snapper 7062637

R.H. Handle Assembly

Note: (Includes 31B, 31C, and 31D)

$

$

Currently unavailable

31B

Snapper 7063254

Clutch Control Lever
(Superseded to 7063254YP)

$319.99

$

Usually ships in 2-12 days

0

31C

Snapper 7060630

Handle Grip

$

$

Currently unavailable

31D

Snapper 7062791

1/4 x 1-3/8" Rivet

$

$

Currently unavailable

32

Snapper 7061539

10-32 Nut

$

$

Currently unavailable

33

Snapper 0900161

10-32 Machine Screw

$

$

Currently unavailable

34

Snapper 7062632

L.H. Handle Assembly

Note: (Includes 31C)

$

$

Currently unavailable

34B

Snapper 7060630

Handle Grip

$

$

Currently unavailable

35

Snapper 7060895

Rear Skid

$

$

Currently unavailable

36

Snapper 7062480

Wheel Frame

$

$

Currently unavailable

37

$

$

Currently unavailable

38

Snapper 7092658BK

Belt Cover

$

$

Currently unavailable

39

Snapper 7092659

Trans. Case to Belt Cover Bracket

$

$

Currently unavailable

40

Snapper 7093080

Engine Mount to Belt Cover Bracket

$

$

Currently unavailable

41

Snapper 0900460

5/16-18 Nylok Locknut

$

$

Currently unavailable

42

Snapper 0900207

3/8-16 Hex Nut

$

$

Currently unavailable

43

Snapper 7060152

Clutch Control Spring

$

$

Currently unavailable

44

Snapper 7060924

1/8" Hair Pin

$

$

Currently unavailable

45

Snapper 0900089

5/16-18 x 1-1/4" HHCS

$

$

Currently unavailable

46

Snapper 7061024

Clevis Pin

$

$

Currently unavailable

47

Snapper 0900285

3/8-16 Square Nut

$

$

Currently unavailable

48

Snapper 0900066

5/16-18 x 3/4" HHCS

$

$

Currently unavailable

49

Snapper 7063349

3/8-16 x 2-1/8" Shoulder Bolt

$

$

Not available

50

Snapper 7062243

Cable Guide

$

$

Currently unavailable

51

Snapper 0900088

5/16-18 x 1, HHCS

$

$

Currently unavailable

52

Snapper 7062666

Throttle Control

$

$

Currently unavailable

53

Snapper 7062250

Clutch Cable Assembly
(Superseded to 7062250YP)

$5.99

$

Usually ships in 2-12 days

0

54

Snapper 0900467

Pull Cord Holder

$

$

Currently unavailable

56

Snapper 0900228

3/8" Split Lock Washer

$

$

Currently unavailable

57

Snapper 0900012

1/4-20 x 3/4" HHCS

$

$

Currently unavailable

58

Snapper 7071338

L.H. Inside Slasher Tine (Not shown)

$

$

Currently unavailable

59

Snapper 7071339

R.H. Inside Slasher Tine (Not shown)

$

$

Currently unavailable

60

Snapper 7071704

L.H. Outside Slasher Tine (Not shown)

$

$

Currently unavailable

61

Snapper 7071705

R.H. Outside Slasher Tine (Not shown)

$

$

Currently unavailable
