SSZ-18CV - Scag Super Z Zero-Turn Mower, 18hp Kohler (SN: 50000 - 59999) CUTTER DECK 48" Parts Diagram

Super Z Zero-Turn Mower, 18hp Kohler

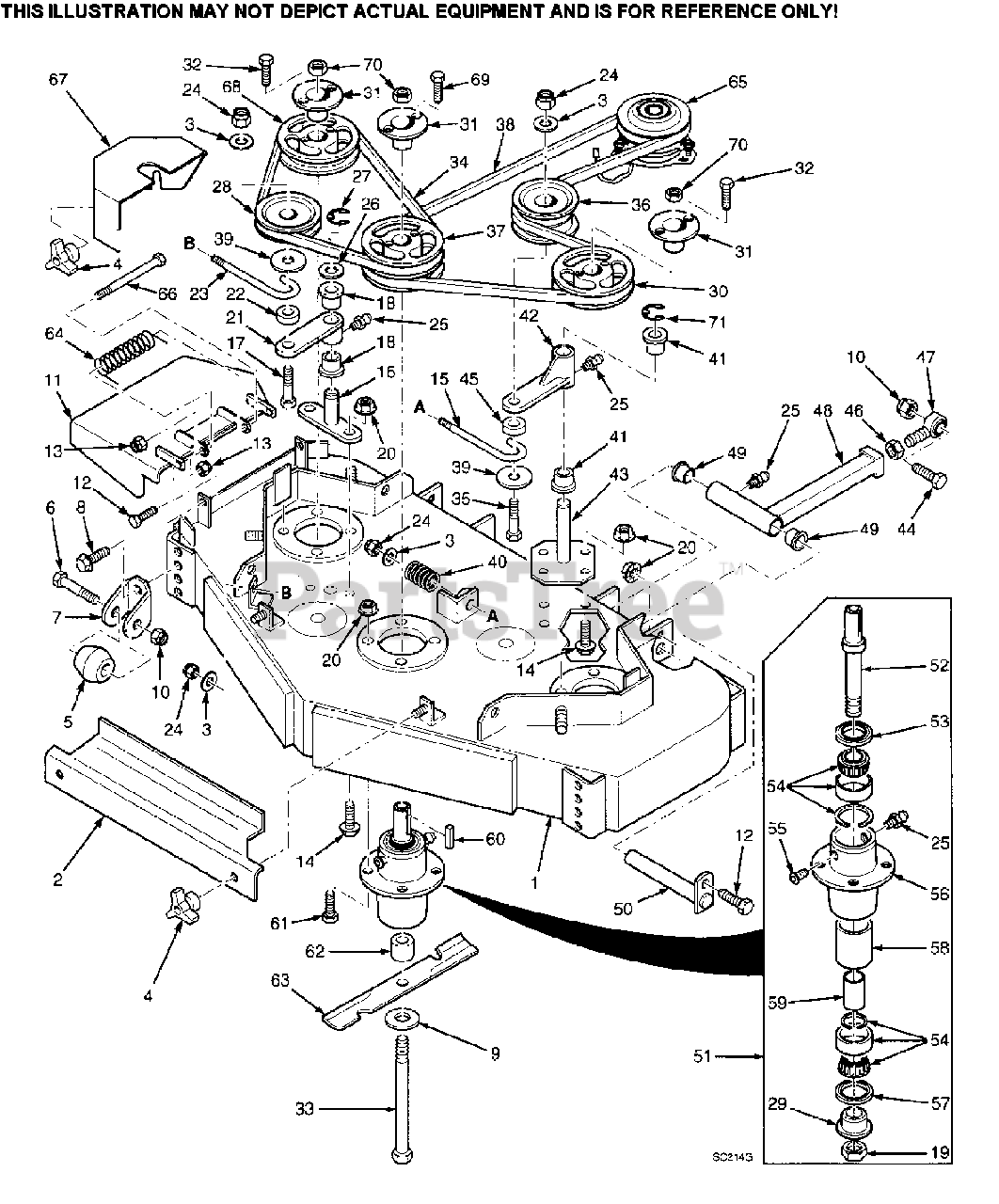

CUTTER DECK 48" Parts Diagram

  • Title

1

Scag 46756

CUTTER DECK(INCLUDES DECALS)
(Superseded to 461133)

$2817.99

$

Usually ships in 2-12 days

0

2

Scag 421058

BELT COVER, FRONT

$47.99

$

Usually ships in 2-12 days

0

3

Scag 04041-07

FLATWASHER, 3/8" SPECIAL(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

5

Scag 48584

ANTI-SCALP WHEEL

$13.99

$

Usually ships in 2-12 days

0

6

Scag 04001-79

BOLT, HEX HEAD 5/8-11 X 4-1/2"

$4.99

$

In Stock, Qty 11

0

7

Scag 42882

ANTI-SCALP WHEEL BRACKET
(Superseded to 461086)

$67.99

$

Usually ships in 2-12 days

0

8

Scag 04017-27

BOLT, HEX SERRATED FLANGE 3/8-16 X 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04040-10

FLATWASHER, 5/8"(.688 X 1.75 X .134)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04021-13

NUT, HEX ELASTIC STOP 5/8-11

$1.49

$

In Stock, Qty 11

0

11

Scag 46727

DISCHARGE CHUTE
(Superseded to 461293)

$84.99

$

Usually ships in 2-12 days

0

12

Scag 04001-09

BOLT, HEX HEAD 5/16-18 X 1"

$0.99

$

In Stock, Qty 16

0

13

Scag 04021-10

NUT, HEX ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04017-16

BOLT, HEX SERRATED FLANGE 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 10

0

15

Scag 44078

"J" ROD

$6.99

$

In Stock, only 2 left!

0

16

Scag 45037

IDLER PIVOT BASE

$31.99

$

Usually ships in 2-12 days

0

17

Scag 04001-46

BOLT, HEX HEAD 3/8-16 X 2-1/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 48100-05

BUSHING

$0.99

$

In Stock, Qty 18

0

19

Scag 481035

NUT, SPECIAL 1-1/16-18

$7.99

$

In Stock, Qty 9

0

20

Scag 04019-03

NUT, HEX SERRATED FLANGE 5/16-18

$0.99

$

In Stock, Qty 16

0

21

Scag 46081

IDLER ARM(INCLUDES BUSHINGS & GREASE

$47.99

$

Usually ships in 2-12 days

0

22

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

23

Scag 43028

"J" ROD

$4.99

$

In Stock, only 2 left!

0

24

Scag 04021-09

NUT, HEX ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

26

Scag 04041-08

FLATWASHER, 3/4"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04041-08S

FLATWASHER, 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

27

Scag 04050-02

RING, RETAINING 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 10

0

28

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 15

0

29

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

0

30

Scag 48924

PULLEY, LH SPINDLE
(Superseded to 482744)

$30.99

$

In Stock, Qty 8

0

31

Scag 48926

TAPERED HUB, 1-1/8 BORE

$31.99

$

In Stock, Qty 19

0

32

Scag 04001-01

BOLT, HEX HEAD 1/4-20 X 3/4"

$0.99

$

In Stock, Qty 19

0

33

Scag 04001-41

BOLT, HEX HEAD 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

34

Scag 48087

BELT, RH BLADE DRIVE

$44.99

$

In Stock, only 1 left!

0

35

Scag 04001-23

BOLT, HEX HEAD 3/8-16 X 4-1/2"

$2.49

$

In Stock, Qty 8

0

36

Scag 48550

PULLEY, IDLER CUTTER ENGAGEMENT
(Superseded to 483210)

$56.99

$

In Stock, Qty 19

0

37

Scag 48923

PULLEY, DOUBLE GROOVE

$113.99

$

In Stock, only 1 left!

0

38

Scag 48799

BELT, BLADE DRIVE

$89.99

$

Usually ships in 2-12 days

0

39

Scag 04041-12

FLATWASHER, 3/8"(.375 X 1.5 X .06)

$0.99

$

In Stock, Qty 11

0

40

Scag 48807

SPRING, IDLER TENSION

$32.99

$

In Stock, only 1 left!

0

41

Scag 48100-02

BUSHING

$3.99

$

Usually ships in 2-12 days

0

42

Scag 46749

IDLER ARM(INCLUDES BUSHINGS & GREASE

$139.99

$

Usually ships in 2-12 days

0

43

Scag 45329

IDLER PIVOT BASE

$40.99

$

Usually ships in 2-12 days

0

44

Scag 04001-97

BOLT, HEX HEAD 5/8-11 X 3"

$4.49

$

Usually ships in 2-12 days

0

46

Scag 04020-16

NUT, HEX 5/8-18 UNF

$0.99

$

In Stock, Qty 19

0

47

Scag 48763

ROD END

$59.99

$

In Stock, Qty 10

0

48

Scag 46460

PUSH ARM(INCLUDES 25, 46, 47, AND 49)
(Superseded to 461516)

$216.99

$

In Stock, only 4 left!

0

49

Scag 48100-06

BUSHING

$1.49

$

In Stock, Qty 9

0

50

Scag 45332

PUSH ARM SHAFT
(Superseded to 451240)

$53.99

$

In Stock, Qty 11

0

51

Scag 46631

SPINDLE ASSEMBLY
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

52

Scag 43298

SPINDLE SHAFT
(Superseded to 43589)

$59.99

$

In Stock, Qty 7

0

53

Scag 481024

SEAL, TOP

$4.99

$

In Stock, Qty 20+

0

54

Scag 481022

BEARING ASSEMBLY(1 REQUIRED PER SPINDLE)

$61.99

$

In Stock, Qty 11

0

55

Scag 48667

RELIEF FITTING, TAPERED SPINDLE

$

$

Not available

56

Scag 43294

SPINDLE HOUSING
(Superseded to 43644)

$60.99

$

Usually ships in 2-12 days

0

57

Scag 481025

SEAL, BOTTOM

$4.99

$

In Stock, Qty 20+

0

58

Scag 43312

SPACER, OUTSIDE

$19.99

$

In Stock, only 1 left!

0

59

Scag 43296

SPACER, INSIDE

$8.49

$

In Stock, only 3 left!

0

60

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

61

Scag 04001-10

BOLT, HEX HEAD 5/16-18 X 1-1/4"

$0.99

$

In Stock, Qty 20+

0

62

Scag 43309

SPACER, TAPERED SPINDLE
(Superseded to 43590)

$17.99

$

In Stock, Qty 20+

0

63

Scag 48110

CUTTER BLADE, 16-1/2" STANDARD
(Superseded to 481706)

$21.99

$

In Stock, Qty 20+

0

63

Scag 48184

CUTTER BLADE, 16-1/2" HIGH LIFT
(Superseded to 481710)

$41.99

$

Usually ships in 2-12 days

0

64

Scag 481050

SPRING, DISCHARGE CHUTE
(Superseded to 482245)

$11.99

$

In Stock, Qty 6

0

65

Scag 48786

ELECTRIC CLUTCH
(Superseded to 461074)

$519.99

$

Usually ships in 2-12 days

0

66

Scag 04001-108

BOLT, HEX HEAD 5/16-18 X 4.25"

$2.49

$

In Stock, Qty 10

0

67

Scag 421616

BELT COVER, LH

$69.99

$

Usually ships in 2-12 days

0

67

Scag 421615

BELT COVER, RH

$80.99

$

Usually ships in 2-12 days

0

68

Scag 48924

PULLEY, RH SPINDLE
(Superseded to 482744)

$30.99

$

In Stock, Qty 8

0

69

Scag 04001-109

BOLT, HEX HEAD 1/4-20 X 1.375 FULL THREAD

$2.49

$

In Stock, Qty 6

0

70

NUT, HEX 5/8-11 UNC

$

$

Not available

71

Scag 04050-05

RING, RETAINING 1-1/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0
