SSZ-18CV - Scag Super Z Zero-Turn Mower, 18hp Kohler (SN: 60001 - 69999) BDU-10L Hydraulic Pump Parts Diagram

Super Z Zero-Turn Mower, 18hp Kohler

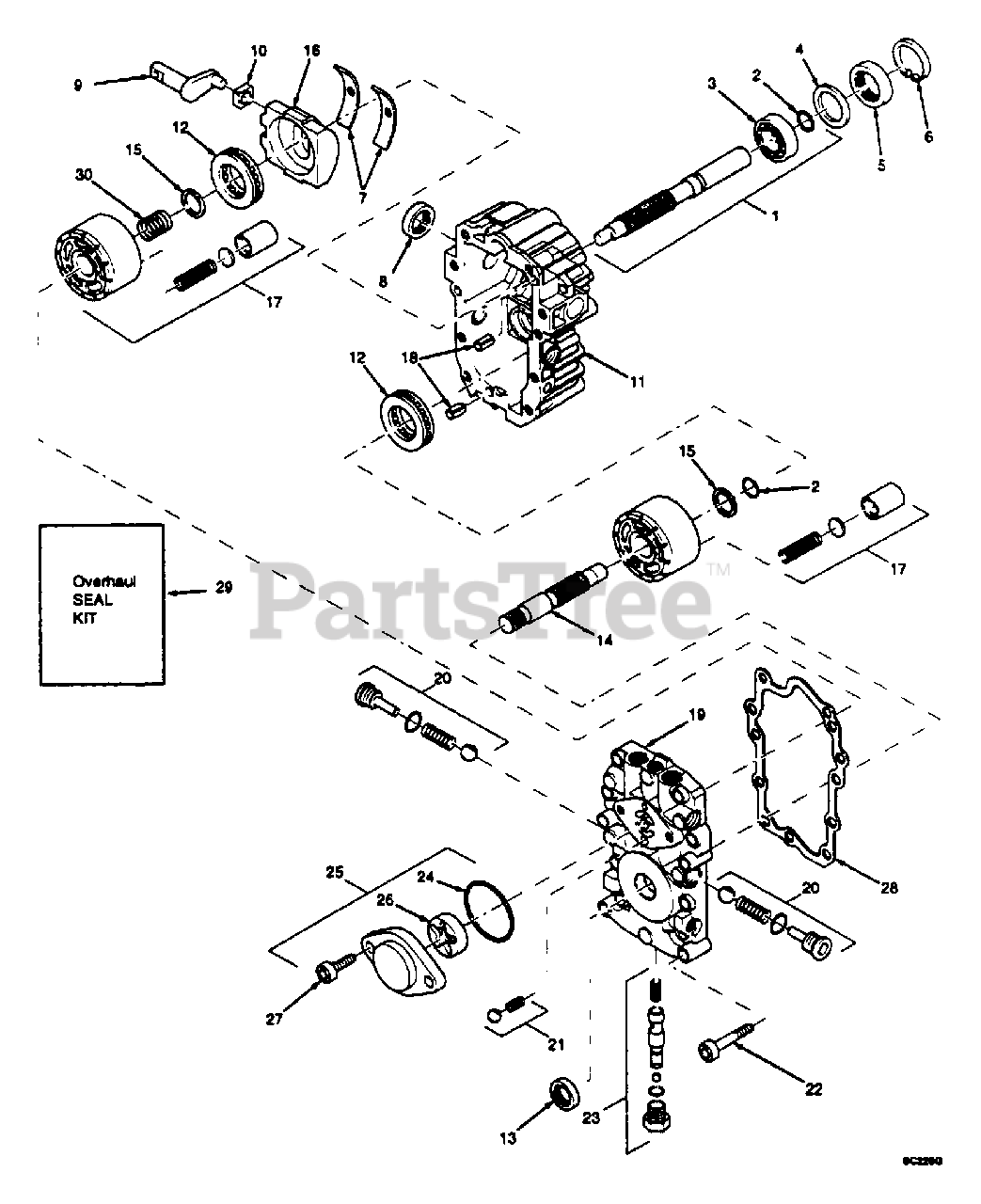

BDU-10L Hydraulic Pump Parts Diagram

  • Title

1

Scag HG2513038

Pump Shaft Kit

$180.99

$

Usually ships in 2-12 days

0

2

Scag HG2003016

Wire Retaining Ring

$2.99

$

Usually ships in 2-12 days

0

3

Scag HG2003043

Ball Bearing

$29.99

$

In Stock, only 1 left!

0

4

Scag HG2003018

Spacer

$2.99

$

Usually ships in 2-12 days

0

5

Scag HG9008000-0128

Lip Seal (16 x 35 x 7)

$5.49

$

In Stock, only 4 left!

0

6

Scag HG2003052

Retaining Ring

$2.99

$

In Stock, only 1 left!

0

7

Scag HG2003023

Cradle Bearing
(Superseded to HG52619)

$17.99

$

Usually ships in 2-12 days

0

8

Scag HG9008000-0126

Lip Seal (12 x 35 x 7)

$3.99

$

Usually ships in 2-12 days

0

9

Scag HG2003005

Trunnion Arm

$

$

Not available

10

Scag HG2000015

Slot Guide

$9.49

$

Usually ships in 2-12 days

0

11

Scag HG2513020

Transmission Housing Kit RH

$

$

Not available

11

Scag HG2513003

Transmission Housing Kit LH

$352.99

$

Usually ships in 2-12 days

0

12

Scag HG2003044

Thrust Ball Bearing Assembly
(Superseded to HG50551)

$25.99

$

Usually ships in 2-12 days

0

13

Scag HG9008000-0127

Lip Seal (15 x 24 x 7)

$4.99

$

Usually ships in 2-12 days

0

14

Scag HG2003032

Motor Shaft

$

$

Not available

15

Scag HG2003017

Block Thrust Washer

$

$

Not available

16

Scag HG2003087

Variable Swash Plate

$

$

Not available

17

HG70079

BDP-10L Block Assembly

$

$

Not available

18

Scag HG9004800-2506

Pin ST Holder

$

$

Not available

19

Scag HG2513006

Center Section Kit

$

$

Not available

20

Scag HG2510008

Check Valve Kit

$

$

Not available

21

Scag HG2510011

Charge Relief Kit

$6.49

$

Usually ships in 2-12 days

0

22

Scag HG9007314-0808

Socket Head Cap Screw

$

$

Not available

23

Scag HG2513011

Bypass Valve Kit

$64.99

$

Usually ships in 2-12 days

0

24

Scag HG9004101-1340

O-Ring

$2.99

$

Usually ships in 2-12 days

0

25

Scag HG2513027

Charge Pump Cover

$162.99

$

Usually ships in 2-12 days

0

26

Scag HG50273

Gerotor Assembly

$

$

Not available

27

Scag HG50095

Capscrew (6mm x 20")

$

$

Not available

28

Scag HG2003060

Center Section Gasket

$2.99

$

Usually ships in 2-12 days

0

29

Scag HG2513013

Overhaul Seal Kit

$41.99

$

Usually ships in 2-12 days

0

30

Scag HG2000025

Spring Block

$

$

Not available
