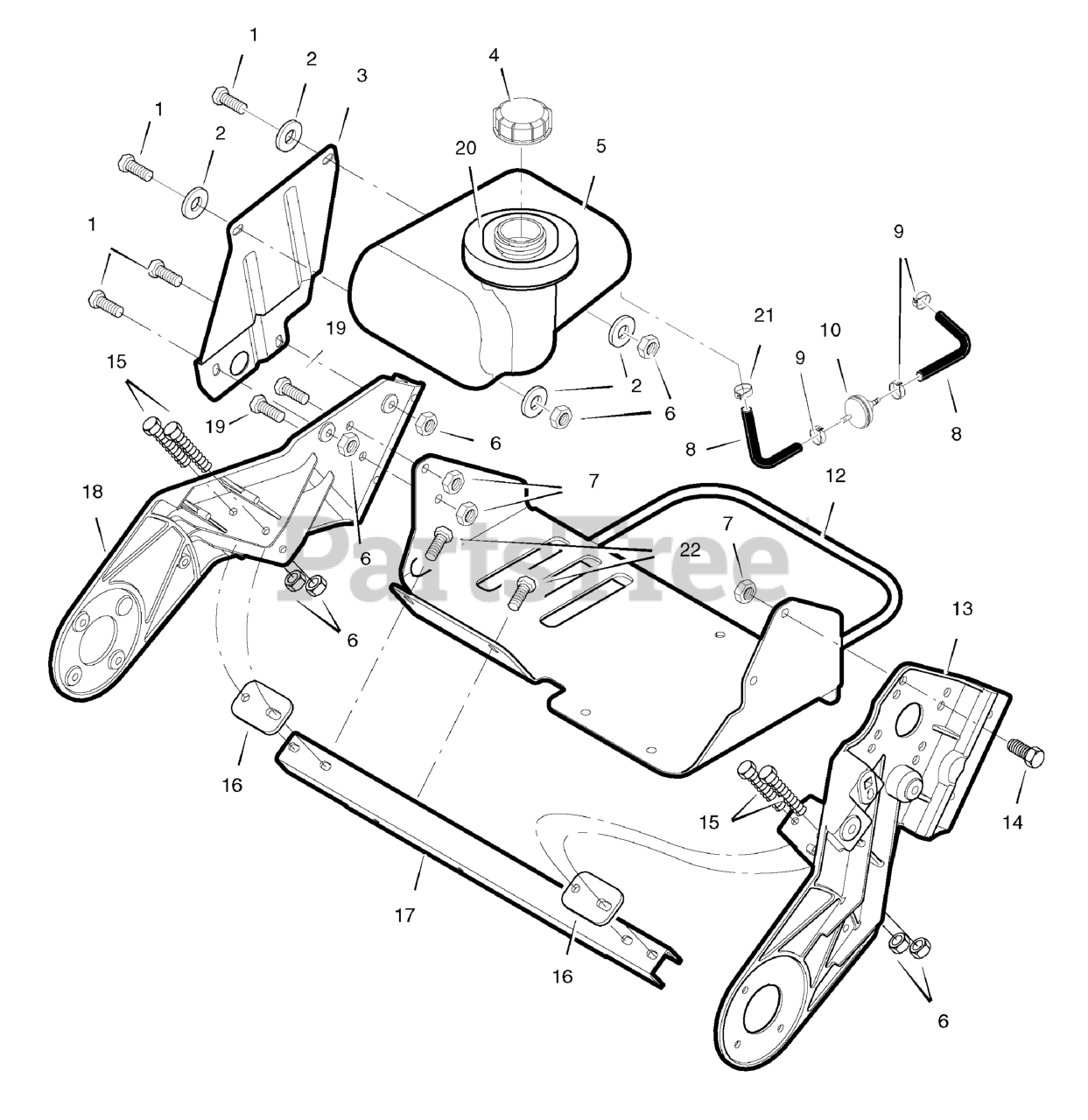

ST 0522 (622594x16NA) - Frontier 22" Snow Thrower (2006) Frame and Fuel Tank Parts Diagram

22" Snow Thrower

Frame and Fuel Tank Parts Diagram

  • Title

1

Murray MT302628MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

2

Murray MT71067MA

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

3

Murray MT1740031E701MA

SPROCKET, Fuel Tank

$

$

Currently unavailable

4

Murray MT1715917SM

CAP, Fuel Tank

$

$

Currently unavailable

5

Murray MT1716684SM

TANK, Fuel

$

$

Currently unavailable

6

Murray MT73826MA

NUT, Hex 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

7

Murray MT71391MA

NUT, Hex 5/16 - 18
(Superseded to 71391MA)

$4.49

$

In Stock, only 1 left!

0

8

Murray MT1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$

$

Currently unavailable

9

Murray MT323387MA

CLAMP, Fuel Line

$

$

Currently unavailable

10

Murray MT298090S

FILTER, Fuel Line

$

$

Currently unavailable

12

Murray MT1501849E701MA

CRADLE ASSEMBLY, Engine

$

$

Currently unavailable

13

Murray MT1501872E701MA

FRAME, L.H.

$

$

Currently unavailable

14

Murray MT48901MA

SCREW, 5/16-18 x 5/8

$

$

Currently unavailable

15

Murray MT180044MA

SCREW, 1/4 - 20 x 2

$

$

Currently unavailable

16

Murray MT335351MA

PLATE, Mounting Support

$

$

Currently unavailable

17

Murray MT1501851MA

SUPPORT, Frame

$

$

Currently unavailable

18

Murray MT1501871E701MA

FRAME, R.H.

$

$

Currently unavailable

19

Murray MT180077MA

SCREW, 5/16-18 x 3/4

$

$

Currently unavailable

20

Murray MT1740032MA

RING, Foam

$

$

Currently unavailable

21

Murray MT47345MA

CLAMP, Fuel Line
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

22

Murray MT310169MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0
