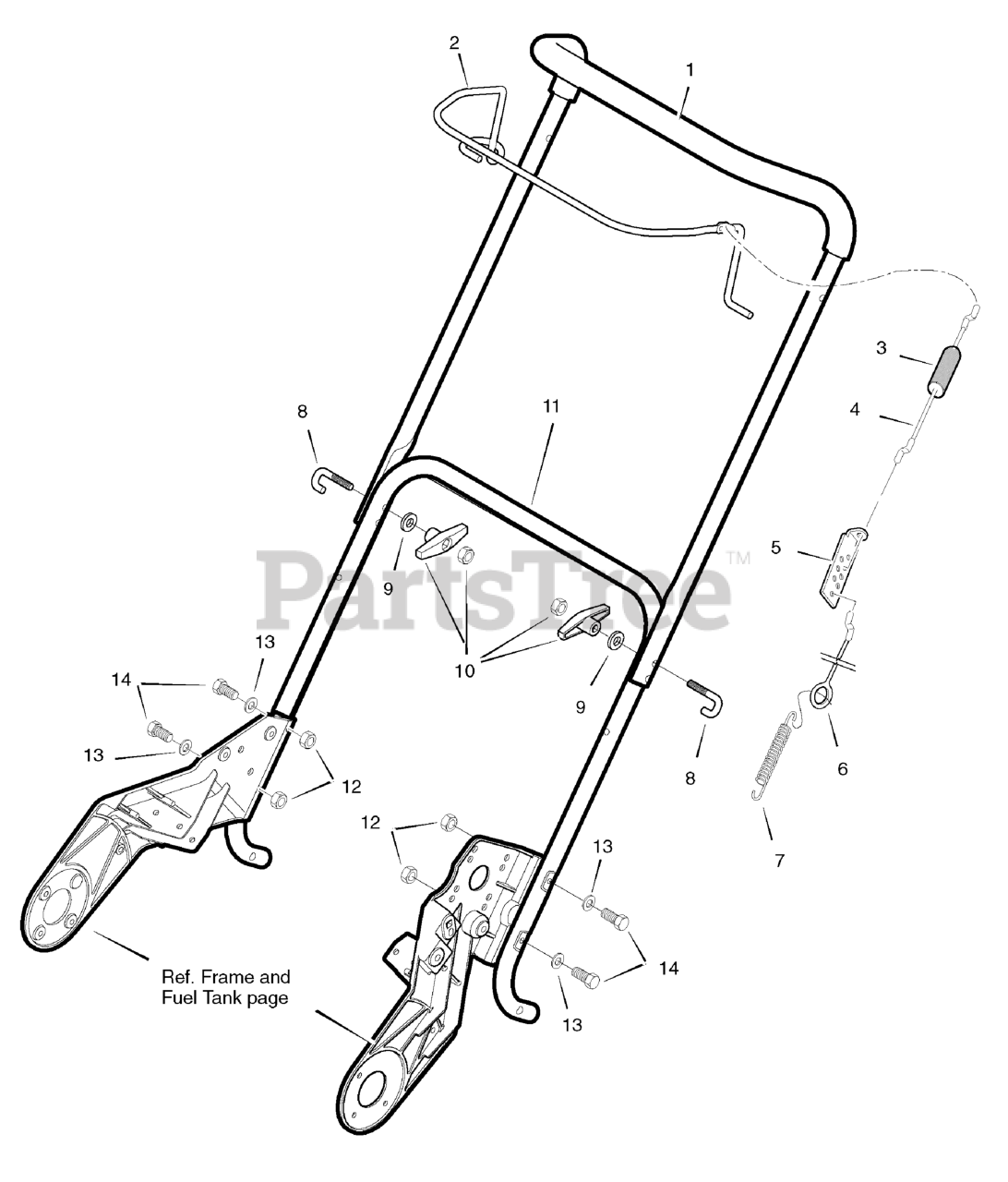

ST 0522 (622594x16NA) - Frontier 22" Snow Thrower (2006) Handle Assembly Parts Diagram

22" Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

Murray MT1502001MA

HANDLE & GRIP ASSEMBLY

$

$

Currently unavailable

2

Murray MT1501861E701MA

CONTROL, Bail

$

$

Currently unavailable

3

Murray MT308146MA

BOOT, Clutch Spring
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

4

Murray MT1502042MA

CABLE, Upper Control

$

$

Currently unavailable

5

Murray MT313441MA

BRACKET, Control Adjust
(Superseded to 313441MA)

$

$

Not available

6

Murray MT313448MA

CABLE, Lower Control

$

$

Currently unavailable

7

Murray MT313471MA

SPRING
(Superseded to 313471MA)

$4.99

$

In Stock, only 1 left!

0

8

Murray MT1501877MA

Bolt, "U"

$

$

Currently unavailable

9

Murray MT311936MA

WASHER
(Superseded to 311936MA)

$7.49

$

In Stock, only 2 left!

0

10

Murray MT1501260MA

KNOB
(Superseded to 1501260MA)

$7.99

$

In Stock, only 3 left!

0

11

Murray MT1501860E701MA

HANDLE, Lower

$

$

Currently unavailable

12

Murray MT73826MA

NUT
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

13

Murray MT71067MA

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

14

Murray MT313674MA

SCREW, 1/4 - 20 x 1-1/4

$

$

Currently unavailable
