ST 0522 E (622594x16NB) - Frontier 22" Snow Thrower (2007) Engine Drive System Parts Diagram

22" Snow Thrower

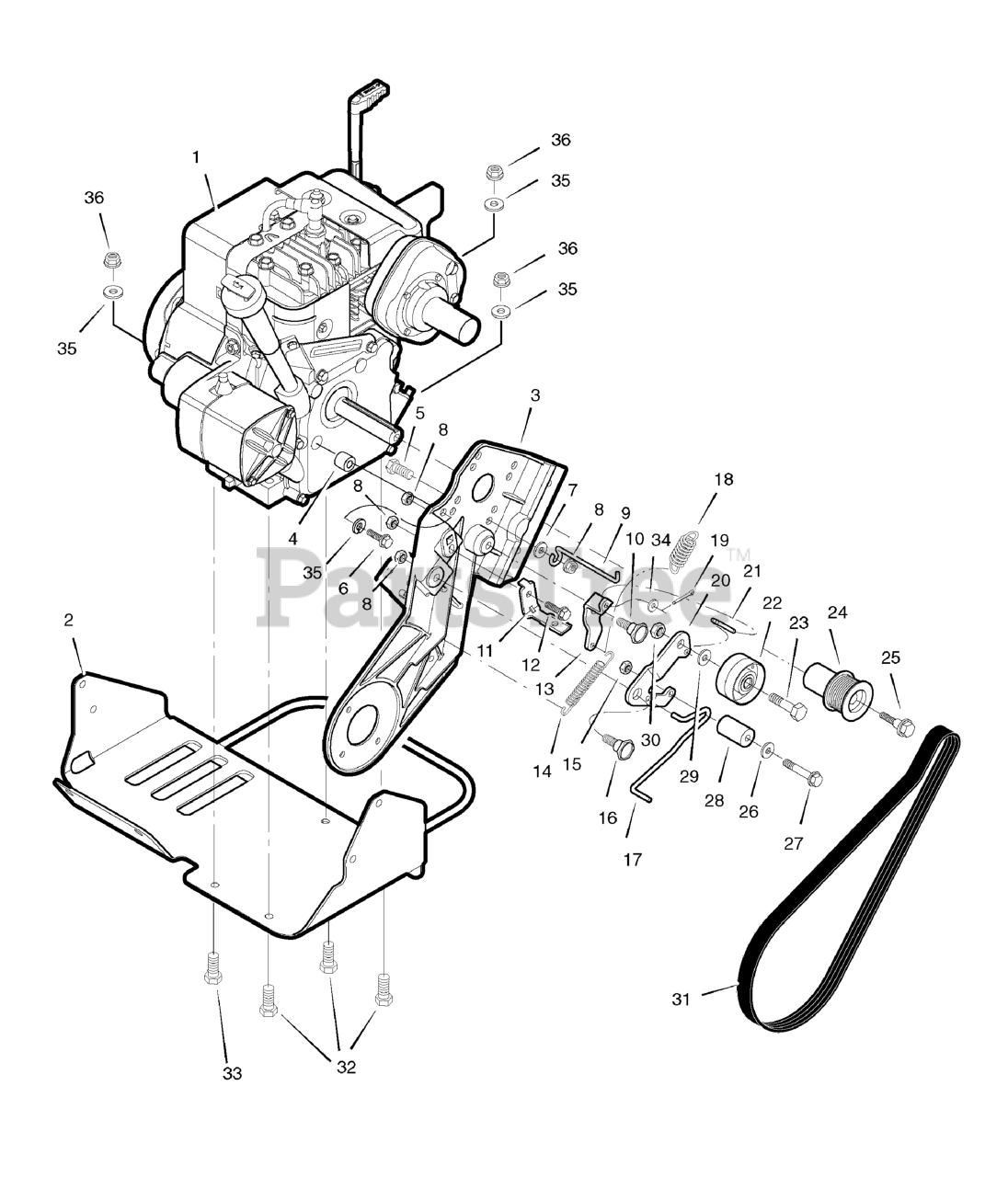

Engine Drive System Parts Diagram

  • Title

1

ENGINE, 5HP 4CY B&S Recoil Start *

Note: (Model # 09A4120267E1)

$

$

Not available

1

ENGINE, 5HP 4CY B&S Electric Start *

Note: (Model # 09A4130202E1)

$

$

Not available

2

Murray MT1501849E701MA

CRADLE ASSEMBLY, Engine

$

$

Currently unavailable

3

Murray MT1501872E701MA

FRAME, L.H.

$

$

Currently unavailable

4

Murray MT1502027MA

ANTI-VIBRATION MOUNT, Engine

$

$

Currently unavailable

5

Murray MT1X216MA

BOLT, Hex, 5/16 - 18

$

$

Currently unavailable

6

Murray MT6X118MA

BOLT, Hex, 5/16 - 24

$

$

Currently unavailable

7

Murray MT71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

8

Murray MT71391MA

NUT, Hex Center Lock, 5/16 - 18
(Superseded to 71391MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray MT334079MA

GUIDE, Belt

$

$

Currently unavailable

10

Murray MT333594MA

BOLT
(Superseded to 333594MA)

$21.99

$

In Stock, only 1 left!

0

11

Murray MT333970MA

PAD, Brake

$

$

Currently unavailable

12

Murray MT579052MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

13

Murray MT313444MA

IDLER, Arm Pivot

$

$

Currently unavailable

14

Murray MT313473MA

SPRING

$

$

Currently unavailable

15

Murray MT73826MA

NUT, Hex 1/4 - 20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

16

Murray MT333594MA

BOLT
(Superseded to 333594MA)

$21.99

$

In Stock, only 1 left!

0

17

Murray MT1501009MA

WIRE, Brake

$

$

Currently unavailable

18

Murray MT313471MA

SPRING
(Superseded to 313471MA)

$5.49

$

Usually ships in 2-12 days

0

19

Murray MT121223MA

PIN, Cotter

$

$

Currently unavailable

20

Murray MT320077MA

ARM, Idler

$

$

Currently unavailable

21

Murray MT313436MA

ROD, Clutch Linkage

$

$

Currently unavailable

22

Murray MT48924MA

PULLEY, Idler

$

$

Currently unavailable

23

Murray MT302637MA

SCREW, 3/8 - 16 x 1-1/2

$

$

Currently unavailable

24

Murray MT1501908MA

PULLEY, Engine

$

$

Currently unavailable

25

Murray MT1501907MA

BOLT, Engine Pulley

$

$

Currently unavailable

26

Murray MT71067MA

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Murray MT180044MA

SCREW, 1/4 - 20 x 2

$

$

Currently unavailable

28

Murray MT1501010MA

PINCH ROLLER

$

$

Currently unavailable

29

Murray MT301188MA

WASHER, Flat

$

$

Currently unavailable

30

Murray MT590MA

NUT, Hex
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

31

Murray MT333721MA

BELT, Drive
(Superseded to 333721MA)

$

$

Not available

32

Murray MT001X81MA

BOLT, Hex, 5/16 - 18

$

$

Currently unavailable

33

Murray MT47792MA

SCREW, 3/8 - 16 x 1

$

$

Currently unavailable

34

Murray MT414106MA

WASHER, Flat

$

$

Currently unavailable

35

Murray MT71060MA

LOCKWASHER, Split
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

36

Murray MT71037MA

NUT, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0
