ST 0524 (624554x16A) - Frontier 24" Snow Thrower (2005) Gear Case Parts Diagram

24" Snow Thrower

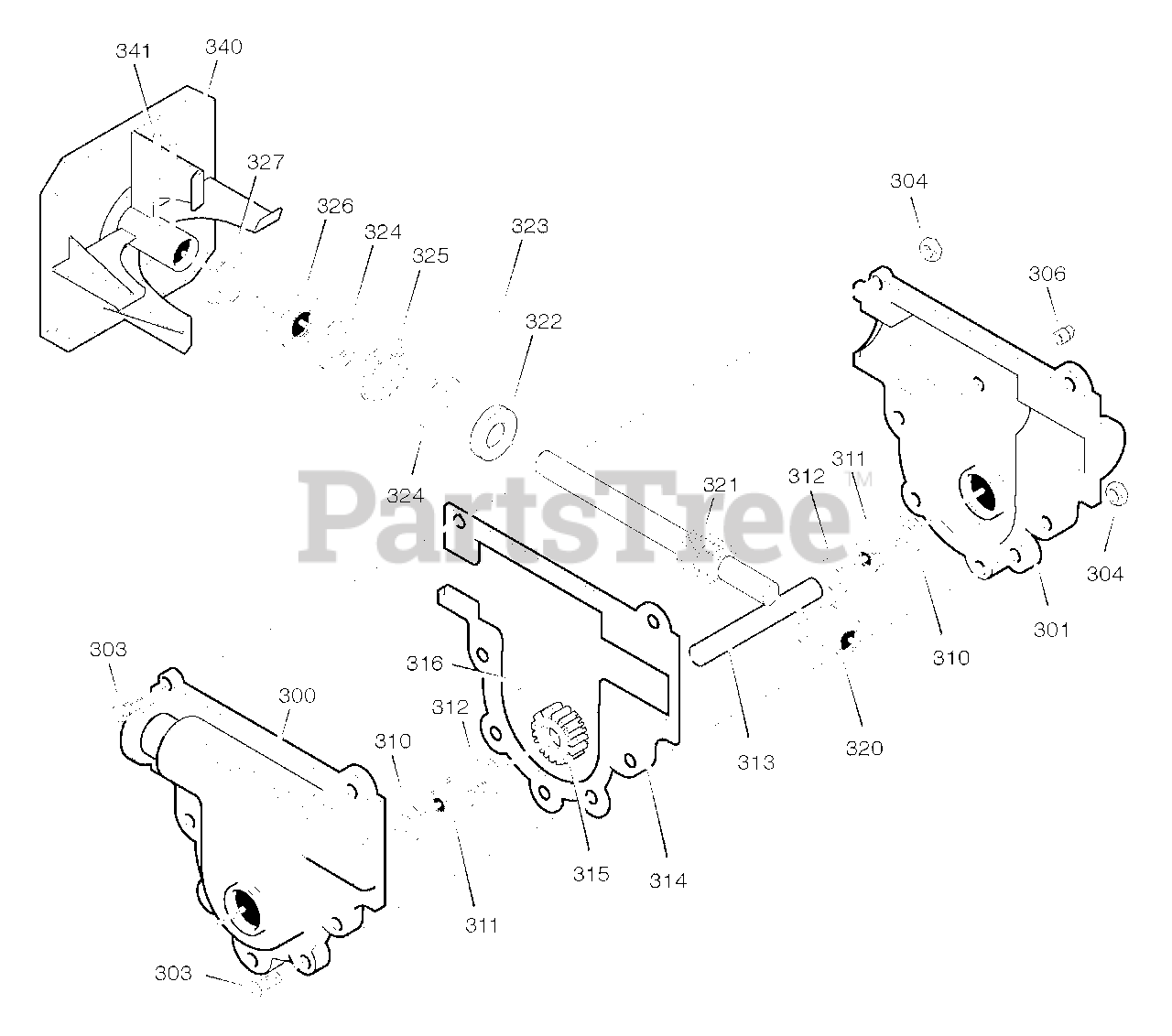

Gear Case Parts Diagram

  • Title

300

Murray MT10577MA

CASE, GEAR, RH
(Superseded to 10577MA)

$22.99

$

In Stock, only 1 left!

0

301

Murray MT10576MA

CASE, GEAR, LH
(Superseded to 10576MA)

$22.99

$

Usually ships in 2-12 days

0

303

Murray MT710025

SCREW,1/4-20X.75

$

$

Currently unavailable

304

Murray MT15X143MA

NUT,1/4-20
(Superseded to 15X143MA)

$4.99

$

In Stock, only 4 left!

0

306

Murray MT9344

SCREW, 3/8-16 x 0.50

$

$

Currently unavailable

310

Murray MT9566MA

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, Qty 10

0

311

Murray MT50304MA

BEARING, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 16

0

312

Murray MT48275MA

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

313

Murray MT340286MA

SHAFT, AUGER OUTPUT
(Superseded to 340286MA)

$57.99

$

Usually ships in 2-12 days

0

314

Murray MT51279MA

GASKET, GEAR BOX
(Superseded to 51279MA)

$12.99

$

In Stock, only 2 left!

0

315

Murray MT51405MA

GEAR, WORM
(Superseded to 51405MA)

$78.99

$

In Stock, only 3 left!

0

316

Murray MT431787

KEY, WOODRUFF #61

$

$

Currently unavailable

320

Murray MT50221MA

BRNG, FL
(Superseded to 50221MA)

$8.49

$

Usually ships in 2-12 days

0

321

Murray MT1501128MA

SHAFT, AUGER INPUT (IMPELLER)
(Superseded to 1501128MA)

$84.99

$

Usually ships in 2-12 days

0

322

Murray MT580295

COLLAR, THRUST

$

$

Currently unavailable

323

Murray MT454565MA

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

324

Murray MT48275MA

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

325

Murray MT50684MA

BRNG, ROLL
(Superseded to 50684MA)

$6.49

$

In Stock, only 3 left!

0

326

Murray MT50304MA

BRNG, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 16

0

327

Murray MT9566MA

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, Qty 10

0

340

Murray MT760194E701MA

IMPELLER
(Superseded to 760194E701MA)

$246.99

$

Usually ships in 2-12 days

0

341

Murray MT454565MA

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

--

Murray MT333431MA

LUBRIPLATE, GR132, 14oz

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0
