ST 0524 (624554x16A) - Frontier 24" Snow Thrower (2005) Handle Assembly Parts Diagram

24" Snow Thrower

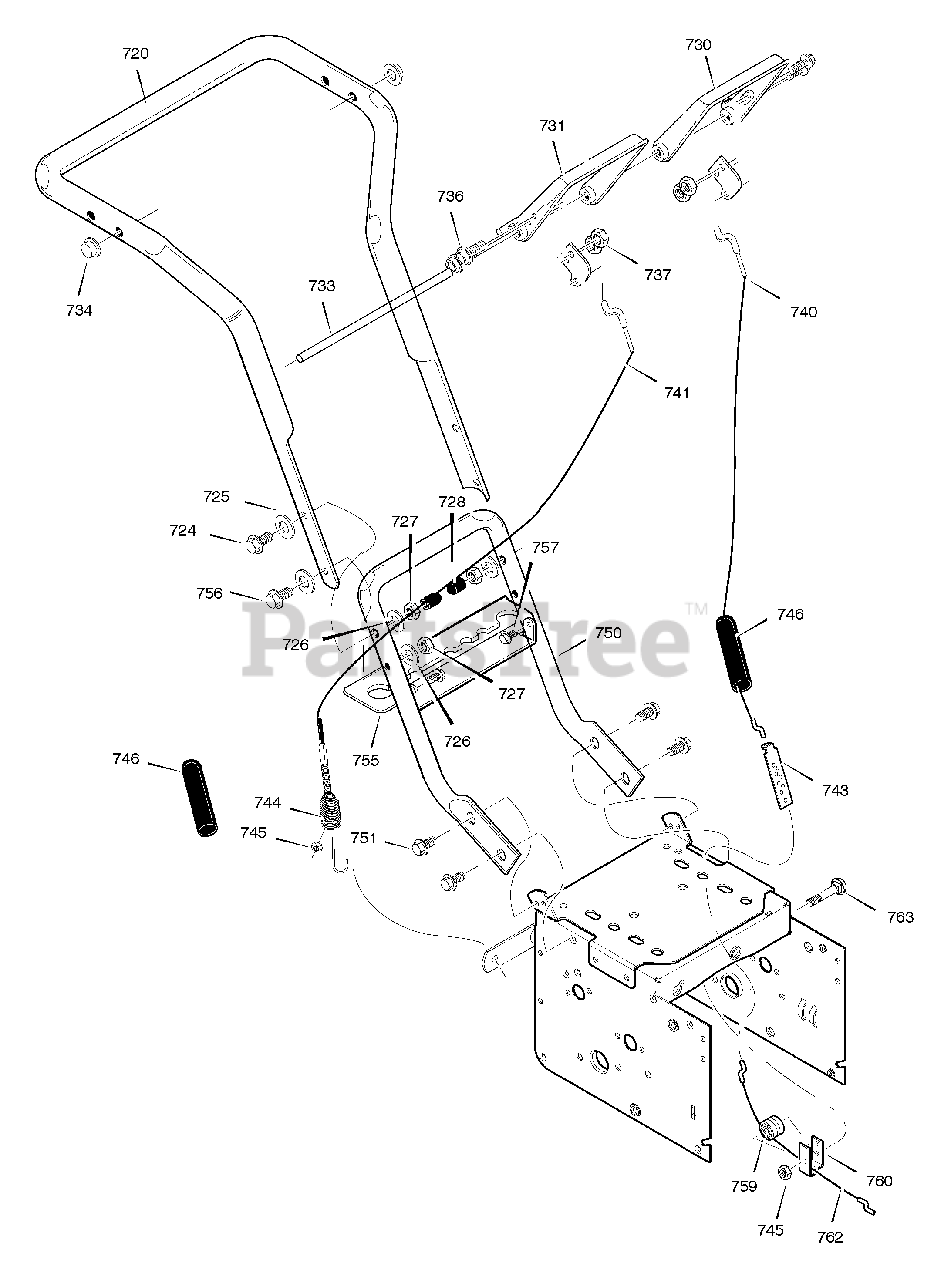

Handle Assembly Parts Diagram

  • Title

720

Murray MT321838E701

HANDLE

$

$

Currently unavailable

724

Murray MT11234

SCREW

$

$

Currently unavailable

725

Murray MT71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

726

Murray MT71060MA

WASHER, SPLIT
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

727

Murray MT15X144MA

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray MT11261MA

PLASTIC-STOP
(Superseded to 11261MA)

$4.49

$

Usually ships in 2-12 days

0

730

Murray MT302557MA

CLUTCH, LEFT HANDLE CONTROL
(Superseded to 302557MA)

$21.99

$

Usually ships in 2-12 days

0

731

Murray MT302558MA

CLUTCH, RIGHT HANDLE CONTROL
(Superseded to 302558MA)

$22.99

$

In Stock, only 1 left!

0

733

Murray MT12621 YZ

ROD, PIVOT HANDLE

$

$

Currently unavailable

734

Murray MT3535MA

PUSH ON CAP
(Superseded to 3535MA)

$4.99

$

Usually ships in 2-12 days

0

735

Murray MT1502080E701

PLATE, CABLE PIVOT

$

$

Currently unavailable

736

Murray MT303108

SCREW

$

$

Currently unavailable

737

Murray MT73826MA

NUT
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

740

Murray MT1501123MA

CABLE, CLUTCH
(Superseded to 1501123MA)

$12.99

$

In Stock, Qty 9

0

741

Murray MT761872MA

CABLE, AUGER CLUTCH
(Superseded to 761872MA)

$15.99

$

In Stock, only 1 left!

0

743

Murray MT313441MA

BRKT, CABLE ADJUST
(Superseded to 313441MA)

$

$

Not available

744

Murray MT1673MA

SPRING, AUGER CLUTCH
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 19

0

745

Murray MT15X145MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

746

Murray MT308146MA

BOOT, CLUTCH SPRING
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

750

Murray MT339541E701MA

HANDLE, LOWER
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Murray MT25X021MA

SCREW 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

752

Murray MT71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

755

Murray MT337407E701MA

BRACKET, GEAR SELECTOR
(Superseded to 337407E701MA)

$23.99

$

Usually ships in 2-12 days

0

756

Murray MT6751

SCREW 5/16-18 x 2

$

$

Currently unavailable

757

Murray MT310169MA

SCREW, 1/4-20 x 0.63
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

759

Murray MT579860MA

SPOOL-CABLE, AUGRT CLUTCH
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

760

Murray MT1501059 YZ

BRACKET, CABLE SPOOL YZ

$

$

Currently unavailable

762

Murray MT1501122MA

CABLE, LOWER DRIVE 12"
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 20+

0

763

Murray MT001798

BOLT, HEX 1/4-20 x 1.50 YZ

$

$

Currently unavailable
