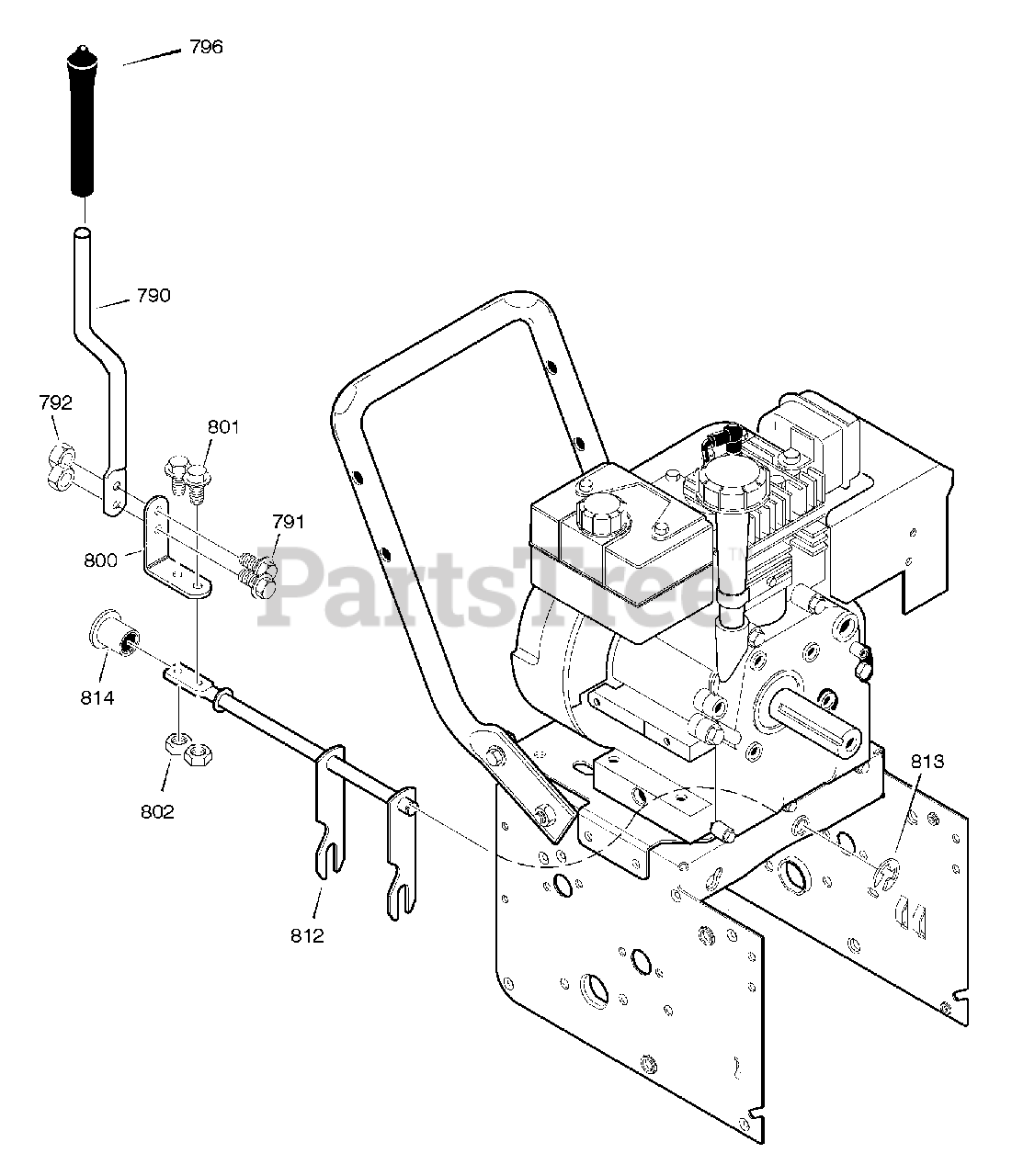

ST 0524 (624554x16A) - Frontier 24" Snow Thrower (2005) Shift Yoke Parts Diagram

24" Snow Thrower

Shift Yoke Parts Diagram

  • Title
790

Murray MT762299E701

ROD, SHIFT

$

$

Currently unavailable

791

Murray MT302628MA

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

792

Murray MT73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

796

$

$

Currently unavailable

800

Murray MT760564MA

LEVER, SPRING
(Superseded to 760564MA)

$9.99

$

Usually ships in 2-12 days

0

801

Murray MT302628MA

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

802

Murray MT73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

811

Murray MT579944MA

BEARING, FLANGED
(Superseded to 579944MA)

$15.99

$

In Stock, only 1 left!

0

812

Murray MT1501085 YZ

ROD ASSY., SPEED SELECT

$

$

Currently unavailable

813

Murray MT11X30MA

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, only 2 left!

0
