ST 0524 (624554x16A) - Frontier 24" Snow Thrower (2005) Wheels Parts Diagram

24" Snow Thrower

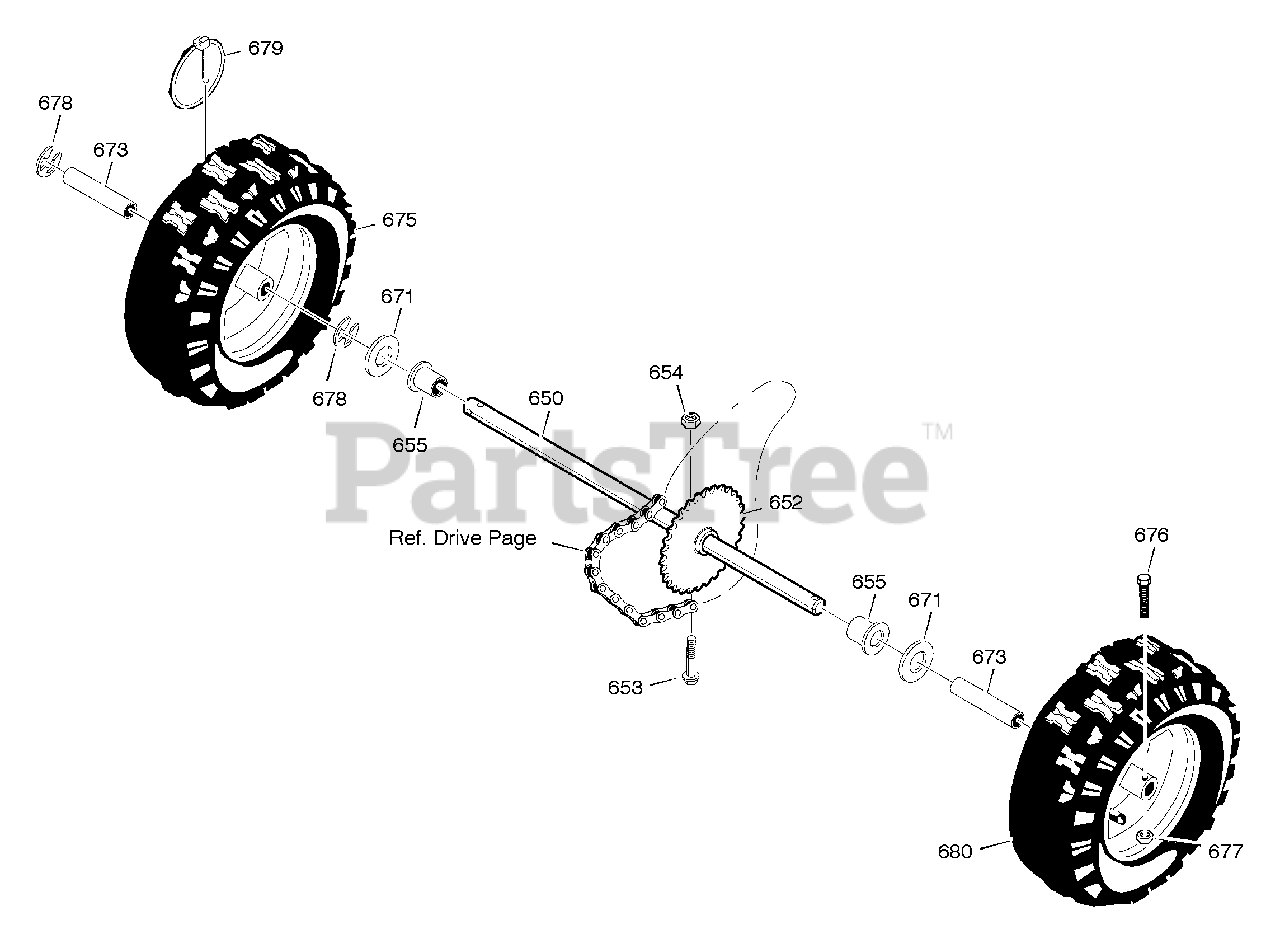

Wheels Parts Diagram

  • Title

650

Murray MT1501562MA

SHAFT, AXLE
(Superseded to 1501562YZMA)

$59.99

$

Usually ships in 2-12 days

0

652

Murray MT1501089MA

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, only 1 left!

0

653

Murray MT01X193MA

SCREW, 1/4-20 x 1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 11

0

654

Murray MT15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray MT1501114MA

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, only 4 left!

0

671

Murray MT017X83

FLATWASHER

$

$

Currently unavailable

673

Murray MT1501139MA

BUSHING, WHEEL
(Superseded to 1501139MA)

$

$

Not available

675

Murray MT1501822MA

TIRE & RIM, RIGHT
(Superseded to 1750449YP)

$137.99

$

Usually ships in 2-12 days

0

676

Murray MT577015MA

SCREW, 1/4-20X1.75 HH
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 9

0

677

Murray MT15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray MT239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray MT73842MA

PIN, KLIK .25 X 1.38 DIA
(Superseded to 500016MA)

$15.99

$

In Stock, only 3 left!

0

680

Murray MT1501823MA

TIRE & RIM, LEFT
(Superseded to 1750448YP)

$152.99

$

Usually ships in 2-12 days

0
