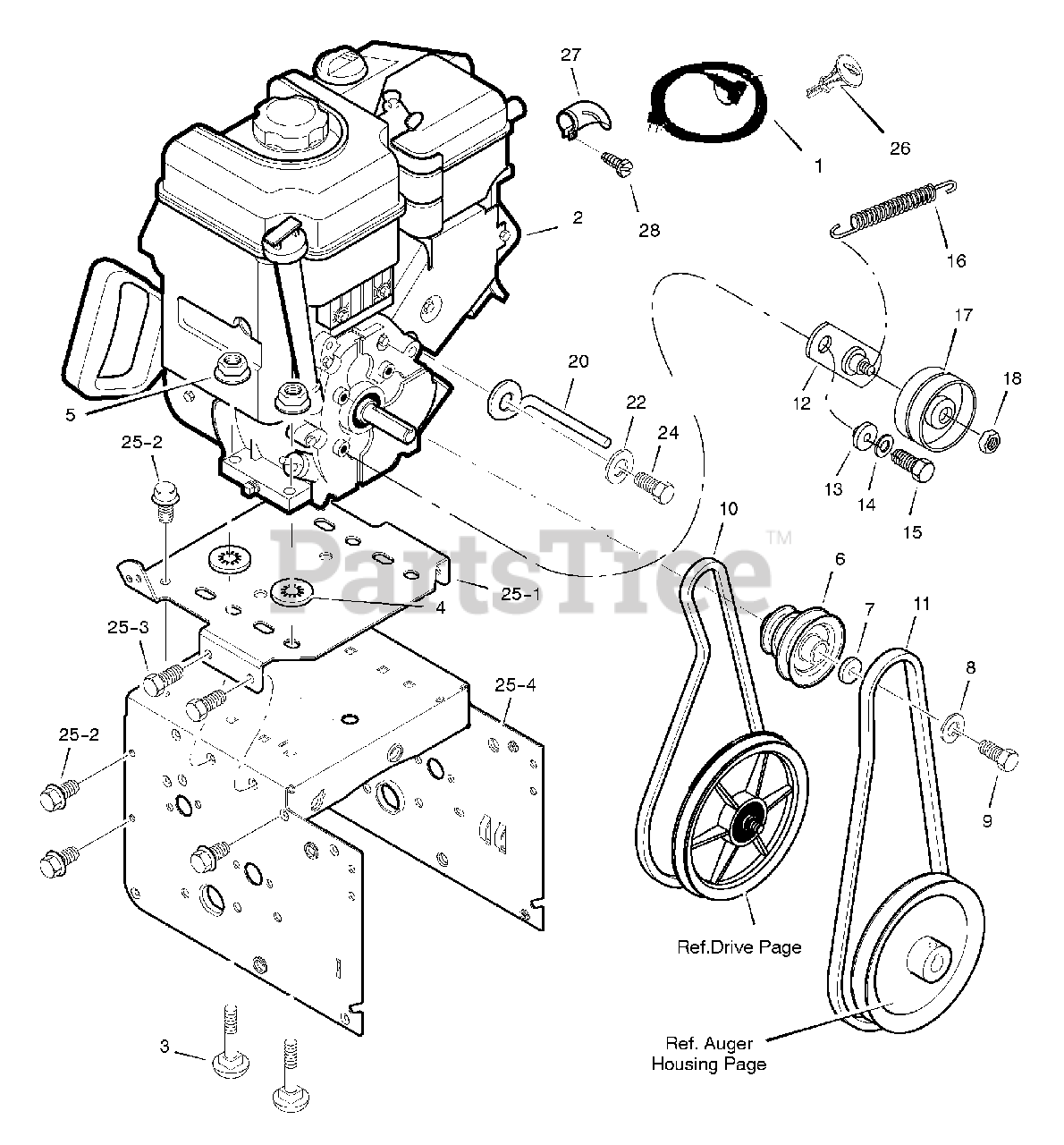

ST 0726 (626750x16C) - Frontier 26" Snow Thrower (2005) Engine Parts Diagram

26" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray MT6219MA

CORD, STARTER
(Superseded to 6219MA)

$42.99

$

In Stock, only 1 left!

0

2

ENGINE

$

$

Not available

3

Murray MT002X97MA

BOLT, CARRIAGE
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

4

Murray MT028X76

RETAINER, PUSH

$

$

Currently unavailable

5

Murray MT710026MA

NUT
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

6

Murray MT1501109MA

PULLEY, ENGINE
(Superseded to 1501109MA)

$43.99

$

In Stock, only 2 left!

0

7

Murray MT17X170

WASHER

$

$

Currently unavailable

8

Murray MT71063MA

WASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

9

Murray MT001X20

SCREW

$

$

Currently unavailable

10

Murray MT579932MA

BELT, DRIVE V 4L
(Superseded to 1733324SM)

$19.99

$

Usually ships in 2-12 days

0

11

Murray MT37X120MA

BELT, AUGER V 3L
(Superseded to 37X120MA)

$21.99

$

In Stock, only 2 left!

0

12

Murray MT1501112 YZ

BRACKET ASSEMBLY, IDLER

$

$

Currently unavailable

13

Murray MT1501065MA

BUSHING, IDLER BRACKET
(Superseded to 1501065MA)

$5.99

$

In Stock, only 2 left!

0

14

Murray MT71060MA

WASHER, SPLIT
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

15

Murray MT710097MA

SCREW 5/16-24 X .75
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

16

Murray MT53704MA

SPRING, IDLER TRACTION DRIVE
(Superseded to 53704MA)

$8.99

$

In Stock, only 2 left!

0

17

Murray MT1502120

PULLEY, IDLER

$

$

Currently unavailable

18

Murray MT590

NUT, JAM 3/8-16

$

$

Currently unavailable

20

Murray MT1501201MA

GUIDE, ROD BELT
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

22

Murray MT71060MA

WASHER
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

24

Murray MT710097MA

SCREW
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray MT1501062E511MA

PLATE, ENGINE
(Superseded to 1501062E511MA)

$63.99

$

Usually ships in 2-12 days

0

25-2

Murray MT310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

25-3

Murray MT25X020MA

SCREW
(Superseded to 25X020MA)

$5.49

$

In Stock, Qty 6

0

25-4

Murray MT1501050E511MA

MOTOR BOX
(Superseded to 761168E511MA)

$94.99

$

Usually ships in 2-12 days

0

26

Murray 695756

KEY, BRIGGS ENGINE
(Superseded to 794696)

$8.49

$

In Stock, only 2 left!

0

27

Murray MT697816

DEFLECTOR, MUFFLER

$

$

Currently unavailable

28

Murray MT810140

SCREW

$

$

Currently unavailable

--

Murray MTF-051056L

OWNER'S MANUAL

$

$

Currently unavailable
