ST 0927 (627954x16A) - Frontier 27" Snow Thrower (2005) Gear Case Parts Diagram

27" Snow Thrower

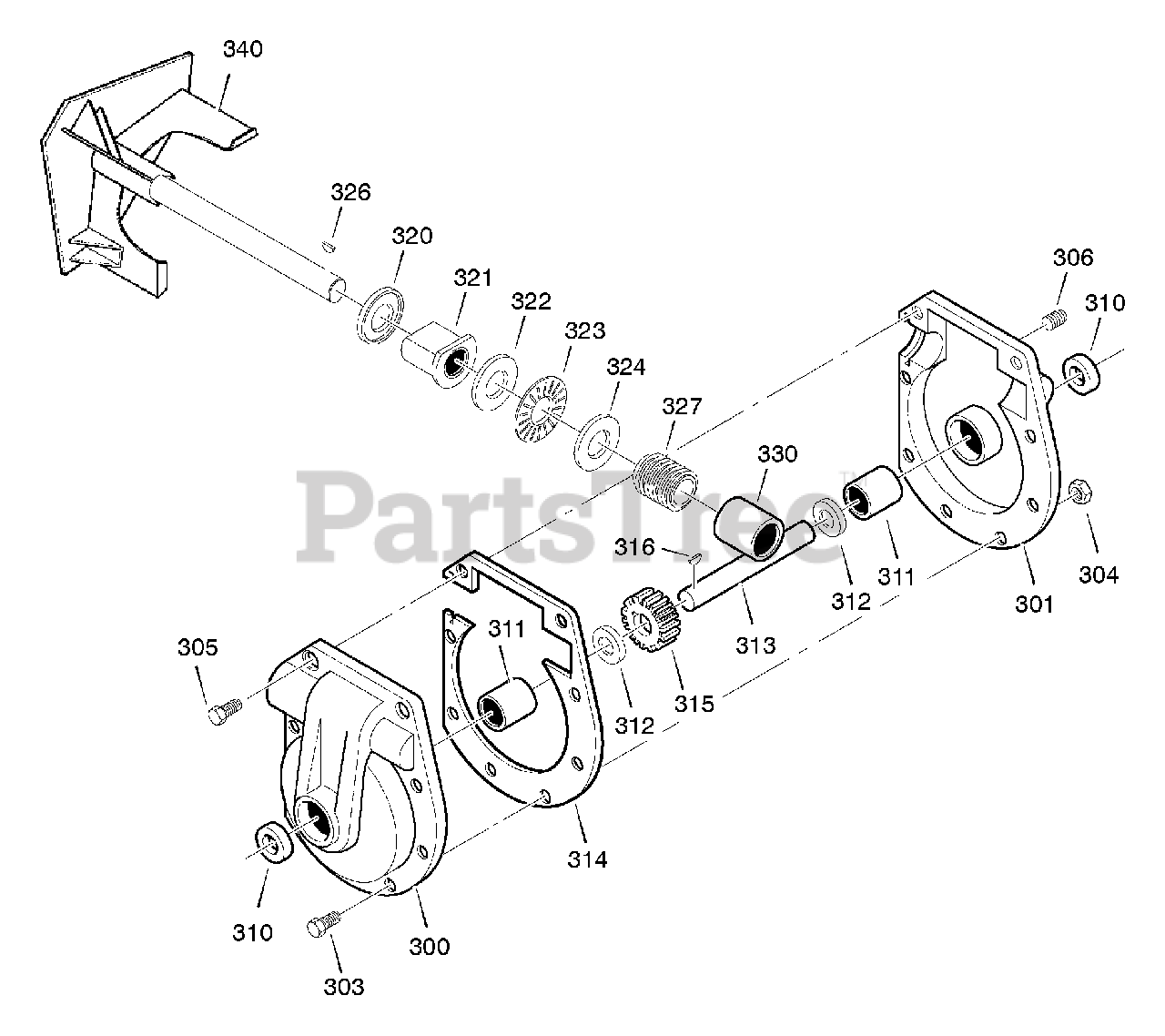

Gear Case Parts Diagram

  • Title

300

Murray MT896MA

CASE, GEAR, RH
(Superseded to 896MA)

$34.99

$

In Stock, only 4 left!

0

301

Murray MT895MA

CASE, GEAR, LH
(Superseded to 895MA)

$

$

Not available

303

Murray MT910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

304

Murray MT71100MA

NUT, 5/'16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

305

Murray MT330434MA

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Murray MT53749MA

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.99

$

Usually ships in 2-12 days

0

310

Murray MT780151MA

SEAL, OIL
(Superseded to 780151MA)

$10.99

$

In Stock, Qty 6

0

311

Murray MT53743MA

BEARING, SLEEVE
(Superseded to 53743MA)

$10.99

$

Usually ships in 2-12 days

0

312

Murray MT53748MA

WASHER, FLAT
(Superseded to 53748MA)

$10.99

$

In Stock, only 2 left!

0

313

Murray MT584514MA

SHAFT, AUGER OUTPUT

$55.99

$

Usually ships in 2-12 days

0

314

Murray MT897MA

GASKET, GEAR BOX
(Superseded to 897MA)

$14.99

$

Usually ships in 2-12 days

0

315

Murray MT53730MA

WORM GEAR
(Superseded to 1752500YP)

$84.99

$

In Stock, only 3 left!

0

316

Murray MT73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$5.49

$

In Stock, Qty 9

0

320

Murray MT53737MA

RING, QUAD 0.924 ID
(Superseded to 53737MA)

$5.49

$

In Stock, Qty 5

0

321

Murray MT583126MA

BEARING, FLANGE
(Superseded to 583126MA)

$13.99

$

In Stock, only 4 left!

0

322

Murray MT48275MA

WASHER, FLAT
(Superseded to 48275MA)

$6.99

$

In Stock, Qty 12

0

323

Murray MT50684MA

BEARING, ROLLER
(Superseded to 50684MA)

$6.99

$

In Stock, Qty 11

0

324

Murray MT48275MA

WASHER, FLAT
(Superseded to 48275MA)

$6.99

$

In Stock, Qty 12

0

326

Murray MT50795MA

KEY
(Superseded to 50795MA)

$6.49

$

In Stock, only 1 left!

0

327

Murray MT53732MA

WORM
(Superseded to 53732MA)

$52.99

$

Usually ships in 2-12 days

0

330

Murray MT53731MA

BEARING, SLEEVE
(Superseded to 53731MA)

$5.49

$

In Stock, Qty 6

0

340

Murray MT1501147E701MA

IMPELLER
(Superseded to 1740584AYP)

$287.99

$

Usually ships in 2-12 days

0

--

Murray MT333431MA

LUBRIPLATE, GR132, 14oz

$19.99

$

Usually ships in 2-12 days

0
