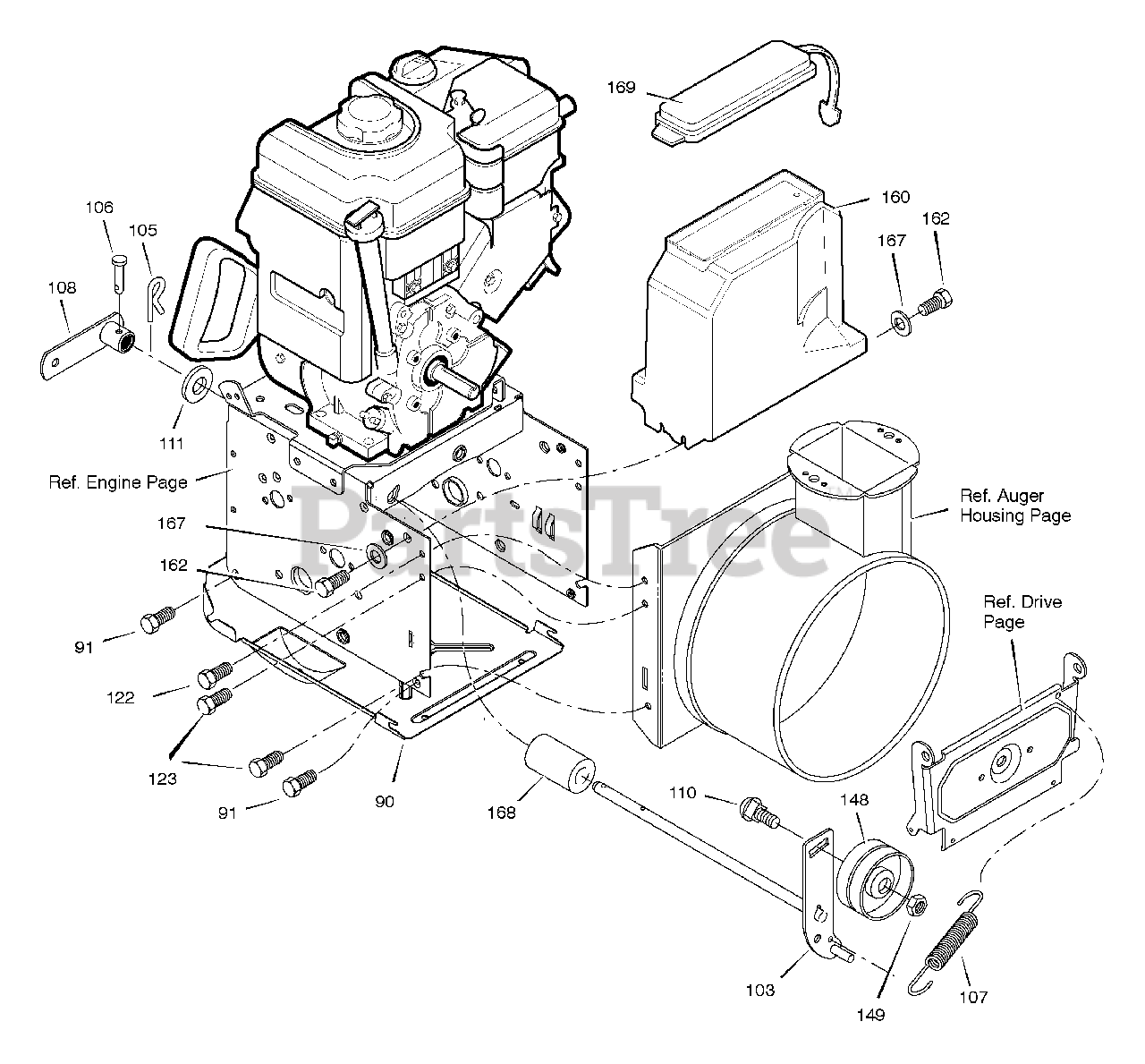

ST 1028 (628102x16A) - Frontier 28" Snow Thrower (2005) Frame Parts Diagram

28" Snow Thrower

Frame Parts Diagram

  • Title

90

Murray MT1501055E701MA

COVER, BOTTOM
(Superseded to 1501055E701MA)

$35.99

$

In Stock, only 1 left!

0

91

Murray MT310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

103

Murray MT1501369 YZ

IDLER ASSEMBLY, AUGER

$

$

Currently unavailable

105

Murray MT711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray MT761761MA

PIN, CLEVIS 3/16" DIA
(Superseded to 761761MA)

$6.99

$

Usually ships in 2-12 days

0

107

Murray MT165X159MA

SPRING, TENSION
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 10

0

108

Murray MT761675 YZ

ASSY., SPRING ATTACH

$

$

Currently unavailable

110

Murray MT585781

BOLT, 3/8-16X1.25 CARR.

$

$

Currently unavailable

111

Murray MT711617MA

WASHER, FLAT
(Superseded to 711617MA)

$5.49

$

In Stock, only 2 left!

0

122

Murray MT25X020MA

SCREW, TAP 5/16-18 X .50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

123

Murray MT25X021MA

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray MT1502120

PULLEY, IDLER

$

$

Currently unavailable

149

Murray MT590

NUT, JAM 3/8-16

$

$

Currently unavailable

160

Murray MT1502182

COVER, BELT

$

$

Currently unavailable

162

Murray MT26X306MA

SCREW, TAP
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

167

Murray MT71067MA

WASHER, FLAT
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

168

Murray MT1501200MA

SPACER, AUGER BRACKET
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

169

Murray MT760539MA

LID, TOOL BOX
(Superseded to 760539MA)

$10.99

$

In Stock, only 1 left!

0
