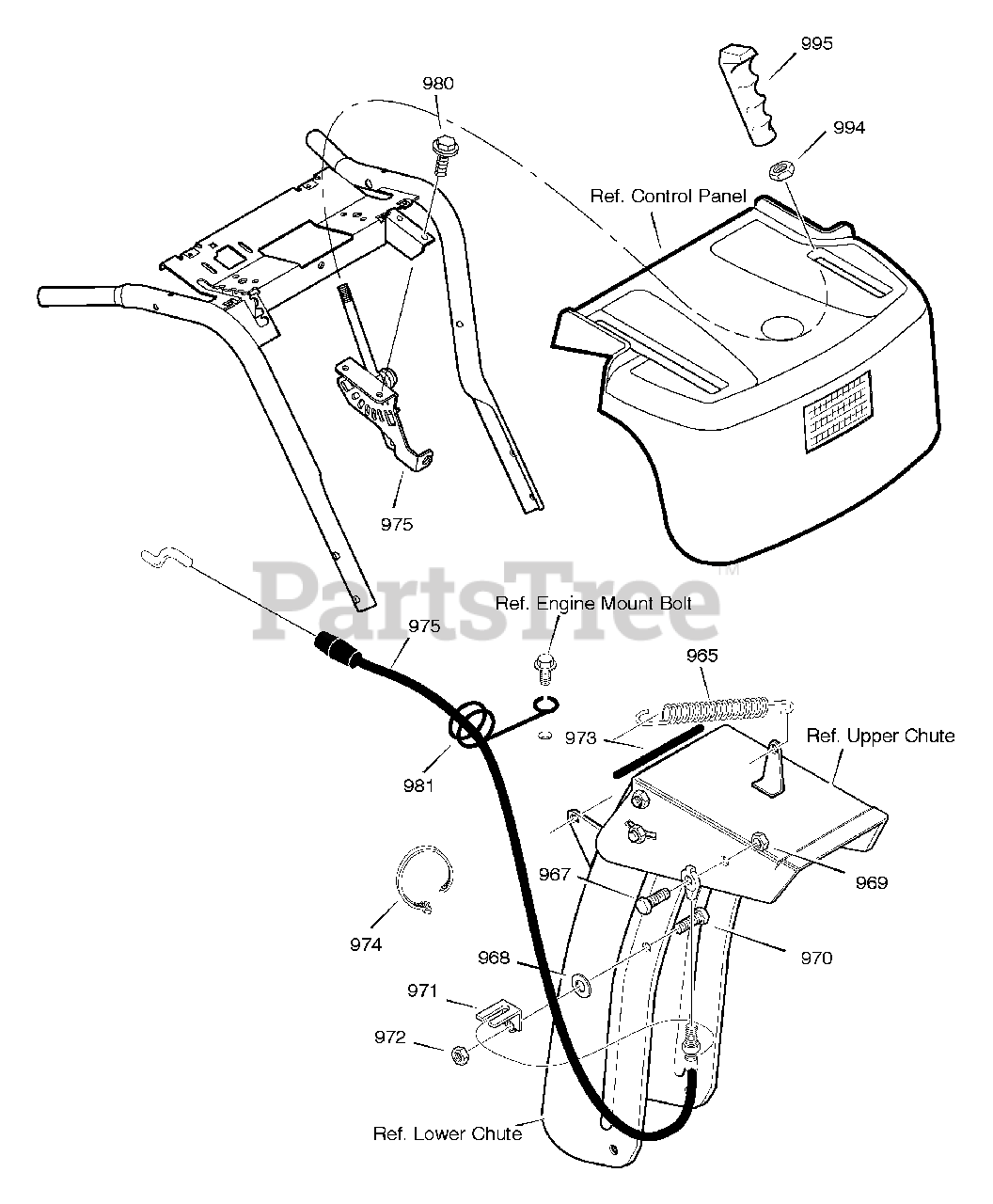

ST 1028 (628102x16A) - Frontier 28" Snow Thrower (2005) Remote Control Parts Diagram

28" Snow Thrower

Remote Control Parts Diagram

  • Title

965

Murray MT318468MA

TENSION SPRING
(Superseded to 318468MA)

$8.49

$

Usually ships in 2-12 days

0

967

Murray MT310088MA

BOLT, SHOULDER
(Superseded to 310088MA)

$4.99

$

Usually ships in 2-12 days

0

968

Murray MT73787

FLATWASHER

$

$

Currently unavailable

969

Murray MT15X143MA

NUT
(Superseded to 15X143MA)

$4.99

$

In Stock, only 4 left!

0

970

Murray MT313676

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

971

Murray MT306447 YZ

BRACKET, CABLE CHUTE

$

$

Currently unavailable

972

Murray MT71391MA

NUT, 5/16-18
(Superseded to 71391MA)

$4.49

$

In Stock, only 1 left!

0

973

Murray MT1001221

TRIM STRIP, BLACK

$

$

Currently unavailable

974

Murray MT071372

TIE, CABLE

$

$

Currently unavailable

975

Murray MT1501393MA

CABLE, CHUTE DEFLECTOR
(Superseded to 1501393MA)

$

$

Not available

980

Murray MT313676

SCREW

$

$

Currently unavailable

981

Murray MT780220MA

WIRE FORM, CHUTE CABLE
(Superseded to 780220MA)

$6.99

$

Usually ships in 2-12 days

0

994

Murray MT71045MA

NUT, 3/8-16
(Superseded to 71045MA)

$4.99

$

Usually ships in 2-12 days

0

995

Murray MT306689MA

KNOB, SHIFT
(Superseded to 306689MA)

$14.99

$

In Stock, only 1 left!

0
