ST 1028 (628102x16A) - Frontier 28" Snow Thrower (2005) Wheels Parts Diagram

28" Snow Thrower

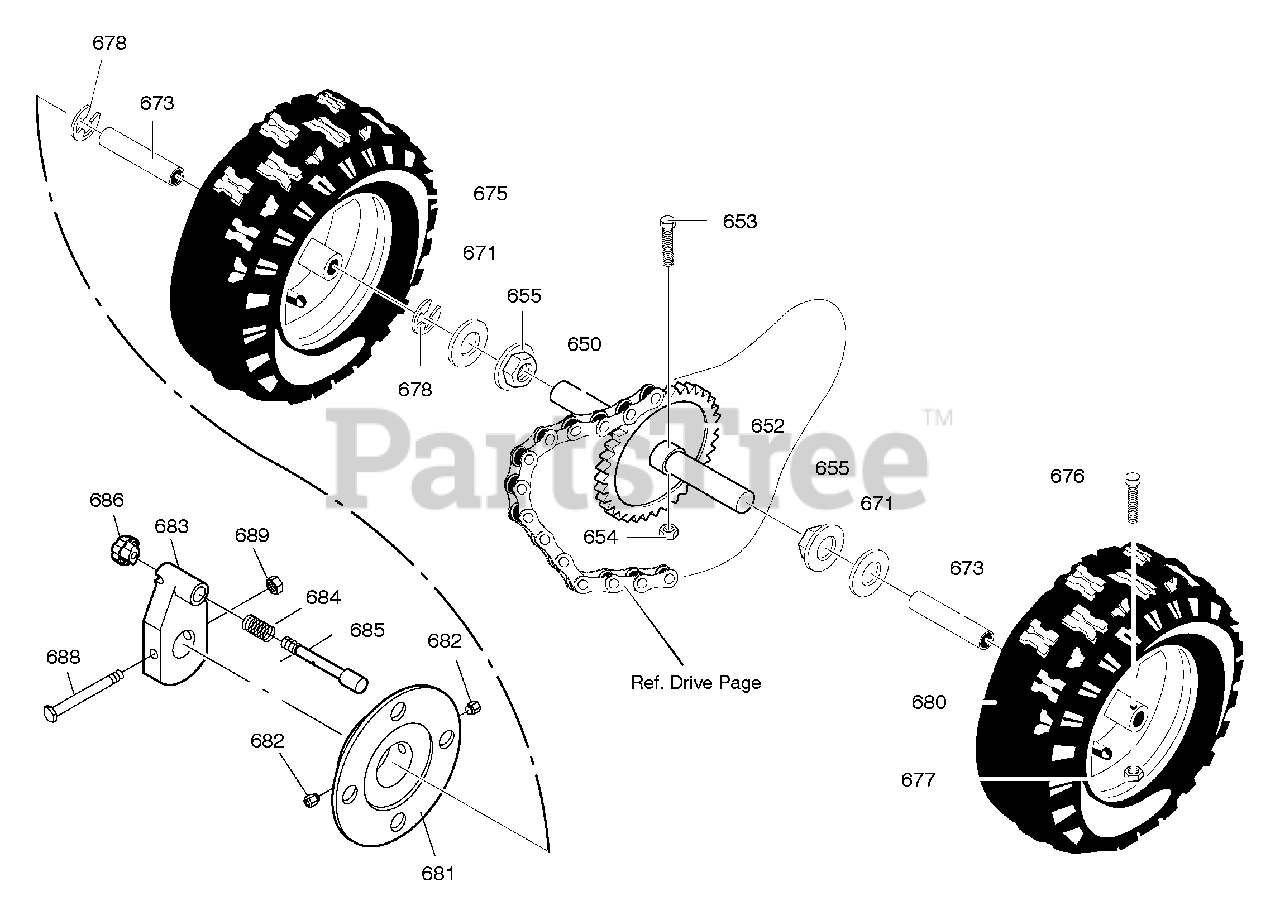

Wheels Parts Diagram

  • Title

650

Murray MT1501563MA

SHAFT, AXLE
(Superseded to 1501563YZMA)

$69.99

$

In Stock, only 1 left!

0

652

Murray MT1501089MA

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, only 1 left!

0

653

Murray MT01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 9

0

654

Murray MT15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray MT1501114MA

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, only 2 left!

0

671

Murray MT017X83

FLATWASHER

$

$

Currently unavailable

673

Murray MT1501138MA

BUSHING, WHEEL
(Superseded to 1501138MA)

$

$

Not available

675

Murray MT1501824MA

TIRE & RIM, RIGHT
(Superseded to 1736413YP)

$186.99

$

Usually ships in 2-12 days

0

676

Murray MT577015MA

SCREW, 1/4-20X1.75
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 7

0

677

Murray MT15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray MT239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray MT1501825MA

TIRE & RIM, LEFT

$165.99

$

Usually ships in 2-12 days

0

681

Murray MT1501032E

DISC, WHEEL

$

$

Currently unavailable

682

Murray MT2001066MA

SCREW
(Superseded to 2001066MA)

$5.49

$

In Stock, only 2 left!

0

683

Murray MT1501930MA

HUB ASSEMBLY, WHEEL LOCK
(Superseded to 1501930MA)

$97.99

$

Usually ships in 2-12 days

0

684

Murray MT164X34MA

SPRING, COMPRESSION *
(Superseded to 164X34MA)

Note: (Included with Ref. No. 683)

$5.99

$

In Stock, only 2 left!

0

685

Murray MT1501856YZMA

PIN, LOCK *
(Superseded to 1501856YZMA)

Note: (Included with Ref. No. 683)

$15.99

$

In Stock, only 3 left!

0

686

Murray MT1501855MA

KNOB *
(Superseded to 1501855MA)

Note: (Included with Ref. No. 683)

$13.99

$

In Stock, only 1 left!

0

688

Murray MT73839MA

SCREW
(Superseded to 73839MA)

$5.49

$

In Stock, Qty 9

0

689

Murray MT15X116MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
