ST 1028 (628104x16B) - Frontier 28" Snow Thrower (2004) Control Panel Parts Diagram

28" Snow Thrower

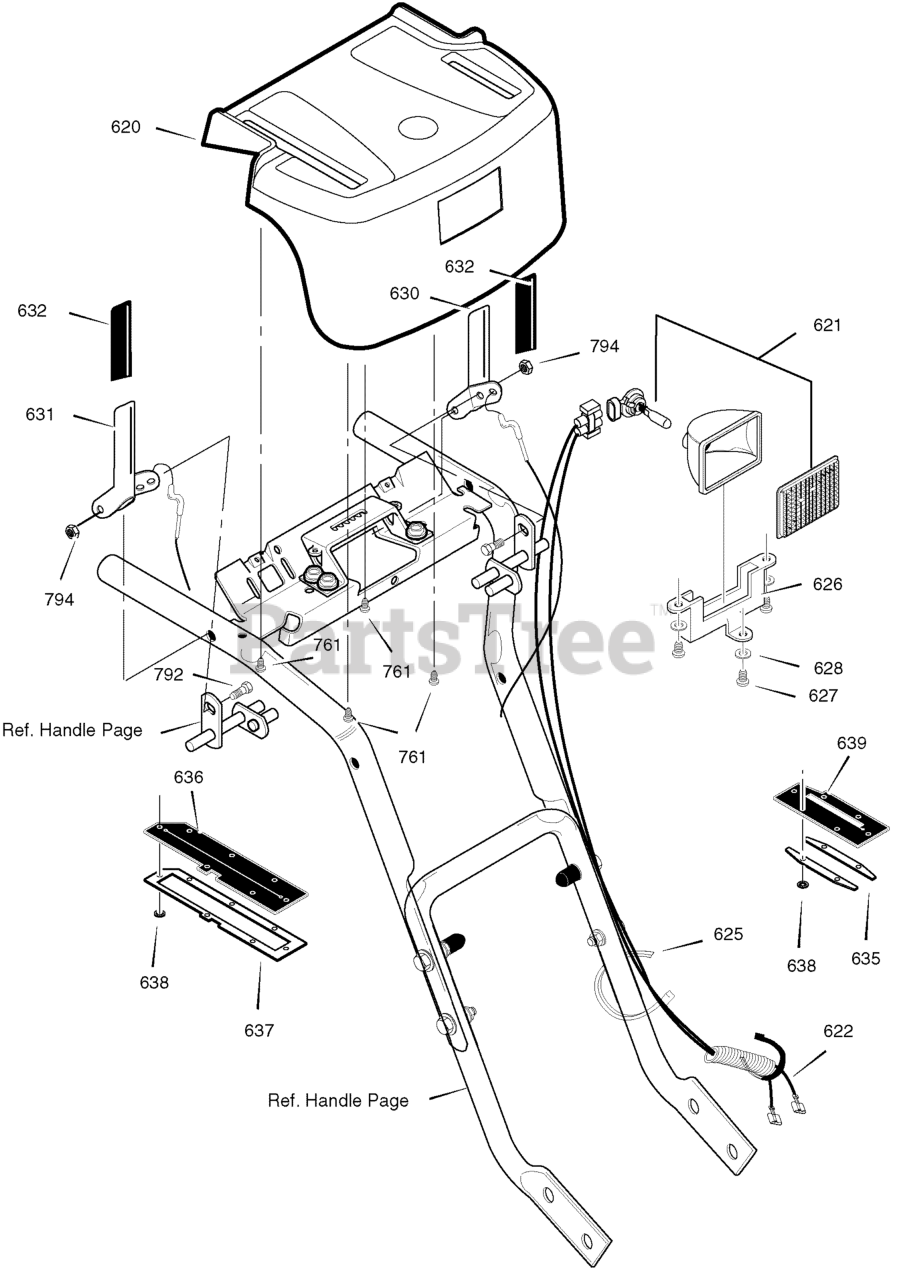

Control Panel Parts Diagram

  • Title
620

Murray MT1501988

PANEL, CONTROL W/LIGHT

$

$

Currently unavailable

621

Murray MT762343

LIGHT, HALOGEN

$

$

Currently unavailable

622

Murray MT1501455

HARNESS, WIRE

$

$

Currently unavailable

625

Murray MT071372

TIE, CABLE

$

$

Currently unavailable

626

Murray MT1501412

BRACKET, LIGHT

$

$

Currently unavailable

627

Murray MT901696

SCREW #8 X .50

$

$

Currently unavailable

628

Murray MT901736

WASHER, FLAT

$

$

Currently unavailable

630

Murray MT1501358E701

CLUTCH HANDLE LH

$

$

Currently unavailable

631

Murray MT1501357E701

CLUTCH HANDLE RH

$

$

Currently unavailable

632

Murray MT337380

GRIP, CLUTCH LEVER

$

$

Currently unavailable

635

Murray MT1501545

FRAME, COVER

$

$

Currently unavailable

636

Murray MT1501542

COVER, SPEED LEVER

$

$

Currently unavailable

637

Murray MT1501544

FRAME, SPEED COVER

$

$

Currently unavailable

638

Murray MT028X79

NUT, PUSH

$

$

Currently unavailable

639

Murray MT1501543

COVER, CHUTE LEVER

$

$

Currently unavailable

792

Murray MT905531

BOLT, 1/4-20 X 0.50

$

$

Currently unavailable

794

Murray MT908913

NUT, 1/4-20

$

$

Currently unavailable

761

$

$

Currently unavailable
