ST 1028 (628104x16B) - Frontier 28" Snow Thrower (2004) Frame Parts Diagram

28" Snow Thrower

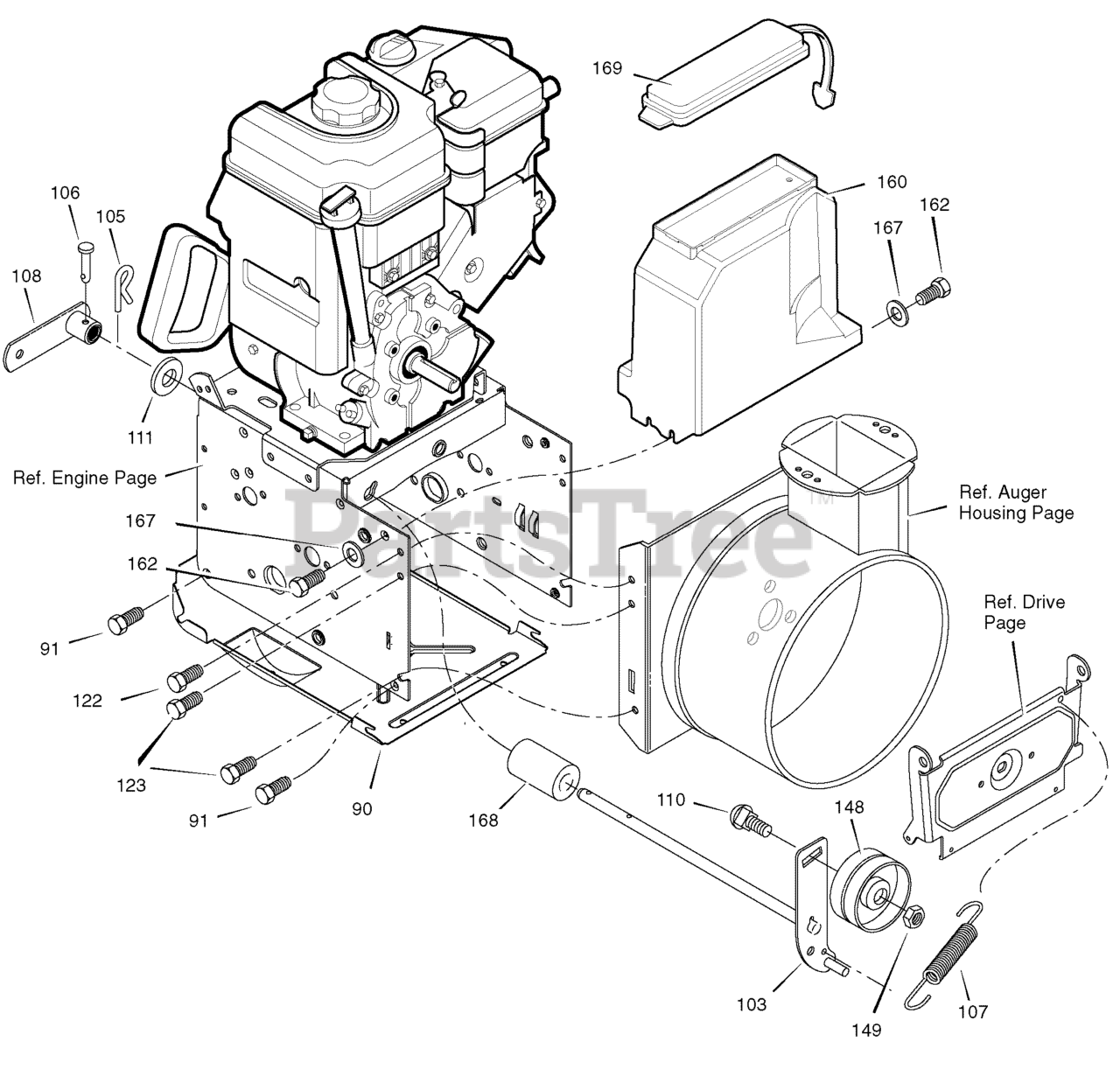

Frame Parts Diagram

  • Title
90

Murray MT1501055E701

COVER, BOTTOM

$

$

Currently unavailable

91

Murray MT310169

SCREW, 1/4-20X .63

$

$

Currently unavailable

103

Murray MT1501782YZ

IDLER ASSEMBLY, AUGER

$

$

Currently unavailable

105

Murray MT711682

PIN, HAIR .38DIAX1.64LG

$

$

Currently unavailable

106

Murray MT761761

PIN, CLEVIS 3/16" DIA

$

$

Currently unavailable

107

Murray MT165X159

SPRING, TENSION

$

$

Currently unavailable

108

Murray MT761675 YZ

ASSY., SPRING ATTACH

$

$

Currently unavailable

110

Murray MT585781

BOLT, 3/8-16X1.25 CARR.

$

$

Currently unavailable

111

Murray MT711617

WASHER, FLAT

$

$

Currently unavailable

122

Murray MT25X020

SCREW, TAP 5/16-18 X .50

$

$

Currently unavailable

123

Murray MT25X021

SCREW, TAP 5/16-18 X .75

$

$

Currently unavailable

148

Murray MT50793

PULLEY, IDLER

$

$

Currently unavailable

149

Murray MT590

NUT, JAM 3/8-16

$

$

Currently unavailable

160

Murray MT1501052

COVER, BELT

$

$

Currently unavailable

162

Murray MT26X306

SCREW, TAP

$

$

Currently unavailable

167

Murray MT71067

WASHER, FLAT

$

$

Currently unavailable

168

Murray MT1501200

SPACER, AUGER BRACKET

$

$

Currently unavailable

169

Murray MT760539

LID, TOOL BOX

$

$

Currently unavailable
