ST-1033 E - Echo Snow Thrower Auger Assembly, Chute Assembly, Housing Assembly Parts Diagram

Snow Thrower

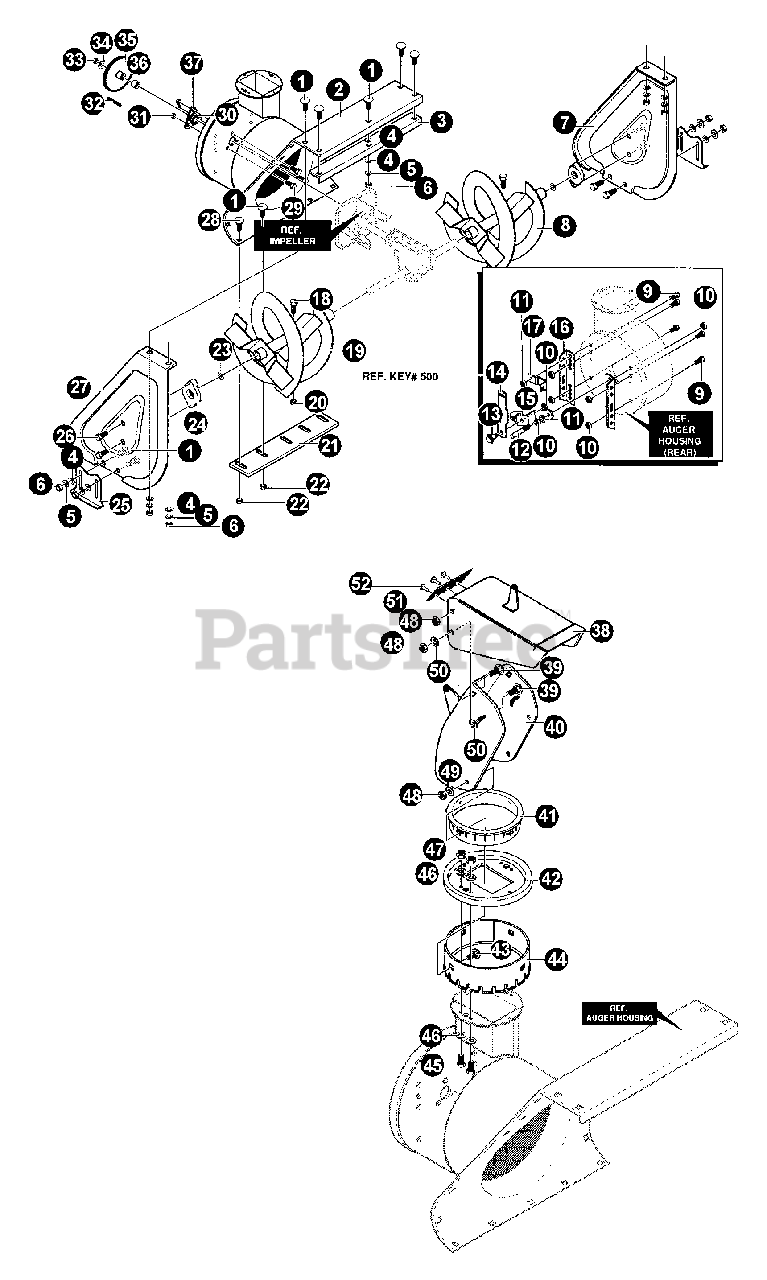

Auger Assembly, Chute Assembly, Housing Assembly Parts Diagram

  • Title

1

Echo 14070993

BOLT - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available

2

Echo 14585559

HOUSING, LF
(Superseded to Discontinued)

$

$

Not available

3

Echo 14584741

STIFFENER, AUGER
(Superseded to Discontinued)

$

$

Not available

4

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

5

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

7

Echo 14006922

CASE, AUGER - LEFT
(Superseded to Discontinued)

$

$

Not available

8

Echo 14340006

AUGER ASSY - 33"

$208.99

$

Usually ships in 2-4 days

0

9

Echo 14071003

SCREW - 3/8-16 X 3/4"
(Superseded to Discontinued)

$

$

Not available

10

Echo 14001499

NUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

11

Echo 14120382

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14586224

STUD, BRAKE ARM

$1.49

$

Usually ships in 2-4 days

0

13

Echo 14335587

BOLT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

14

Echo 14760073

BRACKET, IDLER

$4.49

$

Usually ships in 2-4 days

0

15

Echo 14336657

PLATE, CLUTCH
(Superseded to 14761195)

$

$

Not available

16

Echo 14340353

BRACKET, CABLE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 14585247

BRACKET, MOUNTING
(Superseded to Discontinued)

$

$

Not available

18

Echo 14578647

BOLT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

19

Echo 14340007

AUGER ASSY - 33"

$213.99

$

Usually ships in 2-4 days

0

20

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

21

Echo 14906925

BLADE, SCRAPER LF

$26.99

$

Usually ships in 2-4 days

0

22

Echo 14710026

NUT - 5/16-18

$0.99

$

Usually ships in 2-4 days

0

23

Echo 14073755

WASHER - 1.00X1.31X.035

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14313873

BEARING, AUGER SHAFT
(Superseded to Discontinued)

$

$

Not available

25

Echo 14000873

SKID, HEIGHT ADJUST

$14.99

$

Usually ships in 2-4 days

0

26

Echo 14035498

SCREW - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available

27

Echo 14006921

CASE, AUGER - RIGHT
(Superseded to Discontinued)

$

$

Not available

28

Echo 14126358

BOLT - 5/16-18 X 1"

$1.99

$

Usually ships in 2-4 days

0

29

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

30

Echo 14049562

BEARING, BALL - 6203

$10.99

$

Usually ships in 2-4 days

0

31

Echo 14710026

NUT - 5/16-18

$0.99

$

Usually ships in 2-4 days

0

32

Echo 14071371

KEY, SQUARE .18SQX88LG
(Superseded to Discontinued)

$

$

Not available

33

Echo 14274654

LOCKNUT - 1/2-20
(Superseded to Discontinued)

$

$

Not available

34

Echo 14071074

WASHER - .53X1.00X.063
(Superseded to Discontinued)

$

$

Not available

35

Echo 14583146

PULLEY, V4L

$44.99

$

Usually ships in 2-4 days

0

36

Echo 14334514

SPACER, SLEEVE .675X1.00X.53

$0.99

$

Usually ships in 2-4 days

0

37

Echo 14582960

RETAINER, BEARING

$2.99

$

Usually ships in 2-4 days

0

38

Echo 14904040

CHUTE - UPPER
(Superseded to Discontinued)

$

$

Not available

39

Echo 14578088

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

40

Echo 14586240

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

41

Echo 14337227

RETAINER, RING INNER
(Superseded to Discontinued)

$

$

Not available

42

Echo 14585214

COLLAR
(Superseded to Discontinued)

$

$

Not available

43

Echo 14586280

BOLT, 5/16-18X1.00 CARRLN
(Superseded to Discontinued)

$

$

Not available

44

Echo 14585193

RETAINER, RING OUTER
(Superseded to Discontinued)

$

$

Not available

45

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

46

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

47

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

48

Echo 14071038

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

49

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

50

Echo 14006711

WASHER - PLASTIC

$1.49

$

Usually ships in 2-4 days

0

51

Echo 14003194

SKIRT, CHUTE EXTENSION

$13.99

$

Usually ships in 2-4 days

0

52

Echo 14328683

RIVET - POP

$1.49

$

Usually ships in 2-4 days

0
