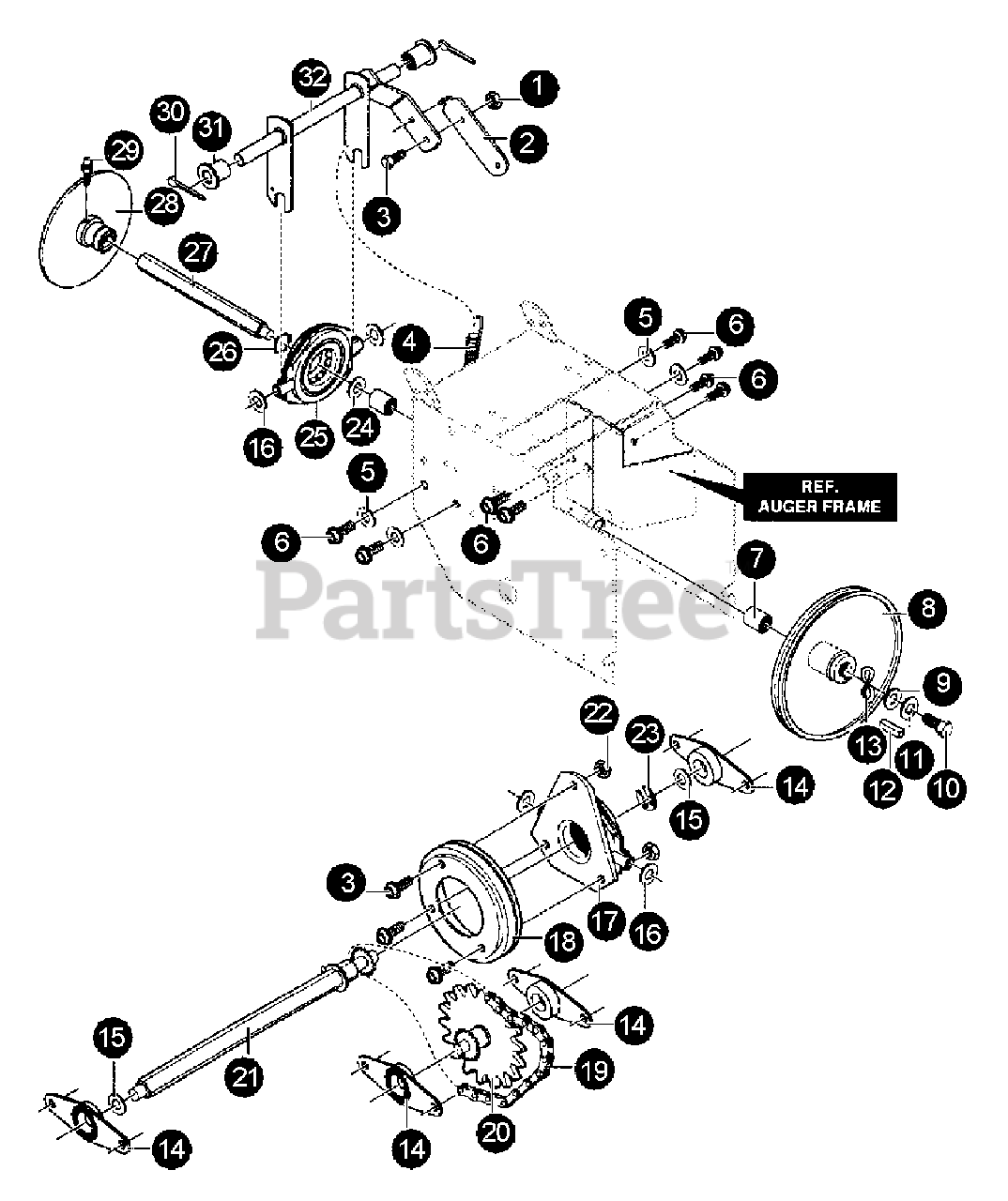

ST-1033 E - Echo Snow Thrower Disc Assembly, Drive Gear, Drive Shaft Parts Diagram

Snow Thrower

Disc Assembly, Drive Gear, Drive Shaft Parts Diagram

  • Title

1

Echo 14001502

NUT, 1/4"-20

$0.99

$

Usually ships in 2-4 days

0

2

Echo 14579937

LEVER, SPRING TRAC CL
(Superseded to Discontinued)

$

$

Not available

3

Echo 14011871

SCREW 1/4"-20
(Superseded to Discontinued)

$

$

Not available

4

Echo 14313919

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

5

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14035497

SCREW, 5/16-18×0.50 WAHHTAP
(Superseded to Discontinued)

$

$

Not available

7

Echo 14049562

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

8

Echo 14580961

PULLEY

$34.99

$

Usually ships in 2-4 days

0

9

Echo 14001084

WASHER, FLAT 0.281×1.00×0.063
(Superseded to Discontinued)

$

$

Not available

10

Echo 14180020

SCREW 1/4 - 20×75 HHC

$1.49

$

Usually ships in 2-4 days

0

11

Echo 14120380

WASHER, REGSPTLK0.263×0.49×0.07
(Superseded to Discontinued)

$

$

Not available

12

Echo 14580970

KEY, SQUARE 0.18SQX0.63LG
(Superseded to Discontinued)

$

$

Not available

13

Echo 14580965

WASHER - SPRING
(Superseded to Discontinued)

$

$

Not available

14

Echo 14334163

BEARING & RETAINER
(Superseded to Discontinued)

$

$

Not available

15

Echo 14579858

WASHER

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14071074

WASHER, FLAT
(Superseded to Discontinued)

$

$

Not available

17

Echo 14337029

BEARING, TRUNION CLUTCH

$42.99

$

Usually ships in 2-4 days

0

18

Echo 14313883

FRICTION DISC WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 14579867

CHAIN, ROLLER #42×40P
(Superseded to Discontinued)

$

$

Not available

20

Echo 14583010

JACK ASSY #41-36T & 7T
(Superseded to Discontinued)

$

$

Not available

21

Echo 14331112

HEX ASSY #40-8TW/PBRG
(Superseded to Discontinued)

$

$

Not available

22

Echo 14303008

NUT
(Superseded to Discontinued)

$

$

Not available

23

Echo 14000462

RING, RETEX

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14580969

WASHER, FLAT 0.680×1.12×0.060Z
(Superseded to Discontinued)

$

$

Not available

25

Echo 14085501

BEARING, TRUNION 1.25 ID
(Superseded to Discontinued)

$

$

Not available

26

Echo 14073811

RING, RETEX
(Superseded to Discontinued)

$

$

Not available

27

Echo 14583155

SHAFT, HEX TRACTION
(Superseded to Discontinued)

$

$

Not available

28

Echo 14583163

DISC ASSY, FRICTION WHEEL

$29.99

$

Usually ships in 2-4 days

0

29

Echo 14583206

ZERK, GREASE 0.25-28×1.12LG
(Superseded to Discontinued)

$

$

Not available

30

Echo 14137185

PIN - 1-1/4×1" -- COTTER
(Superseded to Discontinued)

$

$

Not available

31

Echo 14313853

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

32

Echo 14579941

LEVER ASSY, TRACTION CLUTCH
(Superseded to Discontinued)

$

$

Not available
