ST-1033 E - Echo Snow Thrower Engine, Starter, Pulleys Parts Diagram

Snow Thrower

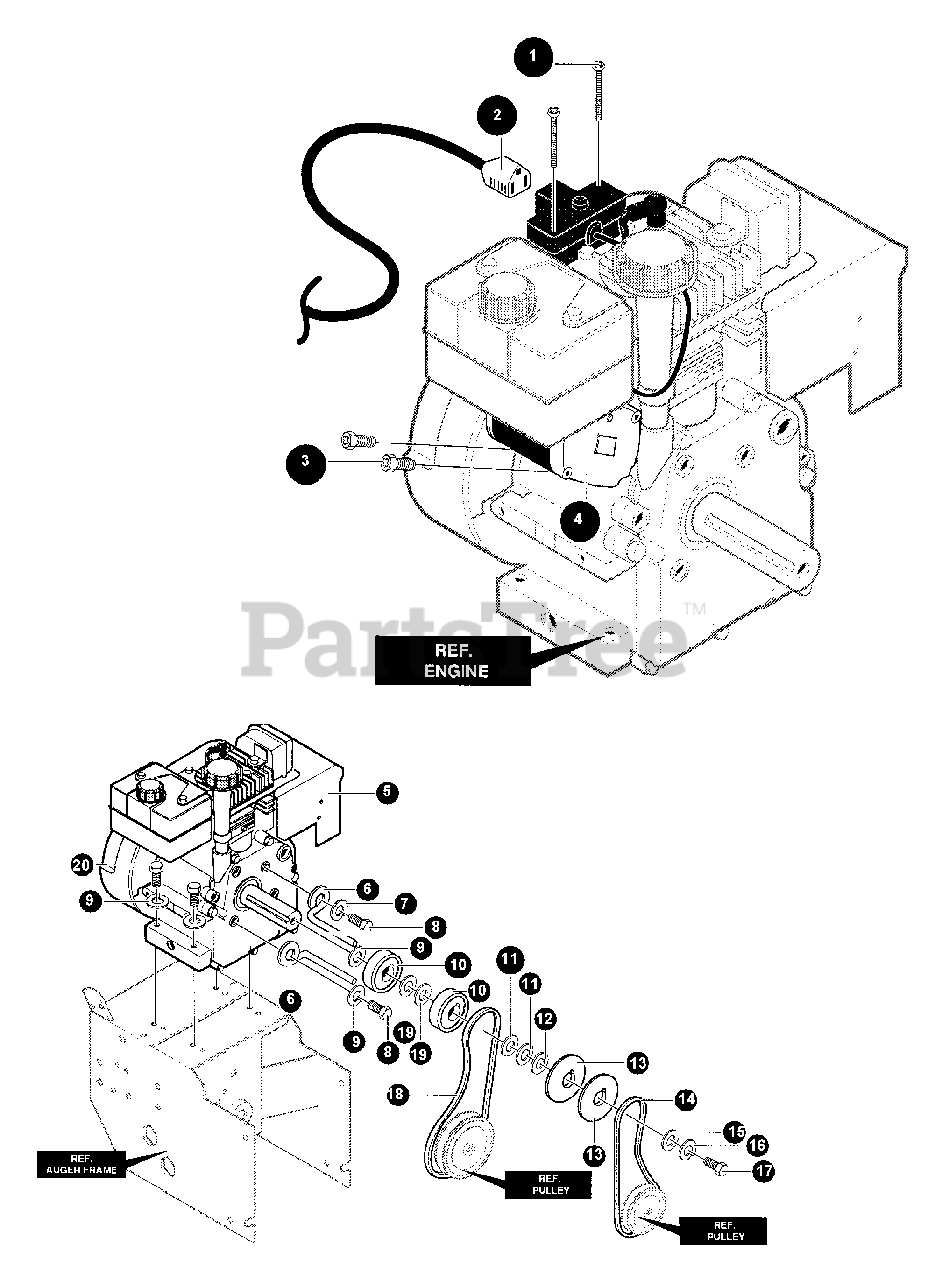

Engine, Starter, Pulleys Parts Diagram

  • Title

1

Echo 14006217

SCREW - 6-32×2.50" -- HEX HEAD CAP
(Superseded to Discontinued)

$

$

Not available

2

Echo 14006219

CORD, STARTER MOTOR
(Superseded to Discontinued)

$

$

Not available

3

Echo 14006216

SCREW - 1/4-20×0.50"
(Superseded to Discontinued)

$

$

Not available

4

Echo 14006218

MOTOR, STARTER TEC
(Superseded to Discontinued)

$

$

Not available

------------------

ENGINE - 10 HP TEC

$

$

Not available

6

Echo 14003949

GUIDE, ROD BELT - RIGHT

$1.99

$

Usually ships in 2-4 days

0

7

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14578733

SCREW - 5/16-24×0.625" -- HEX HEAD CAP
(Superseded to Discontinued)

$

$

Not available

9

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo 14579854

PULLEY, HALF
(Superseded to Discontinued)

$

$

Not available

11

Echo 14073840

WASHER, FLAT
(Superseded to Discontinued)

$

$

Not available

12

Echo 14586251

SPACER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14586253

PULLEY, ENGINE
(Superseded to Discontinued)

$

$

Not available

14

Echo 14585437

BELT, AUGER 4L 36.8
(Superseded to Discontinued)

$

$

Not available

15

Echo 14313826

WASHER
(Superseded to Discontinued)

$

$

Not available

16

Echo 14120382

WASHER. REGSPTLK 0.393×0.68×0.10
(Superseded to Discontinued)

$

$

Not available

17

Echo 14039573

SCREW - 3/8-24×1.00" -- NYLON HEX HEAD
(Superseded to Discontinued)

$

$

Not available

18

Echo 14579932

BELT
(Superseded to Discontinued)

$

$

Not available

19

Echo 14579861

WASHER, FLAT 0.752×0.91×0.02
(Superseded to Discontinued)

$

$

Not available

20

Echo 14710024

SCREW - 5/16-18
(Superseded to Discontinued)

$

$

Not available
