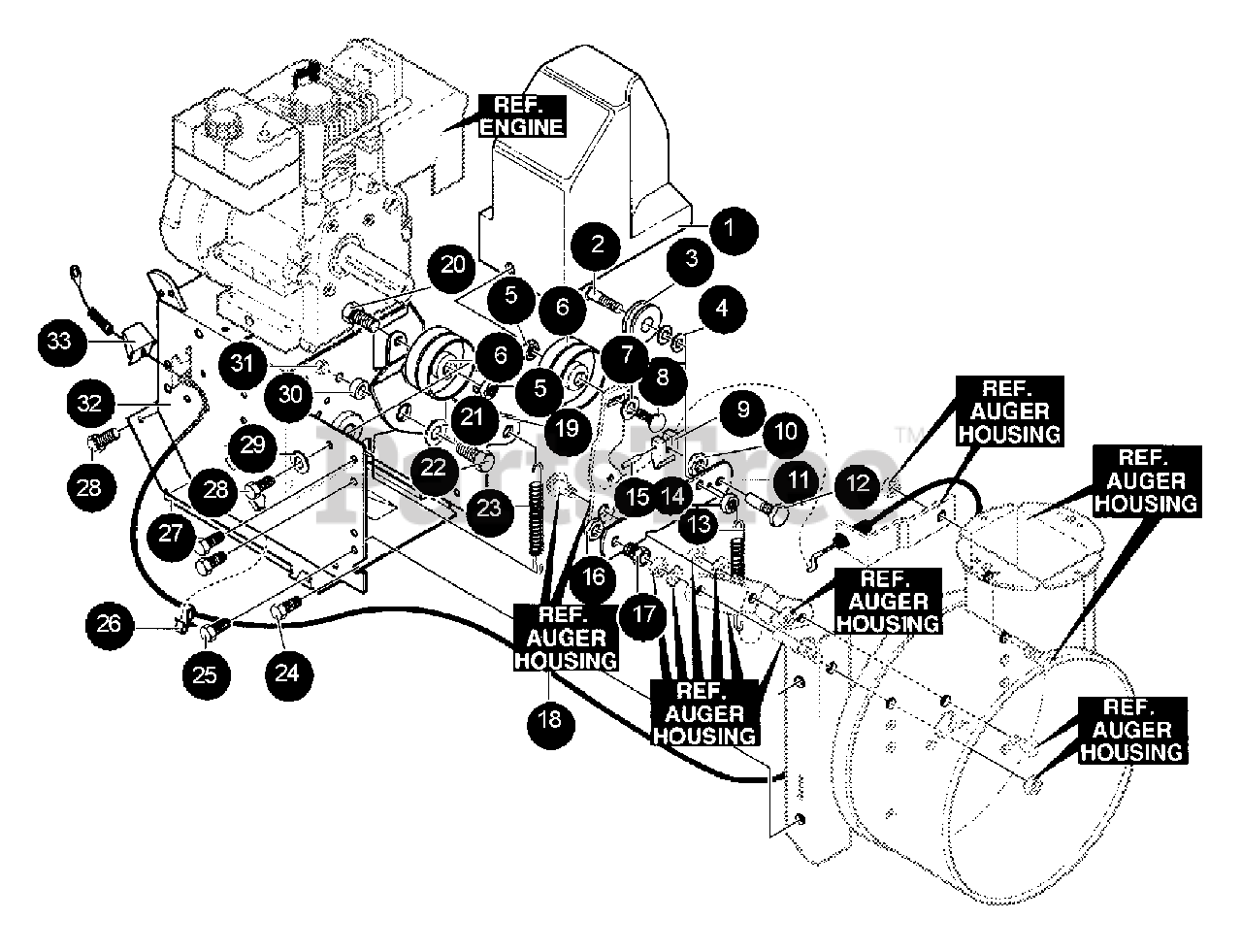

ST-1033 E - Echo Snow Thrower Frame Assembly, Belt Cover, Idler Pulleys, Cable Parts Diagram

Snow Thrower

Frame Assembly, Belt Cover, Idler Pulleys, Cable Parts Diagram

  • Title

1

Echo 14760221

BELT COVER KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 14058336

BOLT - .375X.375 HHSH 1/4-20

$1.99

$

Usually ships in 2-4 days

0

3

Echo 14048306

PULLEY

$5.99

$

Usually ships in 2-4 days

0

4

Echo 14120385

WASHER
(Superseded to Discontinued)

$

$

Not available

5

Echo 14041529

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

6

Echo 14313843

PULLEY, IDLER
(Superseded to Discontinued)

$

$

Not available

7

Echo 14996418

WASHER - .506 X .75X .024"
(Superseded to Discontinued)

$

$

Not available

8

Echo 14585781

BOLT, 3/8-16X1.25 CARR
(Superseded to Discontinued)

$

$

Not available

9

Echo 14581540

PAD, AUGER/IMPELLER BRAKE

$3.49

$

Usually ships in 2-4 days

0

10

Echo 14585609

LOCKNUT - 1/2-20
(Superseded to Discontinued)

$

$

Not available

11

Echo 14760072

BRACKET
(Superseded to Discontinued)

$

$

Not available

12

Echo 14585446

BOLT, BRAKE ARM
(Superseded to Discontinued)

$

$

Not available

13

Echo 14339017

SPRING, IDLER BRAKE

$1.49

$

Usually ships in 2-4 days

0

14

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

15

Echo 14073801

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

16

Echo 14585608

NUT - 9/16-18
(Superseded to Discontinued)

$

$

Not available

17

Echo 14585470

BOLT, BRAKE ARM 9/16-18
(Superseded to Discontinued)

$

$

Not available

18

Echo 14340373

CABLE, AUGER
(Superseded to 14761400)

$

$

Not available

19

Echo 14579872

LEVER, IDLER ARM TRACTION
(Superseded to Discontinued)

$

$

Not available

20

Echo 14180124

SCREW - 3/8-16 X 1-1/4"
(Superseded to Discontinued)

$

$

Not available

21

Echo 14073795

WASHER - .328X1.25X.075
(Superseded to Discontinued)

$

$

Not available

22

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

23

Echo 14313854

SPRING, IDLER

$3.99

$

In Stock, only 1 left!

0

24

Echo 14310169

SCREW - 1/4-20 X .63" -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

25

Echo 14035497

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

26

Echo 14340682

CLIP, CABLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 14583031

COVER, BOTTOM
(Superseded to Discontinued)

$

$

Not available

28

Echo 14310169

SCREW - 1/4-20 X .63" -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

29

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

30

Echo 14579865

BUSHING, IDLER LEVER
(Superseded to Discontinued)

$

$

Not available

31

Echo 14071038

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

32

Echo 14340386

FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

33

Echo 14340869

SHIELD, CABLE GUARD
(Superseded to Discontinued)

$

$

Not available
