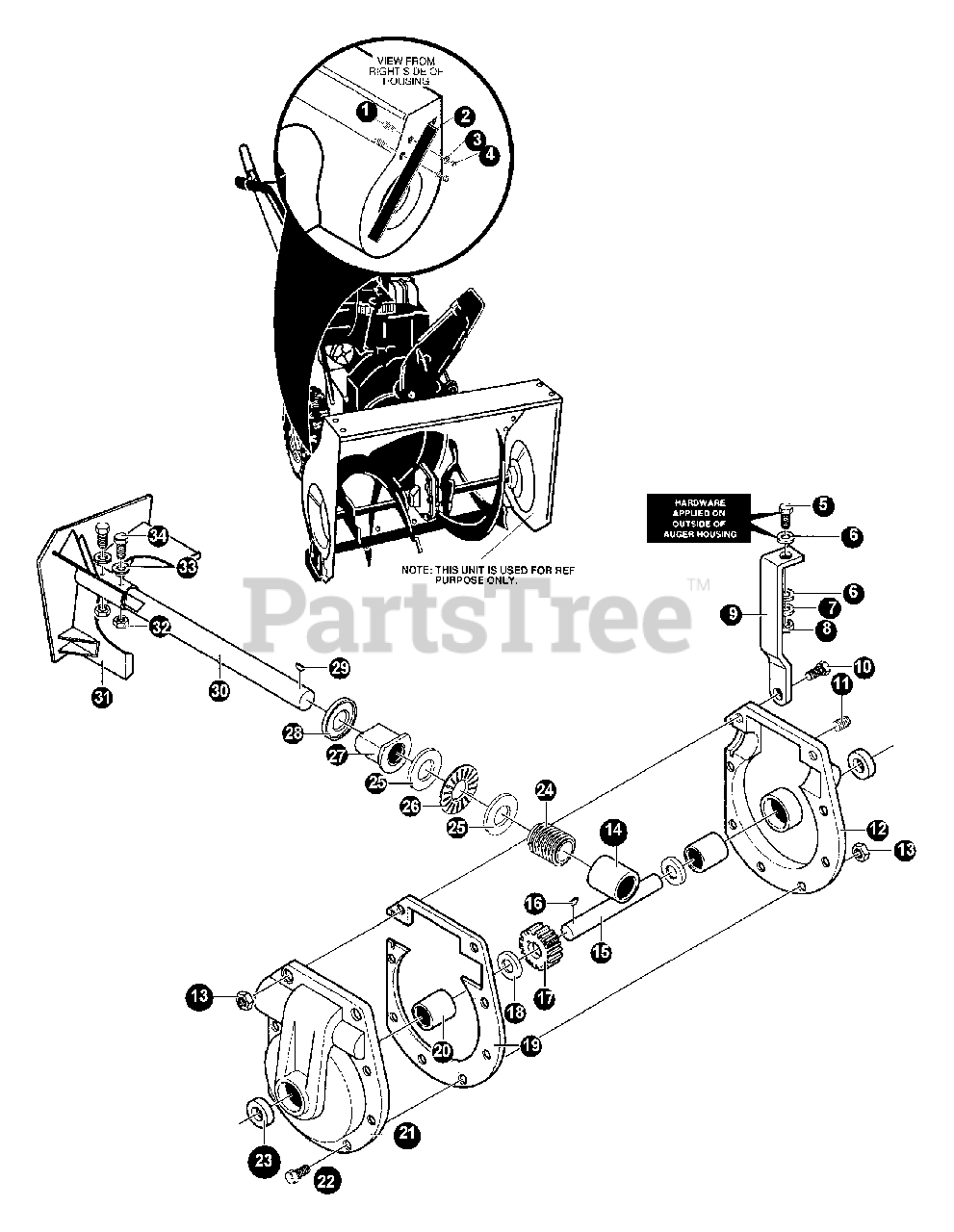

ST-1033 E - Echo Snow Thrower Impeller Assembly, Auger Shaft, Gear Case Parts Diagram

Snow Thrower

Impeller Assembly, Auger Shaft, Gear Case Parts Diagram

  • Title

1

Echo 14070993

BOLT, CARRIAGE 5/16-18×0.75
(Superseded to Discontinued)

$

$

Not available

2

Echo 14950644

BAR, DRIFT CUTTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14120376

NUT

$2.49

$

Usually ships in 2-4 days

0

5

Echo 14302636

SCREW - 5/16-18×1.25" -- HEX HEAD CAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

7

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14120376

NUT

$2.49

$

Usually ships in 2-4 days

0

9

Echo 14001442

BRACE, GEAR BOX
(Superseded to Discontinued)

$

$

Not available

10

Echo 14001441

SCREW - 5/16-24×1.75" -- HEX HEAD CAP
(Superseded to Discontinued)

$

$

Not available

11

Echo 14313872

PLUG
(Superseded to Discontinued)

$

$

Not available

12

Echo 14000895

CASE, GEAR - LEFT
(Superseded to Discontinued)

$

$

Not available

13

Echo 14071100

NUT, 5/16"-24
(Superseded to Discontinued)

$

$

Not available

14

Echo 14053731

BEARING, SLEEVE 0.752IDX0.88ODX0.755

$4.49

$

Usually ships in 2-4 days

0

15

Echo 14001403

SHAFT, AUGER OUTPUT LF 32"
(Superseded to Discontinued)

$

$

Not available

16

Echo 14073905

KEY, WOODRUFF

$2.49

$

Usually ships in 2-4 days

0

17

Echo 14313861

GEAR, WORM

$165.99

$

Usually ships in 2-4 days

0

18

Echo 14313871

WASHER, FLAT

$2.99

$

Usually ships in 2-4 days

0

19

Echo 14000897

GASKET, GEAR BOX

$1.99

$

Usually ships in 2-4 days

0

20

Echo 14313870

BEARING, SLEEVE
(Superseded to Discontinued)

$

$

Not available

21

Echo 14000896

CASE, GEAR - RIGHT
(Superseded to Discontinued)

$

$

Not available

22

Echo 14910828

SCREW 5/16"-24
(Superseded to Discontinued)

$

$

Not available

23

Echo 14001065

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

24

Echo 14313862

GEAR, WORM
(Superseded to Discontinued)

$

$

Not available

25

Echo 14009346

WASHER, FLAT
(Superseded to Discontinued)

$

$

Not available

26

Echo 14313828

BEARING, ROLL

$4.99

$

Usually ships in 2-4 days

0

27

Echo 14583126

BEARING, FLANGE 0.753IDX1.128OD1.03
(Superseded to Discontinued)

$

$

Not available

28

Echo 14313914

RING, QUAD
(Superseded to Discontinued)

$

$

Not available

29

Echo 14050795

KEY, HI-PRO 606 0.75DIAX0.187WD
(Superseded to Discontinued)

$

$

Not available

30

Echo 14585546

SHAFT, WORM
(Superseded to Discontinued)

$

$

Not available

31

Echo 14085142

IMPELLER ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 14001502

NUT, 1/4"-20

$0.99

$

Usually ships in 2-4 days

0

33

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

34

Echo 14073839

SCREW 1/4"-20×2.25
(Superseded to Discontinued)

$

$

Not available
