ST 1129 (629110x16B) - Frontier 29" Snow Thrower (2004) Gear Case Parts Diagram

29" Snow Thrower

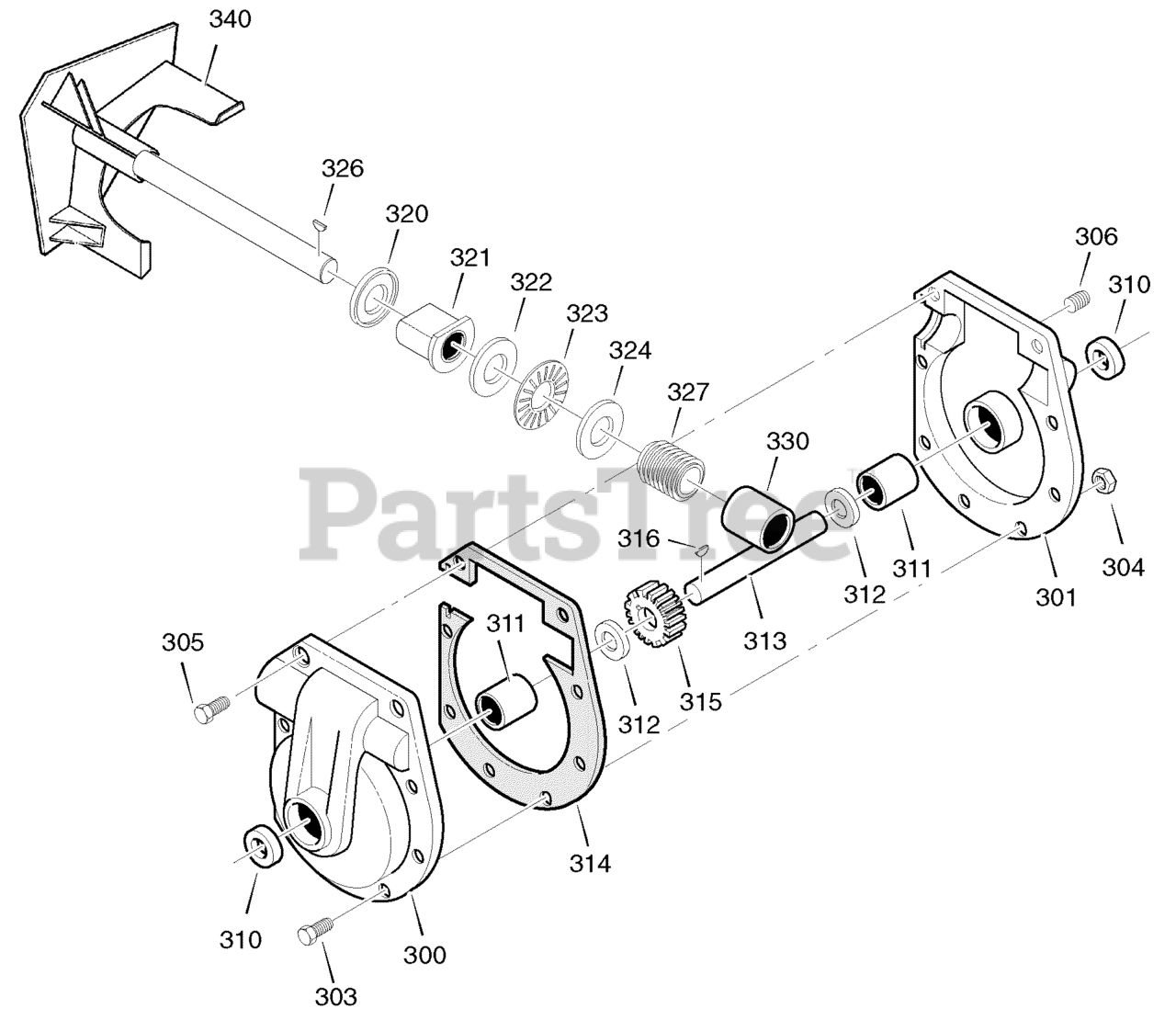

Gear Case Parts Diagram

  • Title
300

Murray MT896

CASE, GEAR, RH

$

$

Currently unavailable

301

Murray MT895

CASE, GEAR, LH

$

$

Currently unavailable

303

Murray MT910828

SCREW, 5/16-24 x 1.00

$

$

Currently unavailable

304

Murray MT71100

NUT, 5/'16-24

$

$

Currently unavailable

305

Murray MT330434

SCREW, 5/16-24 x 1.50

$

$

Currently unavailable

306

Murray MT53749

PLUG, PIPE 0.25-18

$

$

Currently unavailable

310

Murray MT780151

SEAL, OIL

$

$

Currently unavailable

311

Murray MT53743

BEARING, SLEEVE

$

$

Currently unavailable

312

Murray MT53748

WASHER, FLAT

$

$

Currently unavailable

313

Murray MT584515

SHAFT, AUGER OUTPUT

$

$

Currently unavailable

314

Murray MT897

GASKET, GEAR BOX

$

$

Currently unavailable

315

Murray MT53730

WORM GEAR

$

$

Currently unavailable

316

Murray MT73905

KEY, WOODRUFF #91

$

$

Currently unavailable

320

Murray MT53737

RING, QUAD 0.924 ID

$

$

Currently unavailable

321

Murray MT583126

BEARING, FLANGE

$

$

Currently unavailable

322

Murray MT48275

WASHER, FLAT

$

$

Currently unavailable

323

Murray MT50684

BEARING, ROLLER

$

$

Currently unavailable

324

Murray MT48275

WASHER, FLAT

$

$

Currently unavailable

326

$

$

Currently unavailable

327

$

$

Currently unavailable

330

Murray MT53731

BEARING, SLEEVE

$

$

Currently unavailable

340

$

$

Currently unavailable

--

Murray MT333431

10oz TUBE LUBRIPLATE

Note: (Not Illustrated)

$

$

Currently unavailable
