ST 121 E (961810009-01) - Husqvarna 21" Snow Blower (2012-07) ENGINE Parts Diagram

21" Snow Blower

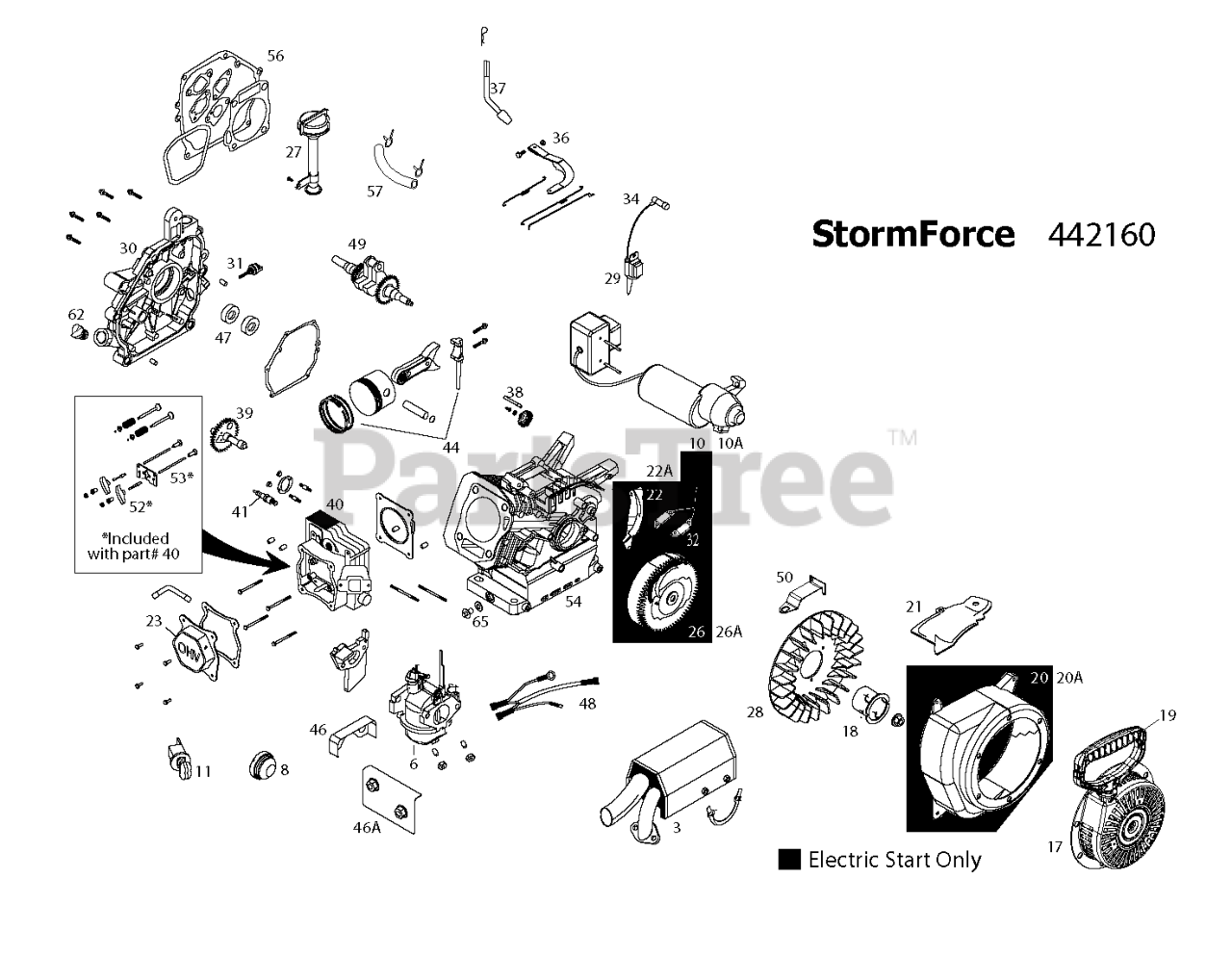

ENGINE Parts Diagram

  • Title

6

Husqvarna 532437122

CARB.ASM.SS/SNO.LCT(SKSNO313)
(Superseded to 585020403)

$93.99

$

In Stock, only 1 left!

0

46

Husqvarna 532429260

SHIELD.VAPOR.SNOW

$15.99

$

In Stock, only 1 left!

0

8

Husqvarna 532437123

BULB.FUEL.PRMR.W/HOSE(SKSNO306
(Superseded to 532424949)

$13.99

$

In Stock, only 2 left!

0

44

Husqvarna 532420582

KIT.PISTON.SRV(SK208-1400)

$169.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$15.99

$

In Stock, only 1 left!

0

3

Husqvarna 532444277

MUFFLER.ASM.LCT.208CC.SNGL.STG
(Superseded to 593989401)

$87.99

$

In Stock, only 1 left!

0

57

Husqvarna 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

In Stock, only 1 left!

0

38

Husqvarna 532429646

GOVENOR.GEARS ASM(SK2082900)

$34.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$31.99

$

In Stock, only 1 left!

0

62

Husqvarna 532429598

NON REMOVABLE PLUG

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424971

BLOW.HSG.ASSY.ELEC(SKSN-0602)
(Superseded to 580960501)

$

$

Not available

37

Husqvarna 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 4 left!

0

23

Husqvarna 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532424973

SHILED.FLYWEEL.SYS(SKSN-0604)

$6.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 4 left!

0

17

Husqvarna 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532429601

GASKET.KIT.208CC(SK2084300.1)

$67.99

$

Usually ships in 3-10 days

0

46A

Husqvarna 532444275

SHIELD.INTAKE.(LCT.SKSN0140.1)

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$15.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532437967

HARNESS.WIRE.SINGLE.STAGE.LCT

$

$

Not available

20A

Husqvarna 532429230

BLOW.HSG.ASSY.ELEC(SKSN-0612)

$21.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532429599

SEAL KIT (2 PCS)

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532420601

RP_IT.GOVERNOR.ARM(SUMMER ENG)
(Superseded to 532420602)

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 532437124

STARTER.ASM.ELEC.(SKSNO411)

$338.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, Qty 6

0

22A

Husqvarna 532429596

SHIELD.FLYWEEL.MAN(SKSN-0607)

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532443899

HANDLE.RECOIL.DELUXE.LCT

$11.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532443894

COIL.ING.CDI.HI TEMP.SKSNO416.

$53.99

$

In Stock, only 1 left!

0

32

Husqvarna 532444090

CHARGING.COILS.18-WATT

$45.99

$

Usually ships in 3-10 days

0

10A

Husqvarna 532437125

STARTER STARTER.EURO
(Superseded to 583516501)

$545.99

$

Usually ships in 3-10 days

0

26A

Husqvarna 532420585

RP KIT.FLYWHEEL.SERVICE
(Superseded to 532429236)

$66.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532429235

FLYWHL.ASSY.ELECT.(SKSN0405)

$145.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532424975

SHLD.ELEC.START.FLY(SKSN-0605)

$

$

Not available

40

Husqvarna 532420578

CYLINDR.HEAD.SRV.KIT W/GASKET
(Superseded to 582045701)

$182.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532420586

FLYWHEEL FAN 420586

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$9.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532436567

CYLINDER.ASM.SKSN0001.2

$

$

Not available

49

Husqvarna 532429600

CRANKSHAFT-KEYED(SK2081800.1)
(Superseded to 580352501)

$

$

Not available

31

Husqvarna 532420961

DIPSTICK SMALL

$12.99

$

In Stock, only 1 left!

0

11

Husqvarna 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$27.99

$

In Stock, Qty 7

0

30

Husqvarna 532420606

CRANKCASE COVER ASSY
(Superseded to 583630001)

$56.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532429691

ROCKER ARM KIT

$60.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532444091

HIGH OIL-FILL TUBE ASSY

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532420584

KIT.CAMSHAFT.208CC.LCT
(Superseded to 582051401)

$66.99

$

Usually ships in 3-10 days

0
