ST 121 E (961830001-00) - Husqvarna 21" Snow Blower (2011-06) FRAME Parts Diagram

21" Snow Blower

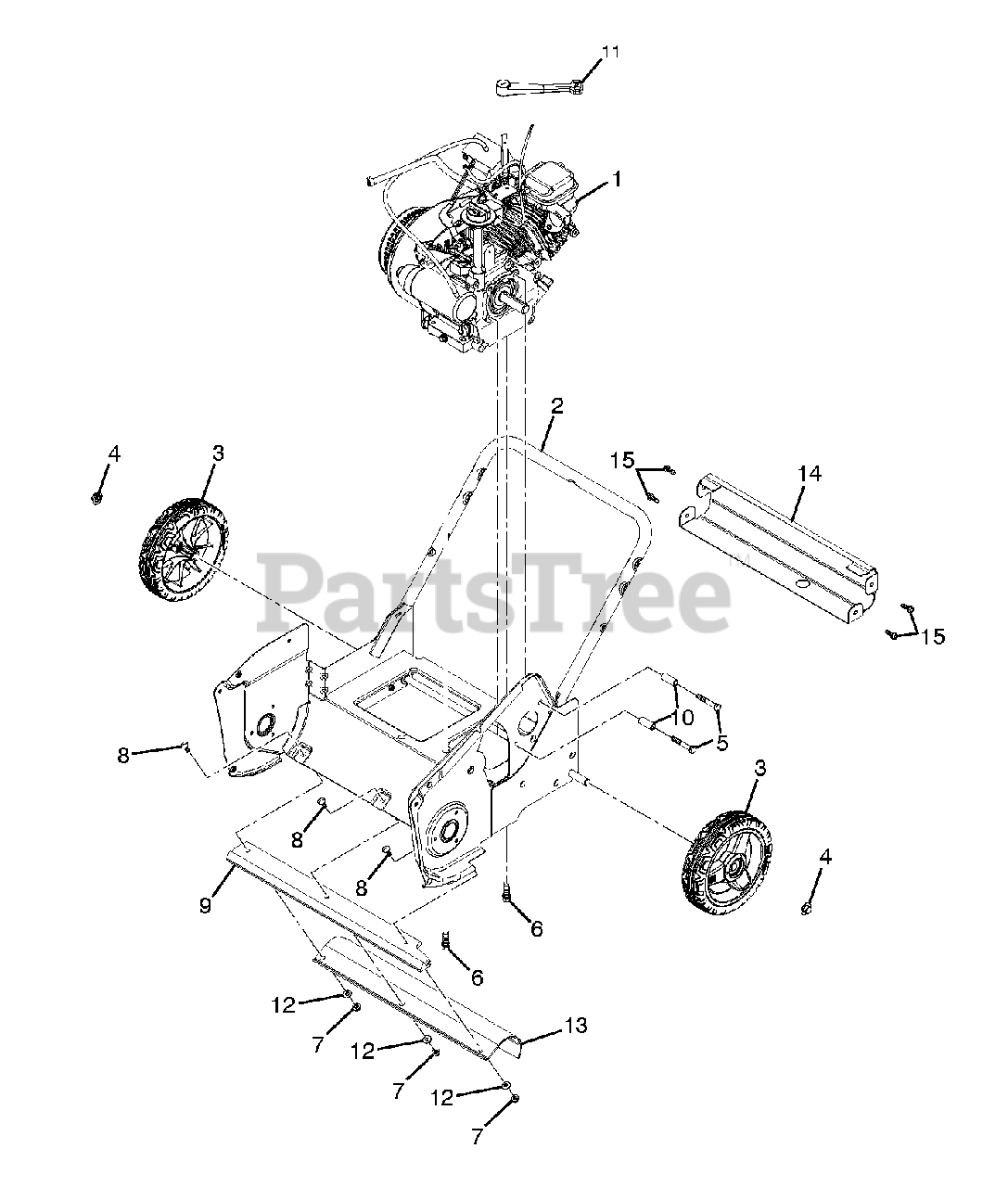

FRAME Parts Diagram

  • Title

1

Husqvarna 532442159

ENGINE.LCT.208CC.ESTART.W/ALT

$377.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532444723

FRAME.WELDMENT.GREY

$145.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532442825

WHEEL.8".GRAY.HUSQ.BUSHING.CEN

$

$

Not available

4

Husqvarna 532435417

NUT.PUSH.AXLE.0.5IN

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532435578

SCREW. 5/16-24 X 2.00"HHCS

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 872110407

BOLT.CARRIAGE.1/4-20 X 7/8

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532442942

BAR.SCRAPER
(Superseded to 580502601)

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532434857

SPACER.ENGINE

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532434874

LEVER.CHOKE

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532442146

SKIRT.SCRAPPER-SSST

$21.99

$

In Stock, only 4 left!

0

14

Husqvarna 532443423

SUPPORT.SSST.REAR.FRAME.GREY

$78.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532442250

SCREW.PAN.HD.TORX.1/4-20X.750

$6.49

$

Usually ships in 3-10 days

0
