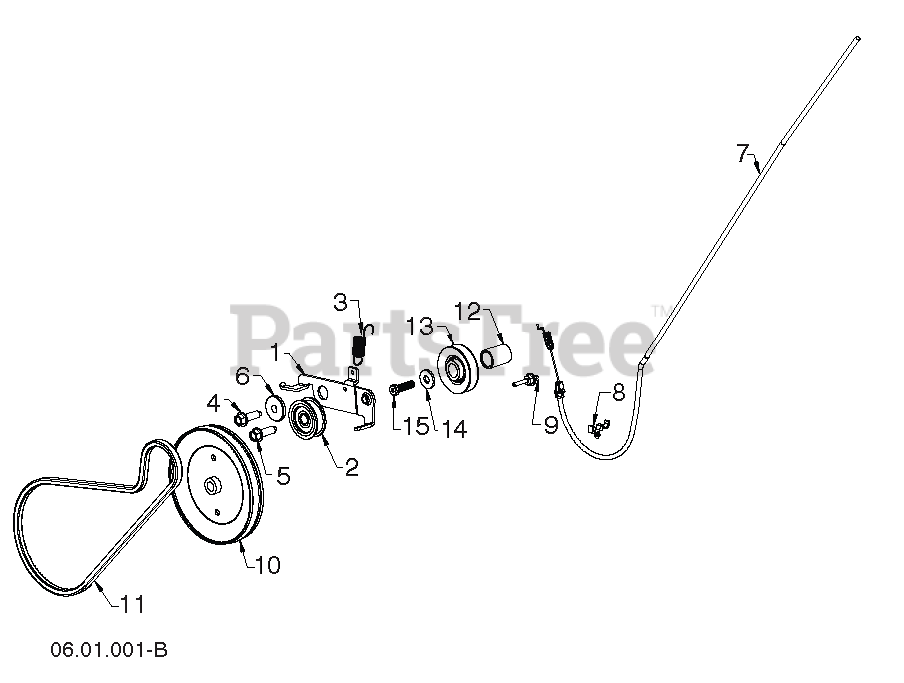

ST 131 (961830003-02) - Husqvarna 21" Snow Blower (2017-01) DRIVE Parts Diagram

21" Snow Blower

DRIVE Parts Diagram

  • Title

2

Husqvarna 532166043

IDLER PULLEY

$39.99

$

In Stock, Qty 5

0

4

Husqvarna 817060620

SCREW.3/8-16

Note: TORQUE 13-18 FT-LBS

$7.49

$

In Stock, Qty 19

0

15

Husqvarna 532430817

BOLT, SCKT HD 3/8-24 X 1 .25

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

1

Husqvarna 580855301

ARM.IDLER.SINGLE.STAGE.SNOW.BL

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532443018

CABLE.CLUTCH.SSST.SHORT

$28.99

$

In Stock, only 2 left!

0

3

Husqvarna 532434859

SPRING.EIDLER.PULLEY.RETURN

$

$

Not available

11

Husqvarna 532437261

BELT.4L.1/2X35

$29.99

$

In Stock, Qty 6

0

9

Husqvarna 532434502

KEEPER.ENGINE.BELT

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

10

Husqvarna 532435383

PULLEY.DRIVEN

$41.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 817060620

SCREW.3/8-16

Note: TORQUE 22-27 FT-LBS

$7.49

$

In Stock, Qty 19

0

13

Husqvarna 532426490

PULLEY.ENG.TRACTION

$14.99

$

In Stock, only 2 left!

0

12

Husqvarna 532434860

SPACER.ENGINE.CRANK

$3.99

$

Usually ships in 3-10 days

0
