ST 1332 S (1695053) - Frontier 32" Snow Thrower (2006) Engine and Frame Group - Steerable Parts Diagram

32" Snow Thrower

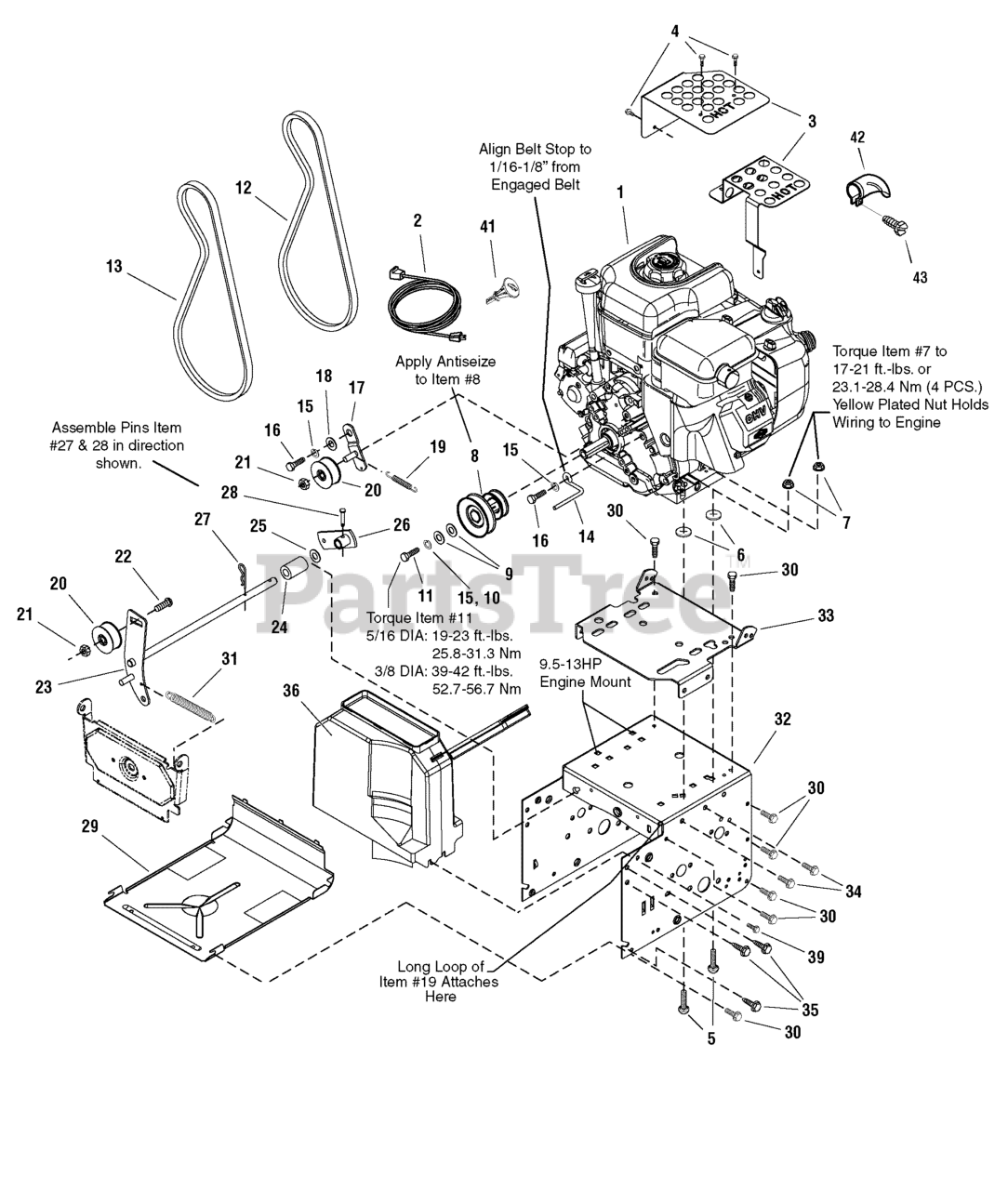

Engine and Frame Group - Steerable Parts Diagram

  • Title

1

ENGINE, 10.5HP B&S Powerbuilt *

Note: (Model # 20E1140114E1)

$

$

Not available

1

ENGINE, 11.5HP B&S Intek *

Note: (Model # 21C2140111E1)

$

$

Not available

1

ENGINE, 13HP B&S Intek *

Note: (Model # 21A4140115E1)

$

$

Not available

2

Murray MT1724064

CORD, Electric Start

$

$

Currently unavailable

3

Murray MT1725664A

GUARD, Muffler

$

$

Currently unavailable

4

Murray MT1929477

SCREW, Hex Washer Head Taptite

$

$

Currently unavailable

5

Murray MT002X97

CARRIAGE BOLT

$

$

Currently unavailable

6

Murray MT028X76

NUT, Speed

$

$

Currently unavailable

7

Murray MT2831277

NUT, Hex Flange, 5/16-18 Whiz Lock Small

$

$

Currently unavailable

8

Murray MT1501109

PULLEY, Engine

$

$

Currently unavailable

9

Murray MT1922755

WASHER, 3/8

$

$

Currently unavailable

10

Murray MT1916965

LOCKWASHER, Spring 3/8

$

$

Currently unavailable

11

Murray MT1960428

CAPSCREW, Hex Head, 3/8-24 x 1-1/4 G8

$

$

Currently unavailable

12

Murray MT1733324

V-BELT, Drive

$

$

Currently unavailable

13

Murray MT1733507

V-BELT, Auger

$

$

Currently unavailable

14

Murray MT1733014

STOP, Belt

$

$

Currently unavailable

15

Murray MT1917356

LOCKWASHER, Spring 5/16

$

$

Currently unavailable

16

Murray MT1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5

$

$

Currently unavailable

17

Murray MT1501112 YZ

IDLER BRACKET ASSEMBLY, Drive Belt

$

$

Currently unavailable

18

Murray MT1501065

BUSHING, Idler Bracket

$

$

Currently unavailable

19

Murray MT53704

SPRING, Extension Idler

$

$

Currently unavailable

20

Murray MT1502120

IDLER, Plastic Ball Bearing

$

$

Currently unavailable

21

Murray MT1917421

NUT, Hex Jam, 3/8-16

$

$

Currently unavailable

22

Murray MT585781

CARRIAGE BOLT, 3/8-16 x 1-1/4

$

$

Currently unavailable

23

Murray MT1501628YZ

IDLER ASSEMBLY, Auger

$

$

Currently unavailable

24

Murray MT1502041

SPACER, Auger Idler

$

$

Currently unavailable

25

Murray MT1960027

WASHER, 1/2

$

$

Currently unavailable

26

Murray MT1733626

BRACKET & HUB ASSEMBLY, Spring

$

$

Currently unavailable

27

Murray MT711682

PIN, Hair

$

$

Currently unavailable

28

Murray MT761761

PIN, Clevis

$

$

Currently unavailable

29

Murray MT722067A

PANEL, Bottom

$

$

Currently unavailable

30

Murray MT1927429

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8

$

$

Currently unavailable

31

Murray MT165X159

SPRING, Extension Auger Idler

$

$

Currently unavailable

32

Murray MT727243F

FRAME BOX

$

$

Currently unavailable

33

Murray MT1733583F

PLATE, Engine Mount

$

$

Currently unavailable

34

Murray MT1924856

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2

$

$

Currently unavailable

35

Murray MT1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

$

$

Currently unavailable

36

Murray MT1732486

COVER, Belt w/Toolbox Includes Decal

$

$

Currently unavailable

39

Murray MT26X306

SCREW, Hex

$

$

Currently unavailable

41

Murray 695756

KEY, Briggs Engine
(Superseded to 794696)

$8.49

$

In Stock, Qty 20+

0

42

Murray MT697816

DEFLECTOR, Muffler

$

$

Currently unavailable

43

Murray MT810140

SCREW

$

$

Currently unavailable
