ST 151 (961810014-00) - Husqvarna 21" Snow Blower (2014-06) ENGINE Parts Diagram

21" Snow Blower

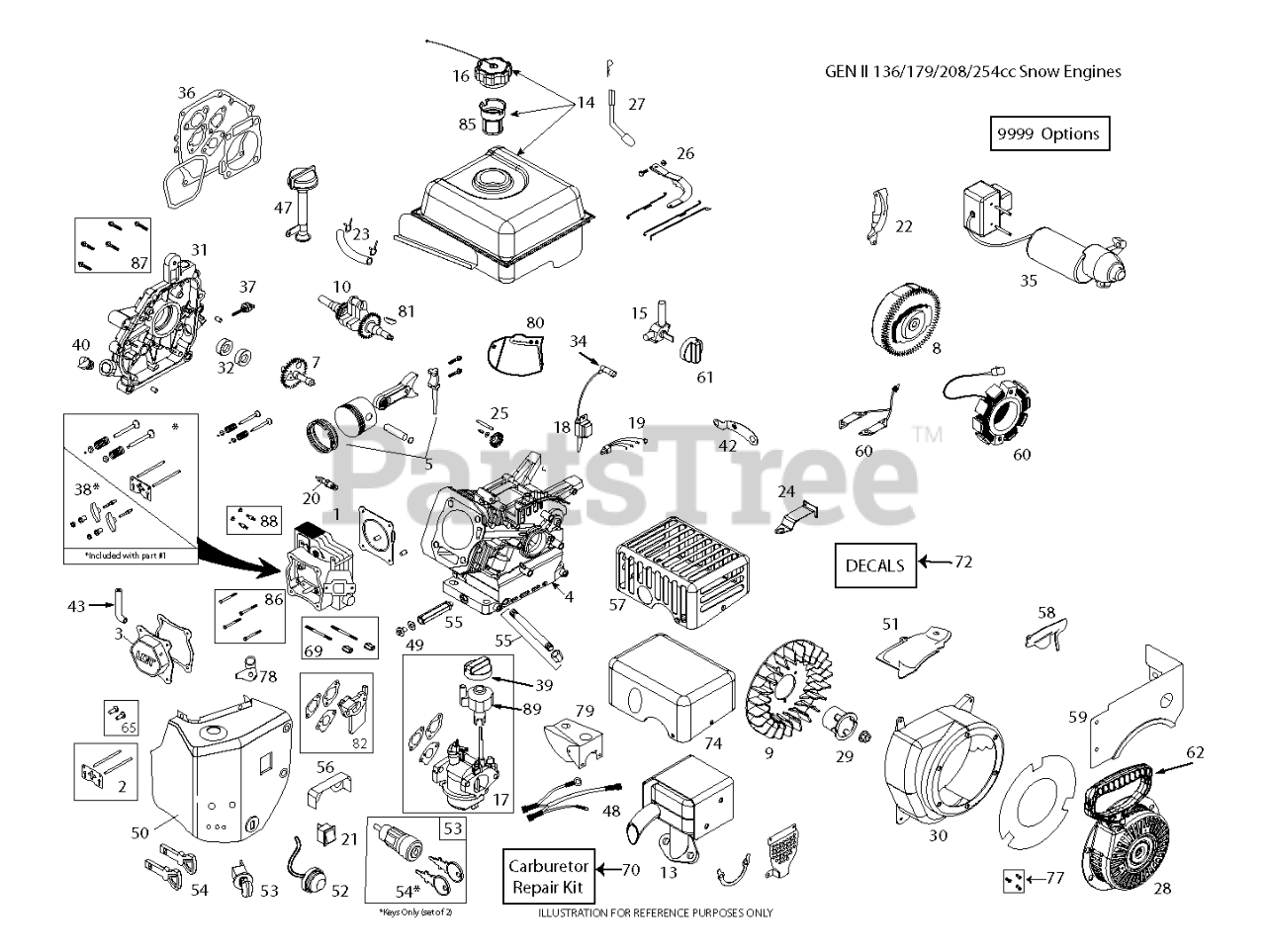

ENGINE Parts Diagram

  • Title

1

Husqvarna 587176801

CYLINDER HEAD LCT 178 INCLUDES

$569.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$51.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587176901

VALVE COVER LCT 179/208

$59.99

$

Usually ships in 3-10 days

0

4

Husqvarna 587177001

CYLINDER ASSY LCT 179
(Superseded to 585742605)

$

$

Not available

5

Husqvarna 587177101

PISTON & ROD ASM LCT 136
(Superseded to 587175801)

$

$

Not available

7

Husqvarna 587177201

CAMSHAFT MCR LCT 179 INCLUDES
(Superseded to 587176001)

$65.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532429236

FLYWHL.ASSY.MANUL.SK2081700

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532420586

FLYWHEEL FAN 420586

$14.99

$

In Stock, only 2 left!

0

10

Husqvarna 587176101

CRANKSHAFT KEYED LCT 179

$

$

Not available

13

Husqvarna 587177301

MUFFLER KIT LCT 179
(Superseded to 587737801)

$65.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532436564

FUEL.TK.ASSY.GENII.SKSN0311.1

$179.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532424942

FUEL CAP OVERSIZED CLICK STYLE

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 587177501

CARBURETTOR L17D GEN 2 LCT 179

$155.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532443934

208CC IGN COIL (STD)

$77.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424939

SPARK.PLUG(2083810)

$15.99

$

In Stock, Qty 5

0

22

Husqvarna 587177601

FLYWHEEL SHIELS.LCT 136 MANUAL

$

$

Not available

23

Husqvarna 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 587177701

BRACKET SPEED CONTROL LCT

$

$

Not available

25

Husqvarna 532429646

GOVENOR.GEARS ASM(SK2082900)

$9.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532438003

ARM.ASM.GOVNR.LCT.136CC

$

$

Not available

27

Husqvarna 532438004

SHAFT.GOVERNOR.LCT.136CC

$

$

Not available

28

Husqvarna 532424962

RECOIL.ASSY(HEX-BLACK)SNOW

$47.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532424966

STARTER.CUP.SMALL(SKSN-0601.1)

$20.99

$

Usually ships in 3-10 days

0

30

Husqvarna 587177801

BLOWER HOUSING LCT 179
(Superseded to 587737901)

$

$

Not available

31

Husqvarna TBD

Note: (587 17 79-02) CRANKCASE COVER

$

$

Not available

32

Husqvarna 532429599

SEAL KIT (2 PCS)

$21.99

$

In Stock, only 2 left!

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$21.99

$

In Stock, only 2 left!

0

36

Husqvarna 532438013

KIT.GASKET.LCT.136CC

$

$

Not available

37

Husqvarna 532420961

DIPSTICK SMALL

$14.99

$

In Stock, only 2 left!

0

38

Husqvarna 532438010

KIT ROCKER.ARM.LCT

$

$

Not available

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.99

$

In Stock, only 2 left!

0

43

Husqvarna 580353401

TUBE.BREATHER.LCT.208

$4.99

$

In Stock, only 3 left!

0

47

Husqvarna 587178001

TUBE HIGH OIL FILL LCT 179

$

$

Not available

48

Husqvarna 532429262

WIRE.HARNESS.SNOW
(Superseded to 532429284)

$35.99

$

In Stock, only 3 left!

0

49

Husqvarna 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532436561

HEATER.BOX.ASY-GEN2

$179.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532437119

SHIELD.CYLINGER.LCT.SKSN0608.1
(Superseded to 583516301)

$53.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532424949

PRIMER.BULB.WITH HOSE (SNOW)
(Superseded to 595079601)

$

$

Not available

53

Husqvarna 587140001

KEY SWITCH ROTARY.LCT.W/2 KEYS

$

$

Not available

54

Husqvarna 587140101

KEY SET.ROTARY.LCT

$

$

Not available

55

Husqvarna 587154401

OIL PIPE DRAIN LCT 254

$37.99

$

In Stock, only 1 left!

0

57

Husqvarna 587178101

MUFFLER SHIELD LCT CE COMP 136

$

$

Not available

58

Husqvarna 587178201

GOVERNOR SHIELD LINKAGE LCT

$

$

Not available

59

Husqvarna 532436562

FUEL.TNK.SKRT.GENII.SKSN0103.1

$71.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532432752

FUEL KNOB-SNOW

$9.99

$

In Stock, Qty 15

0

62

Husqvarna 532424968

STARTER.GRIP.SNOW.LCT.SKSN0603
(Superseded to 532443899)

$21.99

$

In Stock, only 2 left!

0

65

Husqvarna 581372701

TAPPET KIT.LCT.SK1361005.1 136

$

$

Not available

69

Husqvarna 532424951

CARB.STUDS & COUPLING KIT.SNOW

$9.99

$

In Stock, only 2 left!

0

70

Husqvarna 580353601

CARB.REPAIR.KIT.LCT.SK9900.2
(Superseded to 580353602)

$59.99

$

In Stock, only 1 left!

0

72

Husqvarna 587178301

ARIENS 136CC PW7 (ALL) DECAL

$

$

Not available

74

Husqvarna 587178501

MUFFLER COVER HEAT SHIELD LCT

$

$

Not available

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, Qty 5

0

78

Husqvarna 581459301

BRACKET

$8.49

$

Usually ships in 3-10 days

0

79

Husqvarna 585773701

COVER.CARBURETOR.SNOW
(Superseded to 595012701)

$14.99

$

Usually ships in 3-10 days

0

80

Husqvarna 587178601

SHIELD TOP LCT 179

$

$

Not available

81

Husqvarna TBD

Note: (582 09 72-02) WOODRUFF KEYS

$

$

Not available

82

Husqvarna 585020504

SPACER.CARBURETOR.136CC.LCT

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 583025601

DECAL.HOOD.RH.

$

$

Not available

86

Husqvarna 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$7.49

$

Usually ships in 3-10 days

0

87

Husqvarna 586327101

KIT.BOLT.CRANKCASE.COVER.136CC

$

$

Not available

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$2.49

$

In Stock, only 4 left!

0

9999

Husqvarna 586326301

HIGH.ALTITUDE.JET.6000FT ANDUP

$8.49

$

Usually ships in 3-10 days

0
