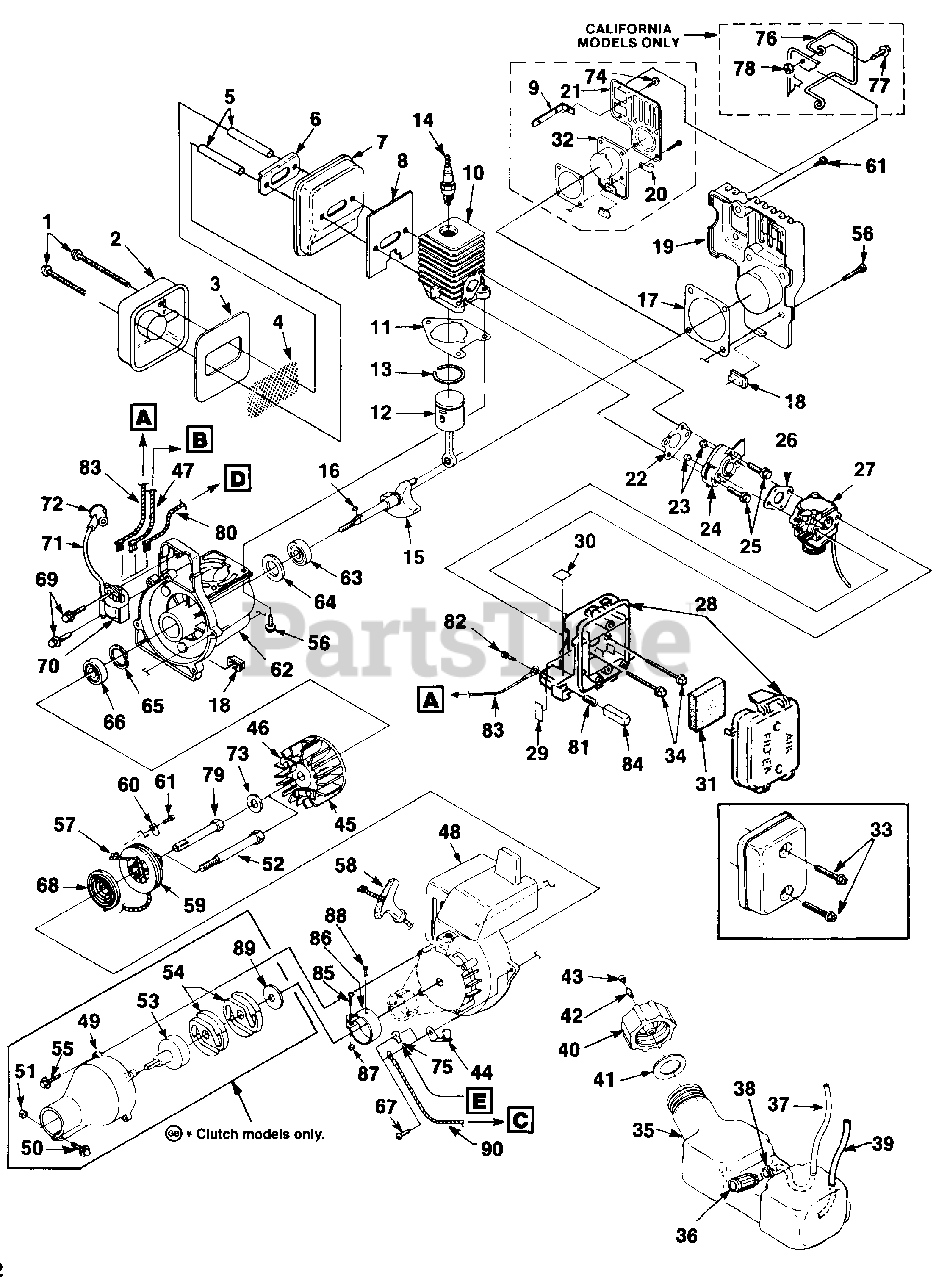

ST 155 (20544-AUT) - Homelite String Trimmer Engine & Peripherals Parts Diagram

String Trimmer

Engine & Peripherals Parts Diagram

  • Title

1

Homelite 88060

SCREW- (10-24 x 2 1/2")
(Superseded to 660673001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite A98780

COVER- Muffler
(Superseded to A04786)

$

$

Not available

3

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

5

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

6

Homelite 98783

PLATE- Reinforcing

$

$

Not available

7

Homelite A01323

BODY- Muffler
(Superseded to A04837)

$

$

Not available

8

Homelite 98786B

GASKET- Muffler

$

$

Currently unavailable

9

Homelite 00179

BRACKET-

$

$

Not available

10

Homelite A00108

CYLINDER
(Superseded to UP07145A)

$43.99

$

In Stock, only 1 left!

0

11

Homelite 03703A

CYLINDER- Gasket
(Superseded to UP03857)

$

$

Not available

12

Homelite A01036A

PISTON & ROD ASSEMBLY

$

$

Currently unavailable

13

Homelite 96935

RING- Piston
(Superseded to UP03838)

$

$

Not available

14

Homelite 96169S

SPARK PLUG (DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 1 left!

0

Homelite 79252

SPARK PLUG (RDJ7Y) (Int'l)
(Superseded to UP03883)

$3.49

$

In Stock, only 1 left!

0

15

Homelite 987582

CRANKSHAFT (Model 145 & 155)

$

$

Not available

Homelite 987583

CRANKSHAFT (Models 175,175C,175BC,185,185C,285,275,285BC,385,385C,

$

$

Currently unavailable

16

Homelite 69250

KEY- Woodruff

$

$

Not available

17

Homelite 98767A

GASKET- Crankcase cover

$

$

Not available

18

Homelite 98792

BUMPER- Rubber

$1.49

$

In Stock, only 3 left!

0

19

Homelite 01023B

COVER- Crankcase
(Superseded to A00858)

$8.49

$

In Stock, only 1 left!

0

20

Homelite 98752

CLAMP

$

$

Not available

21

Homelite 98934

SHIELD

$

$

Not available

22

Homelite 98765B

GASKET- Heat dam

$4.99

$

Usually ships in 3-7 days

0

23

Homelite 81208

NUT (10-24)

$

$

Not available

24

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

25

Homelite 825491

SCREW- Taptite (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

26

Homelite 98766A

GASKET- Carburetor
(Superseded to 900994004)

$

$

Not available

27

Homelite A03003

CARBURETOR- (Zama)

$

$

Currently unavailable

Homelite A03002

CARBURETOR- (Walbro)

$

$

Currently unavailable

28

Homelite A01440A

AIR FILTER BOX
(Superseded to A04707A)

$

$

Not available

29

Homelite 00772

DECAL- Choke, Run

$

$

Not available

30

Homelite 98943

DECAL- Push-Hold

$

$

Not available

31

Homelite D98760A

FILTER- Air

$

$

Currently unavailable

32

Homelite 98754B

COVER- Crankcase

$

$

Currently unavailable

33

Homelite 82368

SCREW- Plastite (8 x 3/4")
(Superseded to PS00055)

$

$

Not available

34

Homelite 82542

SCREW (10-24 x 2 1/4")

$2.99

$

Usually ships in 3-7 days

0

35

Homelite A01441

TANK- Fuel

$

$

Currently unavailable

36

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

37

Homelite 9477232

TUBING- Rubber (8")
(Superseded to UP03905)

$

$

Not available

38

Homelite 98268

WIRE CLAMP
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0

39

Homelite 0143932

TUBING- Rubber (8")
(Superseded to UP03825)

$2.99

$

In Stock, only 4 left!

0

40

Homelite A00982A

FUEL CAP ASSEMBLY

$

$

Currently unavailable

41

Homelite 98805A

GASKET- Fuel cap

$

$

Not available

42

Homelite 03134

VALVE- Duckbill
(Superseded to 560955001)

$1.99

$

In Stock, Qty 10

0

43

Homelite 98913

FlLTER-Cap
(Superseded to PS98913)

$2.99

$

Usually ships in 3-7 days

0

44

Homelite A98808

BRACKET-Cable

$

$

Currently unavailable

45

Homelite A95007

ROTOR
(Superseded to UP04242)

$

$

Not available

46

Homelite A70285E

KIT- Starter pawl

$59.99

$

Usually ships in 3-7 days

0

47

Homelite A98918

LEAD- Electrical (Models 175BC,185,185C,285BC,385-UT-15040&UT10540-A,

$

$

Not available

48

Homelite A02576B

HOUSING- Engine (Clutch Models Only)

$

$

Currently unavailable

Homelite A02575

HOUSING- Engine (Non-Clutch Models)

$

$

Currently unavailable

49

Homelite A02396A

TUBE ADAPTOR

$

$

Currently unavailable

50

Homelite 88054

SCREW (10-24 x 1 1/4")
(Superseded to UP04267)

$

$

Not available

51

Homelite 81208

NUT(10-24)

$

$

Not available

52

Homelite 01547

ADAPTOR- Clutch (Clutch Models Only)
(Superseded to 01547A)

$

$

Not available

53

Homelite A02727

CONNECTOR & DRUM
(Superseded to UP04104)

$

$

Not available

54

Homelite 00242

CLUTCH

$

$

Not available

55

Homelite 88052

SCREW (10-24 x 7/8")

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 82538

SCREW (10-24 x 3/4")

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 9789902

ROPE- Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, Qty 6

0

58

Homelite 02264

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

59

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$1.99

$

In Stock, Qty 5

0

60

Homelite 98791

BRACKET- Retaining

$

$

Not available

61

Homelite 82541

SCREW- Plastite (10 x 1/2")

$1.49

$

In Stock, Qty 5

0

62

Homelite A00107A

CRANKCASE ASSEMBLY

$

$

Currently unavailable

63

Homelite 98797

BEARING- Ball

$

$

Not available

64

Homelite 98800

SEAL

$1.49

$

Usually ships in 3-7 days

0

65

Homelite 98799

RING- Retaining

$2.99

$

In Stock, only 1 left!

0

66

Homelite 98798

BALL- Bearing
(Superseded to UP05589)

$8.49

$

Usually ships in 3-7 days

0

67

Homelite 82538

SCREW- Taptite (10-24 x 3/4")

$1.49

$

Usually ships in 3-7 days

0

68

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

69

Homelite 82540

SCREW- Taptite (8-32 x 1")

$1.49

$

Usually ships in 3-7 days

0

70

Homelite 94711CS

MODULE- Ignition

$

$

Not available

71

Homelite 69326

LEAD- High-Tension

$

$

Not available

72

Homelite A33055

TERMINAL- High-Tension

$

$

Not available

73

Homelite 84065

WASHER- Flat (5/16") (Non-Clutch Models)
(Superseded to UP04241)

$

$

Not available

74

Homelite 88077

SCREW- Hex sems (10-24 x 3/8")
(Superseded to PS05243)

$

$

Not available

75

Homelite 02851

TERMINAL (Models 385--UT15040B, UT15040C, & UT15040D) (Model 485)

$

$

Not available

76

Homelite A00254

WIRE GUARD KIT (California Models Only)
(Superseded to A00254A)

$

$

Not available

77

Homelite 88049

SCREW- Hex sems (10-24 x 1/2")

$

$

Not available

78

Homelite 81208

NUT- (10-24)

$

$

Not available

79

Homelite 98795A

CONNECTOR- Drive (Non Clutch Models)

$

$

Not available

80

Homelite A00681

LEAD- Electrical (Model 385--UT15040B, UT15040C, UT15040D & Model 485)

$

$

Not available

81

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 82513

SCREW- Thread Forming

$1.49

$

In Stock, Qty 5

0

83

Homelite A98809

LEAD- Electrical (Models 145, 155, 175, 175C, 285, HGT & GST)
(Superseded to A07238)

$

$

Not available

84

Homelite 98769

BUTTON- Switch

$2.99

$

Usually ships in 3-7 days

0

85

Homelite 82268

SCREW- Hex sems (10-24 x 3/8")

$

$

Not available

86

Homelite 98802A

CLAMP
(Superseded to UP04704)

$

$

Not available

87

Homelite 97574

NUT- Square

$

$

Not available

88

Homelite 82455

SCREW

$

$

Not available

89

Homelite 98929A

WASHER- Clutch
(Superseded to 638090001)

$1.49

$

Usually ships in 3-7 days

0

90

Homelite A98919

LEAD- Ground (Models 185 & 385--UT15040 & UT15040A)

$

$

Currently unavailable
