ST 155 V (UT-20717) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

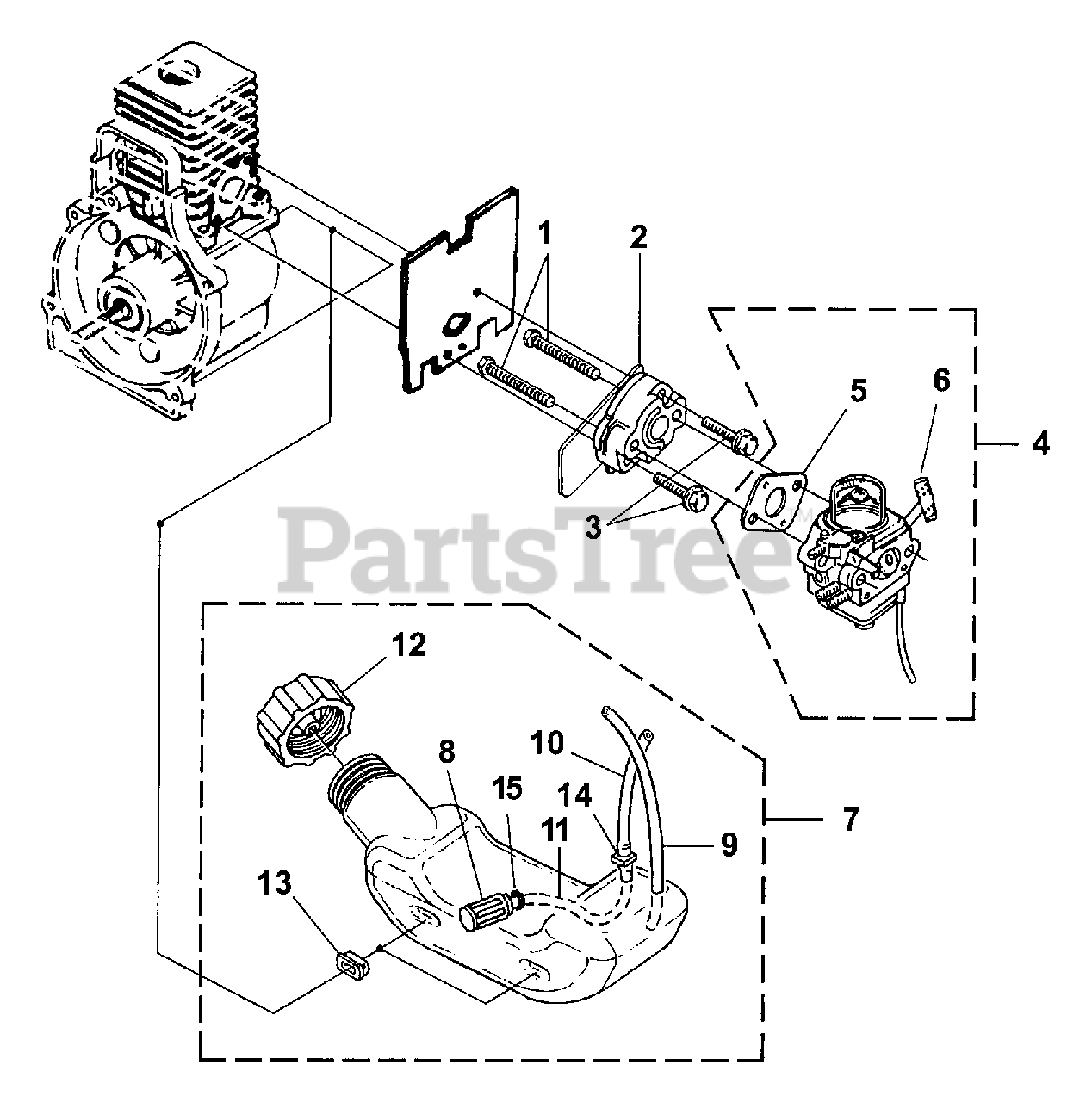

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 04474

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

2

Homelite 08661

HEAT DAM

$

$

Not available

3

Homelite 093221

SCREW-Sems (10-24 X 1")
(Superseded to 660662001)

Note: Torque Specs 35-45 In/Lbs 4.0-5.1 Nm; Required Loctite Red 262; Also included in Short block assembly

$

$

Not available

4

Homelite UP00608

CARBURETOR KIT
(Superseded to UP00608A)

$

$

Not available

5

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite PS00236

LEVER-Choke (Zama)
(Superseded to UP04278)

$

$

Not available

7

Homelite UP00020

FUEL TANK ASSY.
(Superseded to UP00020A)

$

$

Not available

8

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

9

Homelite 0143918

TUBING-Rubber

$

$

Not available

10

Homelite 0143910

TUBING-Rubber

$1.99

$

In Stock, Qty 8

0

11

Homelite 9477213

TUBING-Rubber

$

$

Not available

12

Homelite UP00106

FUEL CAP
(Superseded to 300758006)

$

$

Not available

13

Homelite 98792

BUMPER-Rubber

$1.49

$

In Stock, only 3 left!

0

14

Homelite 02067

FITTING-Inline

$

$

Not available

15

Homelite 98268

CLAMP
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0
